SECURING ACCESSORY CABLES
Before securing the Accessory Cables, please review the
"Identifying Trolling Motor Features and Their Associated Cables"
section of this document. When identifying features, it is very
important to secure the cables if two or more connections are
present below the Control Head. If only one cable is present below the Control Head, this installation was already completed on the trolling
motor from the factory. All Accessory Cables that will be used on the trolling motor must be routed and all connections secured before
completing the installation in this section. To review how Accessory Cables should be routed and connected, please review the "Dual
Spectrum CHIRP," "Built-in MEGA Down Imaging" and "Advanced GPS Navigation" sections of this document.
Securing Accessory Cables
NOTICE: If only one cable is present below the Control
Head, this installation is not applicable.
CAUTION
Failure to follow the recommended wire routing for installed features, if equipped, may cause damage to the product and void your
product warranty. Route cables away from pinch points or other areas that may cause them to bend in sharp angles. Routing the cables
in any way other than directed may cause damage to the cables by being pinched or severed. Do not over-tighten the clips as it may
damage the wires.
NOTICE: If replacement Clips (Part No. 2290844) are needed, they can be ordered online at the Minn Kota Parts Ordering Portal
at
minnkotomotors.com.

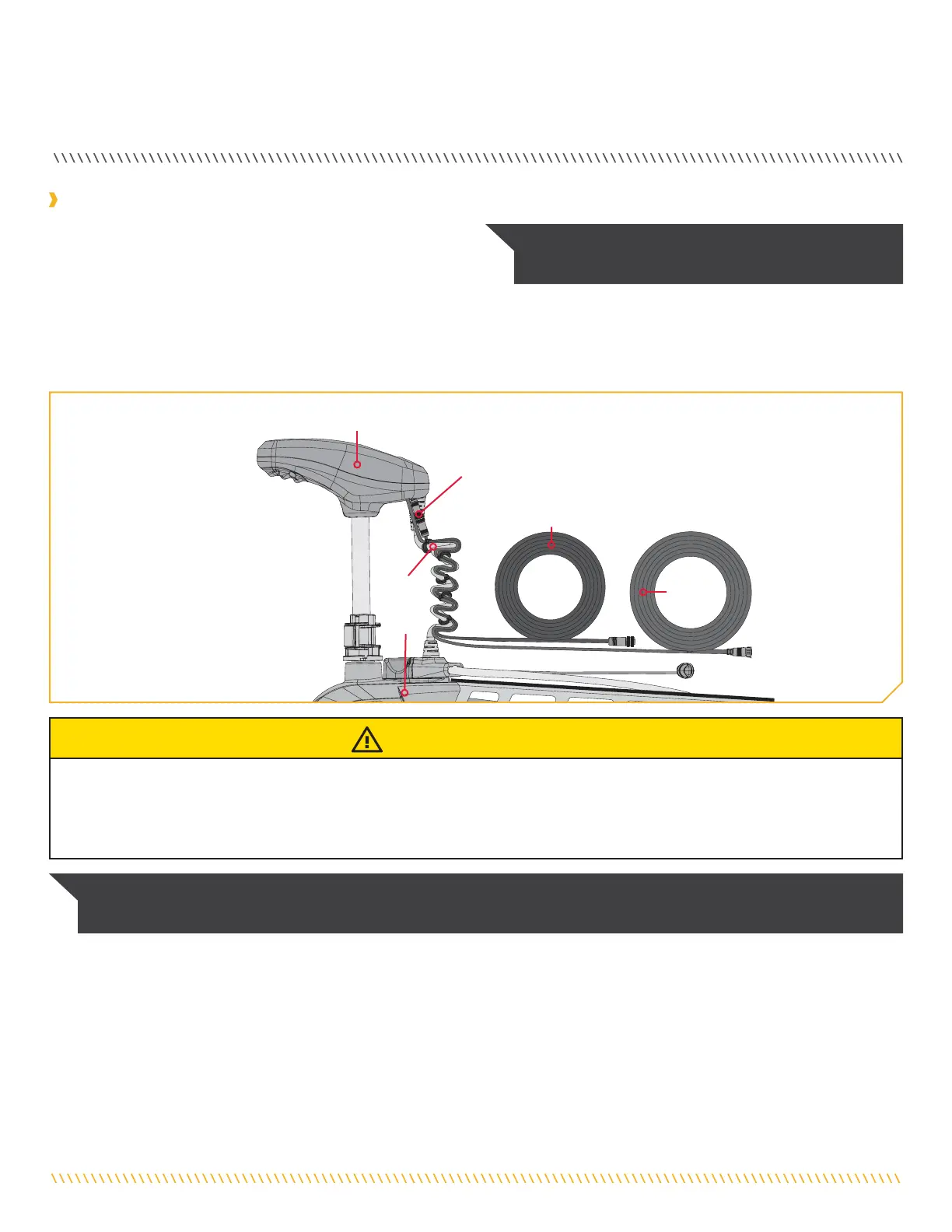

Control HeadControl Head
Coil Coil
CordCord
MountMount
Advanced GPS Advanced GPS
Ethernet ConnectorEthernet Connector
Sonar Sonar
CableCable
Ethernet CableEthernet Cable
To Next Page
