minnkotamotors.com | 41 ©2023 Johnson Outdoors Marine Electronics, Inc.

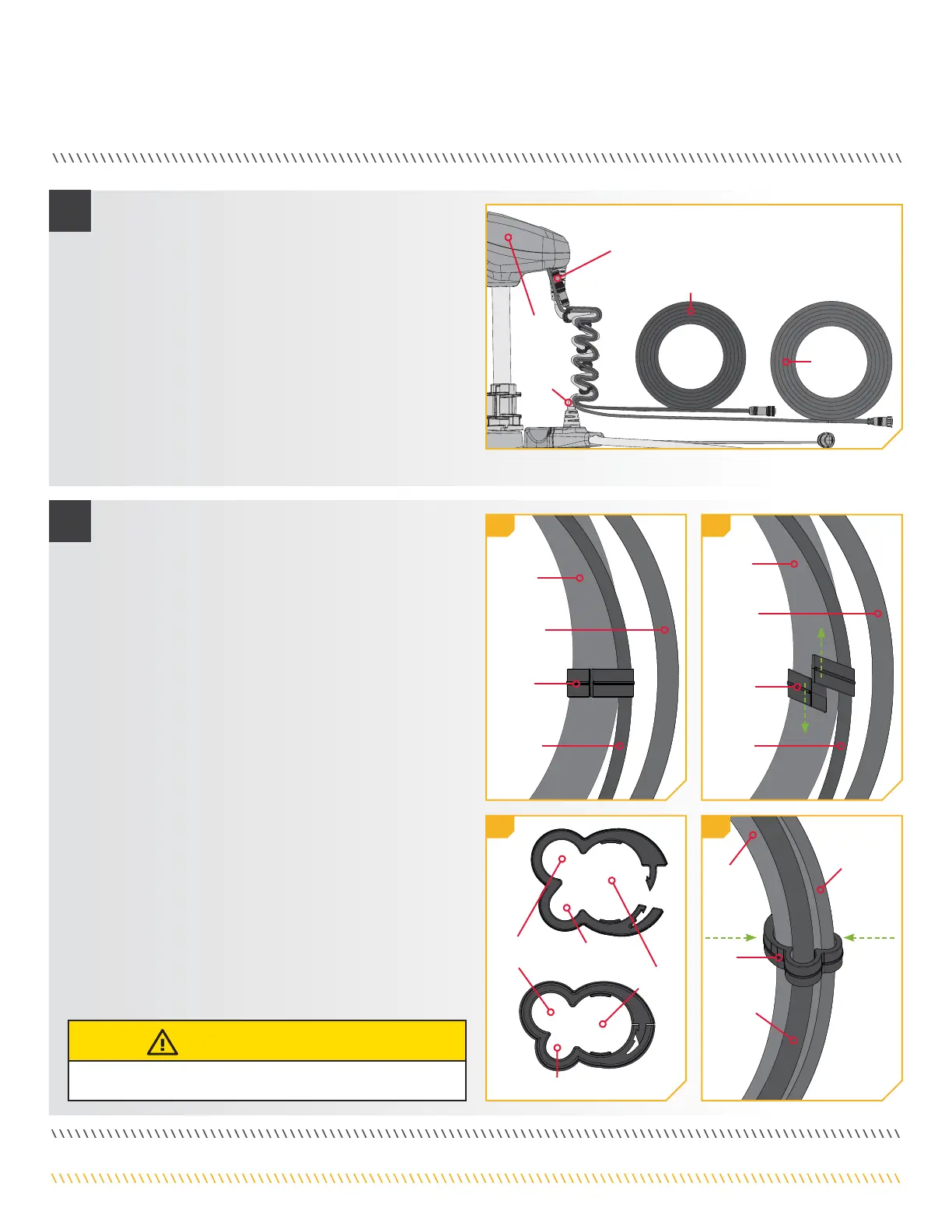

SECURING ACCESSORY CABLES
1
a. The Ultrex comes from the factory with the Sonar
Cable secured to the Coil Cord with five Clips. The
Clips are evenly spaced down the Coil Cord from the
Control Head to the Mount. To properly install the
Ethernet Cable, the Clips need to be opened and the
Ethernet Cable secured.
b. Begin with the Trolling Motor in the deployed position.
Locate all 5 Clips along the Coil Cord. Make sure
that the Ethernet Cable is connected. Review the
"Advanced GPS Navigation" section of this document
if unsure that the Ethernet Cable is properly routed
and connected. The Ethernet Cable should run
parallel to the Sonar Cable down the Coil Cord.
2
c. Locate the first Clip below the Control Head. It
should be securing together the Coil Cord and the
Sonar Cable.
d. To open the Clip, push each side of the Clip in
opposite directions so that the hook holding the Clip
together unlatches.
e. Look at the geometry of the Clip and notice that the
lobes are molded for a specific wire size. With the
Ethernet Cable running parallel to the Sonar Cable
and Coil Cord, place the Ethernet Cable in the Clip
with the Coil Cord and Sonar Cable. Make sure that
the Ethernet Cable sits in the appropriate Lobe of
the Clip.
f. Make sure the cables are running parallel and
are not twisted or kinked. With all of the Cables
captured, press the Clip securely closed.
g. Repeat the installation of the Ethernet Cable for
all five Clips. Make sure the cables are running
smoothly between all five Clips. At the end of the
installation, the Clips should be evenly spaced down
the Coil Cord and the cord should contain about one
Clip per coil on the Coil Cord.
Coil Coil
CordCord
Coil Coil
CordCord
Coil Coil
CordCord
Coil Coil
CordCord
Ethernet Ethernet
CableCable
Ethernet CableEthernet Cable
Sonar Sonar
CableCable
Sonar Sonar
CableCable
Sonar Sonar
CableCable
Sonar Sonar
CableCable
ClipClip
ClipClip
ClipClip
Ethernet Ethernet
CableCable
Ethernet Ethernet
CableCable
Ethernet Ethernet
CableCable
CAUTION
Do not over-tighten the Clips as it may damage the wires.
Control Control
HeadHead
Coil Coil
CordCord
Advanced GPS Advanced GPS
Ethernet ConnectorEthernet Connector
Sonar Sonar
CableCable
Ethernet CableEthernet Cable
2c
2d
2e
2f
To Next Page
