MINN KOTA ULTREX Installation Instructions

minnkotamotors.com | 43 ©2023 Johnson Outdoors Marine Electronics, Inc.

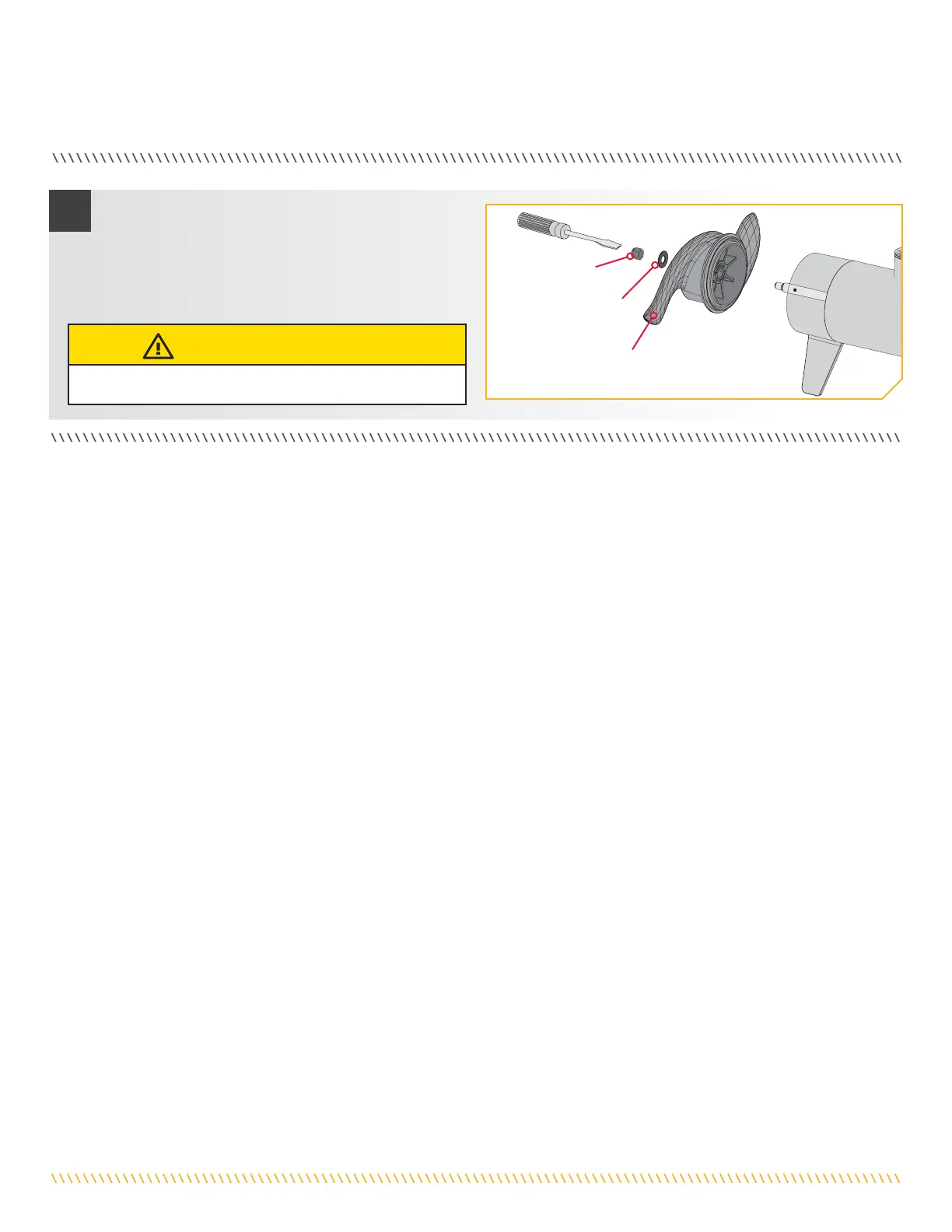

INSTALLING THE PROP
3
CAUTION
Do not over-tighten as this can damage the prop.
PropellerPropeller
Prop NutProp Nut
Prop WasherProp Washer
e. Holding the end of the Armature Shaft with a Flat
Blade Screwdriver, tighten the Prop Nut with a 9/16"
Box End or Open End Wrench.
f. Tighten the Prop Nut 1/4 turn past snug to
25-35 in-lbs.

MINN KOTA ULTREX Specifications

General

Thrust	80 lbs, 112 lbs
Voltage	24V, 36V
Steering	Electric Steer
Speed Control	Variable
i-Pilot Link GPS	Yes (Optional)
Lift Assist	Yes
Blade Material	Composite
Shaft Length	45", 52", 60"
Control	Foot Pedal
Integrated Sonar	MEGA Down Imaging, Universal Sonar 2
Battery Requirement	24V or 36V Deep Cycle Marine Battery
Weight	Varies by model
Deployment	Manual
Warranty	2 years
