Minox MD 7x42 C Instructions

17
Distance measurement

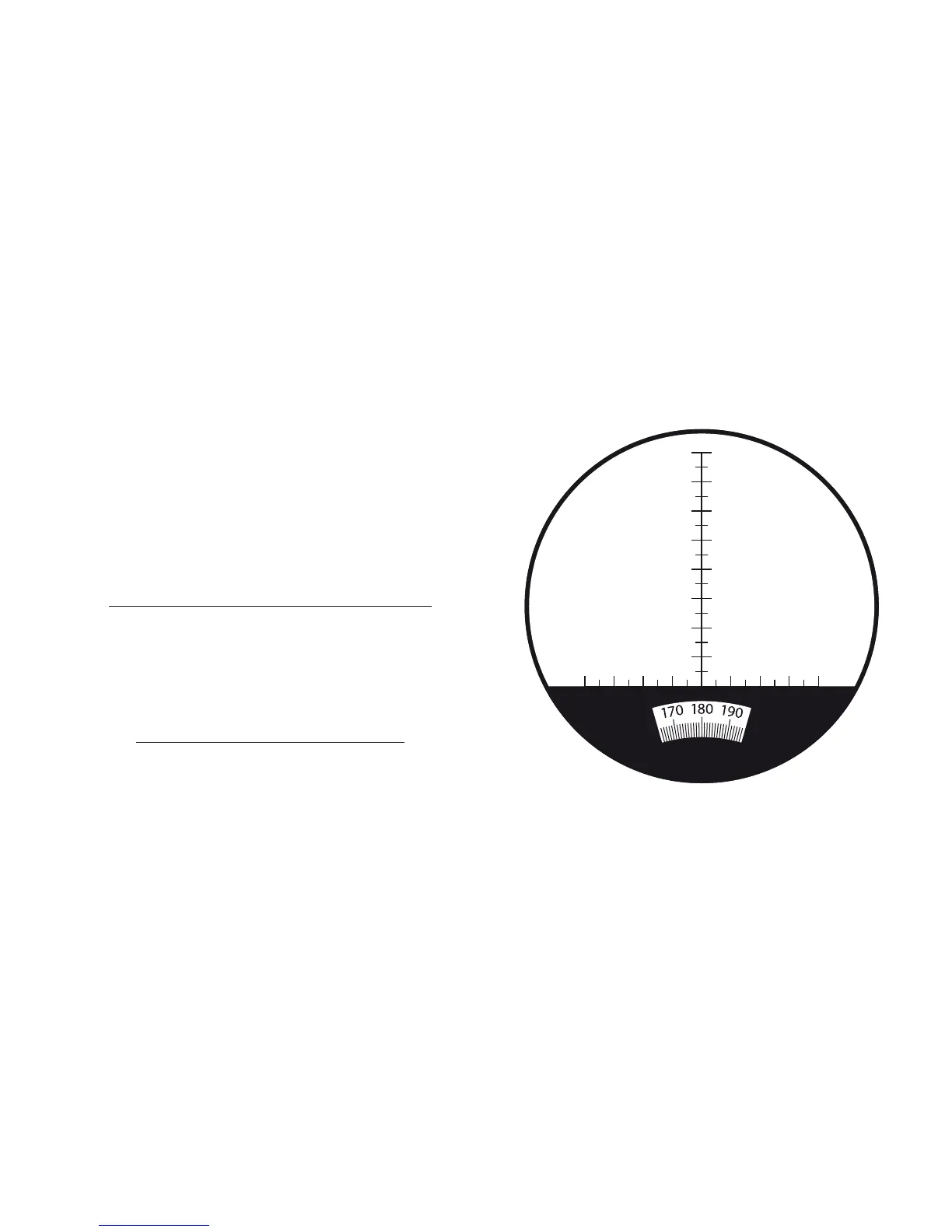

How to work the scaled graticule
for rangefinding
To measure distance by a simple formula
when height or hength is known:
Distance (in km) =
Height of target object (m)
Angular Elevation
1)
of target object
Distance (in km) =
Length of target object (m)
Azimut
2)
of target object
In practice, sizes (Height / Length) of observed
objects are known with reasonable accuracy
1)
Angular Elevation = Vertical Angle
2)
Azimut = Horizontal Angle
since they are often people, buildings and
vehicles.
40 4020 2010 1030 30
60
80
40
20

Minox MD 7x42 C Specifications

General

Exit pupil	6 mm
Eye relief	18 mm
Prism type	Roof
Field of view	113.4 - 1000 m
Magnification	7 x
Twilight factor	17.2
Objective diameter	42 mm
Apparent field of view	6.5 °
Operating temperature (T-T)	-20 - 50 °C
Waterproof	Yes
Waterproof up to	5 m

Weight and Dimensions

Depth	143 mm
Width	61 mm
Height	65 mm
Weight	370 g
