Minox MD 7x42 C Instructions

18
How to Measure the Angular
Elevation by the Vertical Scale Value
on the MIL Reticle

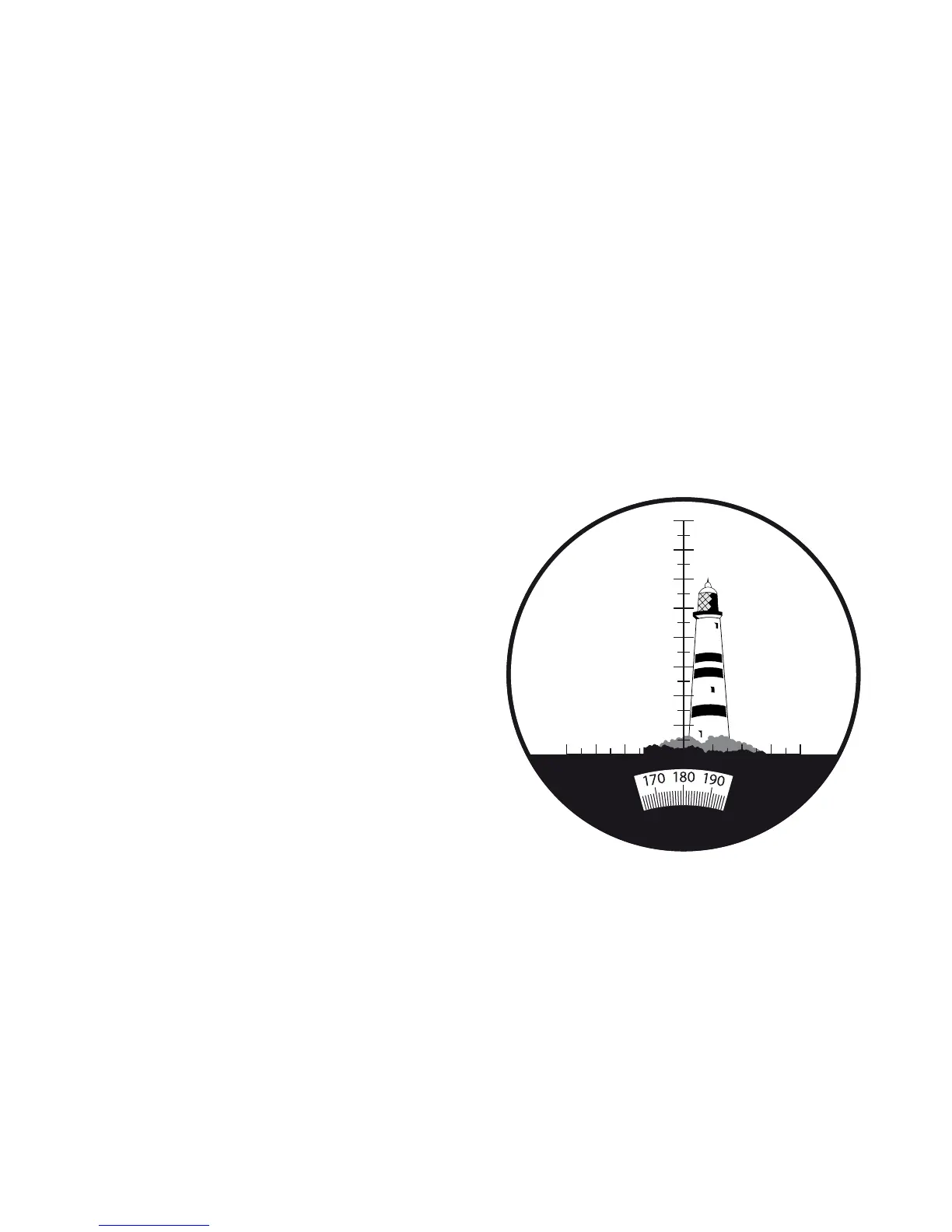

In the case of the Angular Elevation* of the
target object within the range of the vertical
scale value (70 mils), as in the figure showed,
firstly put the vertical scale Value ‚0‘ at the
foot of the lighthouse, then we could find
the Angular Elevation of the lighthouse at 60
MILs easily and directly.
In the case of the Angular Elevation of the
target object beyond the range of the Vertical
Scale Value (80 Mils), we should determine
it in stages.
*Angular measurement between two lines,
when one of them is surface line and another
is the line which connect a point on the sur-
face to the peak of the object is know as An-
gular Elevation of that object with reference
to the particular on the surface.
40 4020 2010 1030 30
60
80
40
20

Minox MD 7x42 C Specifications

General

Exit pupil	6 mm
Eye relief	18 mm
Prism type	Roof
Field of view	113.4 - 1000 m
Magnification	7 x
Twilight factor	17.2
Objective diameter	42 mm
Apparent field of view	6.5 °
Operating temperature (T-T)	-20 - 50 °C
Waterproof	Yes
Waterproof up to	5 m

Weight and Dimensions

Depth	143 mm
Width	61 mm
Height	65 mm
Weight	370 g
