Minox MD 7x42 C User Manual

25
Adjustments
Important note for wearers of glasses

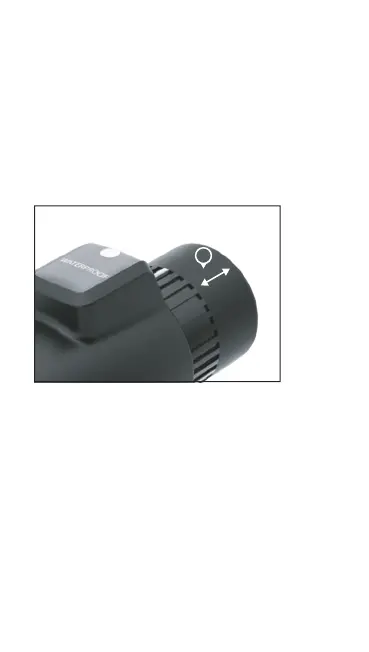

For users who wear glasses while using the monocular, turn the
eyecup (1) all the way to the right. Those who do not wear glasses,
turn the eyecup all the way to the left. This provides for a perfect
eye distance to the ocular lens, enabling a full field of view with-
out vignetting.
1

Minox MD 7x42 C Specifications

General

Exit pupil	6 mm
Eye relief	18 mm
Prism type	Roof
Field of view	113.4 - 1000 m
Magnification	7 x
Twilight factor	17.2
Objective diameter	42 mm
Apparent field of view	6.5 °
Operating temperature (T-T)	-20 - 50 °C
Waterproof	Yes
Waterproof up to	5 m

Weight and Dimensions

Depth	143 mm
Width	61 mm
Height	65 mm
Weight	370 g
