Minox MD 7x42 C User Manual

29
How to Measure the Angular Elevation by the Vertical Scale
Value on the MIL Reticle

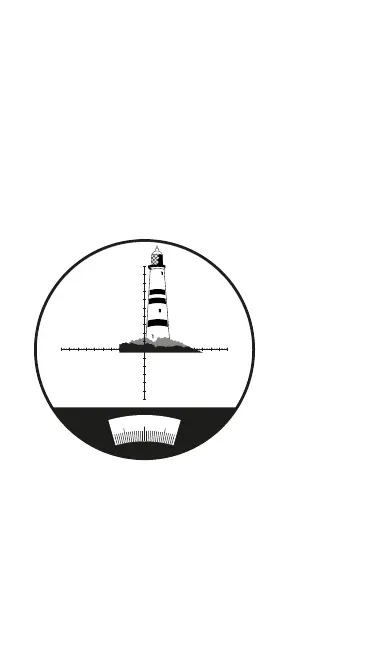

In the case of the Angular Elevation
3)
of the target object within
the range of the vertical scale value (70 mils), as in the figure
showed, first put the vertical scale Value ‚0‘ at the foot of the ligh-
thouse, then we could find the Angular Elevation of the lighthouse
at 60 MILs easily and directly.
In the case of the Angular Elevation of the target object beyond
the range of the Vertical Scale Value (70 Mils), we should deter-
mine it in stages.
10
10
10
20
30
10 20
20
20 30
30
30 40
40
40 50
50
50
180
190
170
3)
Angular measurement between two lines, when one of them is
surface line and another is the line which connects a point on the
surface to the peak of the object is know as Angular Elevation of
that object with reference to the particular point on the surface.

Minox MD 7x42 C Specifications

General

Exit pupil	6 mm
Eye relief	18 mm
Prism type	Roof
Field of view	113.4 - 1000 m
Magnification	7 x
Twilight factor	17.2
Objective diameter	42 mm
Apparent field of view	6.5 °
Operating temperature (T-T)	-20 - 50 °C
Waterproof	Yes
Waterproof up to	5 m

Weight and Dimensions

Depth	143 mm
Width	61 mm
Height	65 mm
Weight	370 g
