How to Measure the azimuth by the horizontal scale value on
the MIL Reticle
The azimuth is the angle of horizontal deviation from the north.

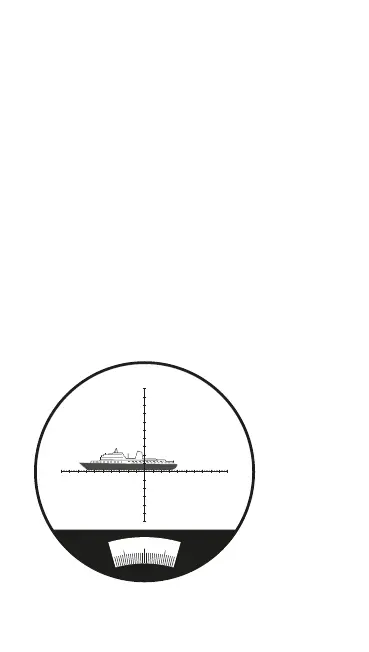

As in the figure showed, the azimuth of the ship at 60 MILs is
determined by the horizontal scale value easily and directly same
way as the angular elevation measurement.
How to Measure Height or Length of a target object when the
distance is known
Based on the way of Angular Elevation measurement or azimuth
measurement, we can determine the height or length of the target
object by a simple formula as the following:
Height (m) = Distance (km) x Angular Elevation
respectively
Length (m) = Distance (km) x Azimuth
10
10
10
20
30
10 20
20
20 30
30
30 40
40
40 50
50
50
180
190
170

Minox MD 7x42 C Specifications

General

Exit pupil	6 mm
Eye relief	18 mm
Prism type	Roof
Field of view	113.4 - 1000 m
Magnification	7 x
Twilight factor	17.2
Objective diameter	42 mm
Apparent field of view	6.5 °
Operating temperature (T-T)	-20 - 50 °C
Waterproof	Yes
Waterproof up to	5 m

Weight and Dimensions

Depth	143 mm
Width	61 mm
Height	65 mm
Weight	370 g
