OPERATING INSTRUCTIONS
1. Lift the recovery tank of solution tank by releasing the two latches.
2. Add up to 1 1/2 gallons of hot water (maximum 140°F) to the solution tank. If chemicals are
required, follow dilution ratios as specified on product label. Use only commercially
available cleaning chemicals intended for use on carpet.
3. Place recovery tank back on solution tank and fasten the two latches.
4. Plug power cord into grounded wall outlet.
5. Connect the vac/solution hose assembly to machine.

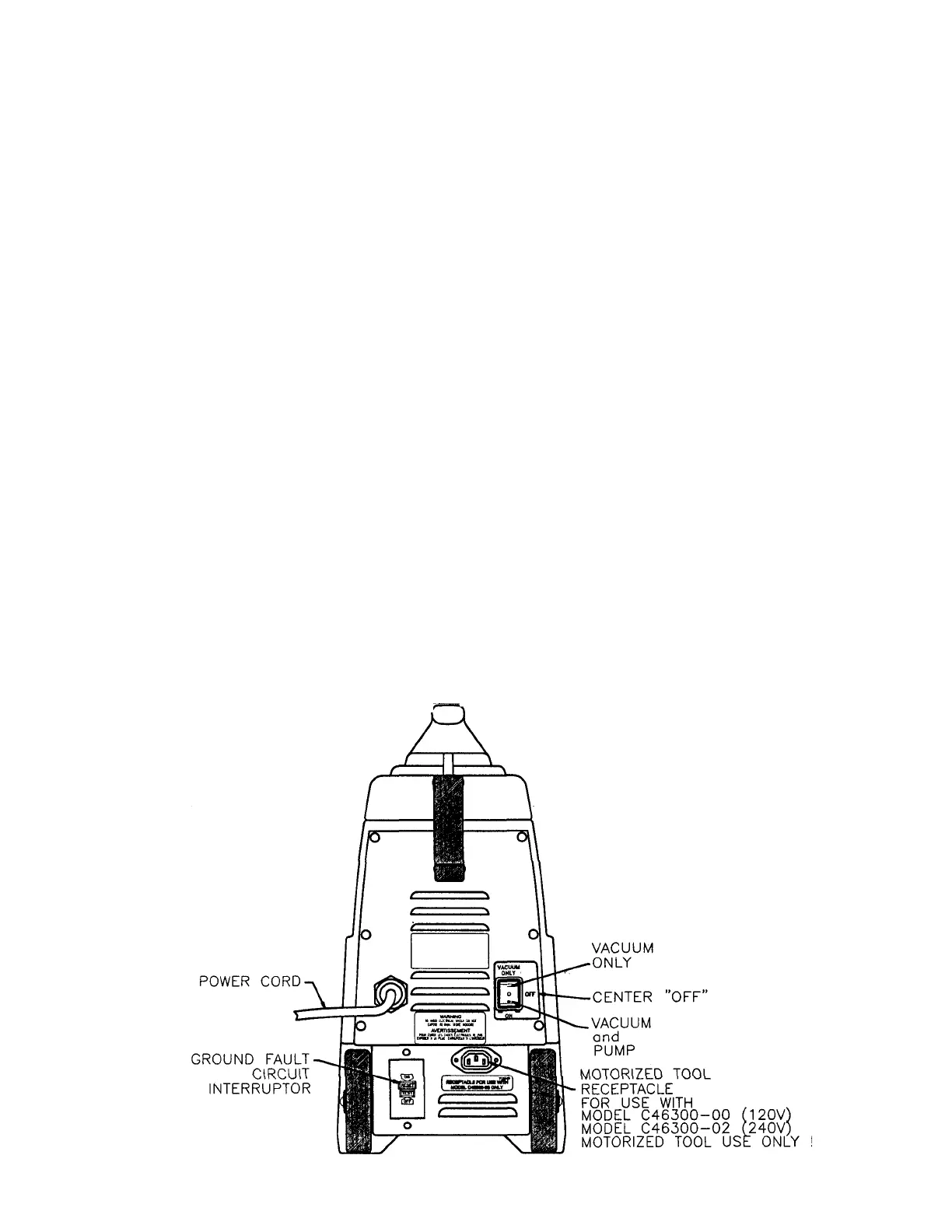

6. This machine is equipped with a 3-position power switch. Ref. to figure below. The single
bar position is for vacuum only - center position is off. Double bar position is for vacuum
pump and motorized tool (120V and standard 230V). Turn on machine in the single bar
position (CE version 230V only).
7. Always test upholstery for color fastness in a hidden area before beginning cleaning
process.
8. Warning: This unit does not contain any automatic liquid shut-off devices in the vacuum
recovery tank. Do not overfill. Always completely empty recovery tank before refilling
solution tank. If foam or liquid comes out of ventilation openings turn off immediately.
Remove recovery tank and run for 1 minute to flush all liquid from vacuum fan chamber.
