Mipro MA-708 - Transmitter Storage; Operation Guide; Battery Replacement; Procedure

The batteries must be replaced every 2~3 years depending on usage over time.
Ascertain the power switch is turned off and AC cord is unplugged.

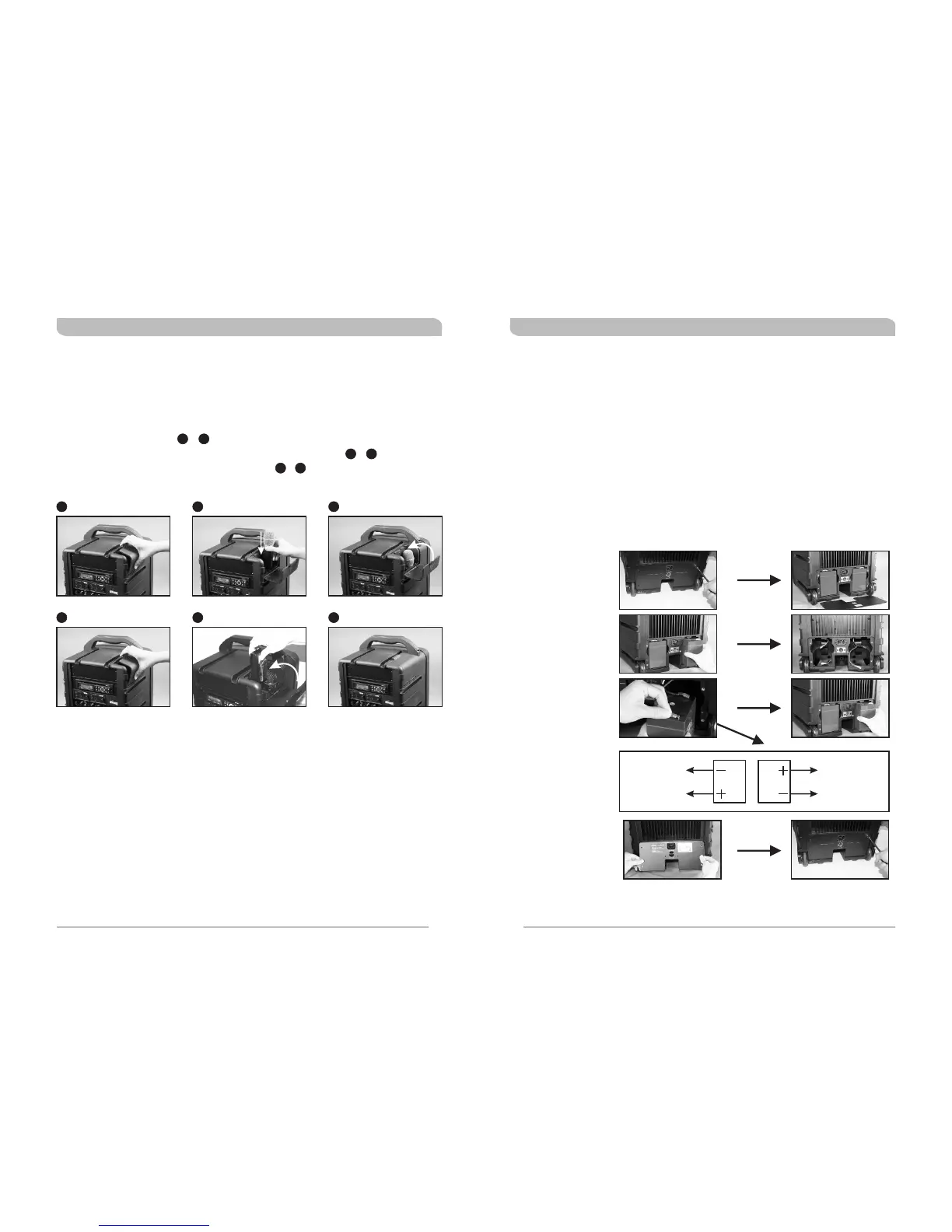

A. Using a Phillips-head screwdriver (not supplied) remove the screws to remove battery
protection cover panel. (see figure 1-1)
B. To remove batteries, gently slide the battery away from the battery housing
compartment of MA-708. (see figure 1-2)
C. Replace batteries “as above” and re-connect the wires to the new batteries in accordance
to the wiring diagram below. (see figure 1-3)
D. Replace the battery protection cover panel, tighten up the screws. (see figure 1-4)
REPLACING BATTERIES
(Battery wiring diagram)
(Figure 1-4)
(Figure 1-3)
(Figure 1-2)
(Figure 1-1)
red wire
red wireblack wire
black wire
C
F
OPERATION OF TRANSMITTERS STORAGE
1.
and one bodypack transmitter can be stored inside a unique compartment of MA-708.
2. Steps of storing transmitters.
Two handheld transmitters, or two bodypack transmitters, or one handheld transmitter
A. Open the lid. (see figure: & )
B. Place the transmitters downward to position correctly. (see figure: & )
C. Return the lid to the closed position. (see figure: & )
D
C
A
EB
F
B
E
A
D
06
07
PORTABLE WIRELESS PA SYSTEM PORTABLE WIRELESS PA SYSTEM
