Miracle LIB-053 - Page 20

ALUMINIUM
SEAT PANEL
Item Description Qty
Specifications
Assembled Seat Panel
1
Seat Panel
1
Materials:
2
Aluminium Seat (Fitted)
1
5
Magnalock (Fitted)
8
Colour: Optional
Loose Hardware
3
M10x25mm Torx Bolt
4
Fi
nish: Powdercoat
4
M10 Flat Washer
4
Fasteners:
Stainless Steel
Application:
Panels may be used as infills or as role play items.
This panel is available for ground level only.
Maintenance
All fasteners should be regularly
checked and retightened, if necessary,
1 week after installation.
Ongoing maintenance intervals will vary
according to the amount of use the
equipment receives.
Recommend inspection intervals every 3
months.
* Wear Item - Refer Warranty
Installation
Instructions:

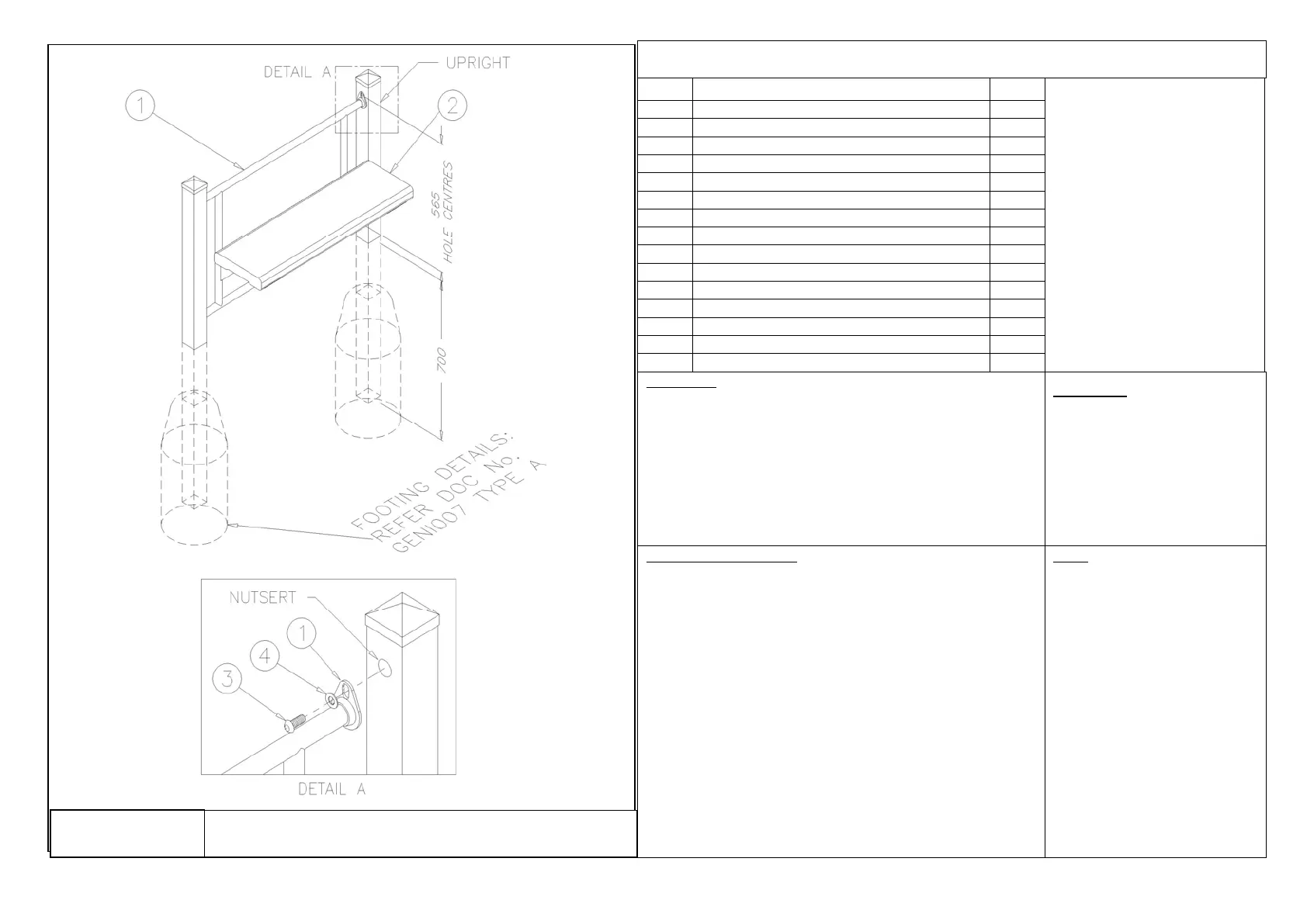

1. Refer to the plan view for the position of the panel.
2
. Lift the Assembled Seat Panel into position and bolt it to the
inside of the uprights with M10x25mm Torx Bolts (3) and Flat
Washers (4) under the bolt heads. (Refer Detail A)
3. It is the installer ‘s responsibility to ensure the
correct hardware is used , Depending on the site
conditions.
Note:
In-ground Upright depth may vary
depending on Softfall
- Sand/Mulch/Grass–700mm (Pictured)
- Rubber – 500mm
+ 300mm Added to Upright depth if
component is Freestanding
+ Use ID tag as reference.
STRUCTURE: ____________________
DATE: ___________
MIRACLE: ______________________ DATE: ___________
Doc No. P-20A
