First, let’s determine the under-kitchen compression water
inlet size. You could find either a 1/2” or 3/8” OD compression
inlet valve under the kitchen cabinet.
1. The quick-connect connectors can be found on both sides of the filter
head. Insert the inlet and outlet water hoses as instructed; push them in
until you feel a “Click” action.

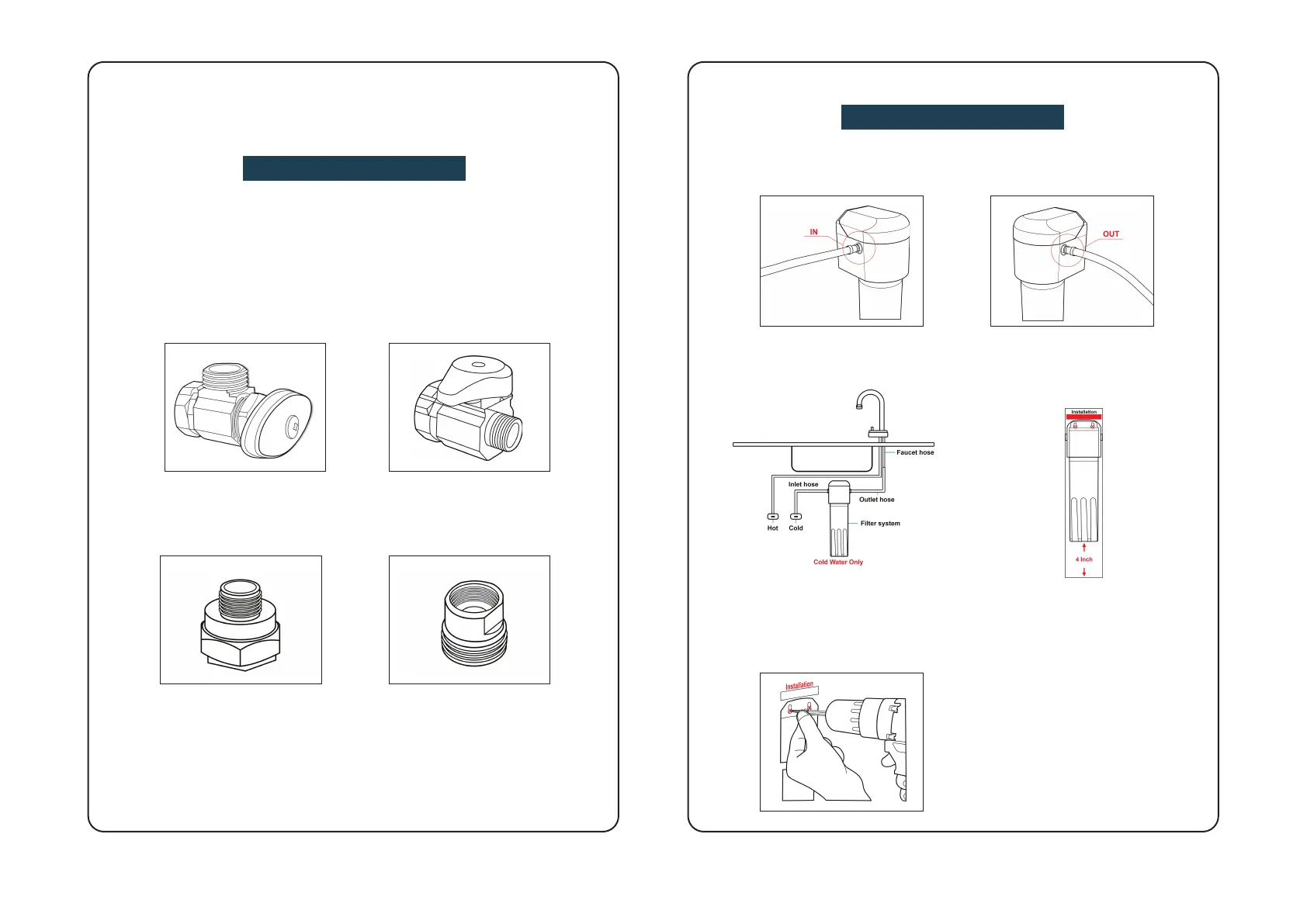

Please check the following images and pick out the
suitable accessories and adapters that work best with your
current under kitchen layout.
FOR 1/2” FIP OUTLET VALVE, please get the compression hose
to 1/2” FIP adapter and adapter 3/8” ready.
For the 3/8” OD Coompression outlet valve, you do NOT need to use any of the compression
hose adapters.
1/2” FIP Outlet
3/8” Compression Outlet
INSTALLATION STEPS
INSTALLATION PREPARATION
2. Find the desired location to mount the
water filtration system.
3. Place the installation template at the
desired location with at least 4 inches of
space between the boom of the filter
cartridge and the floor.
4. Drill through the holes marked on the template; leave
1/3” length of the screws outside for aaching the filter
head. Remove and discard the template after drilling.
