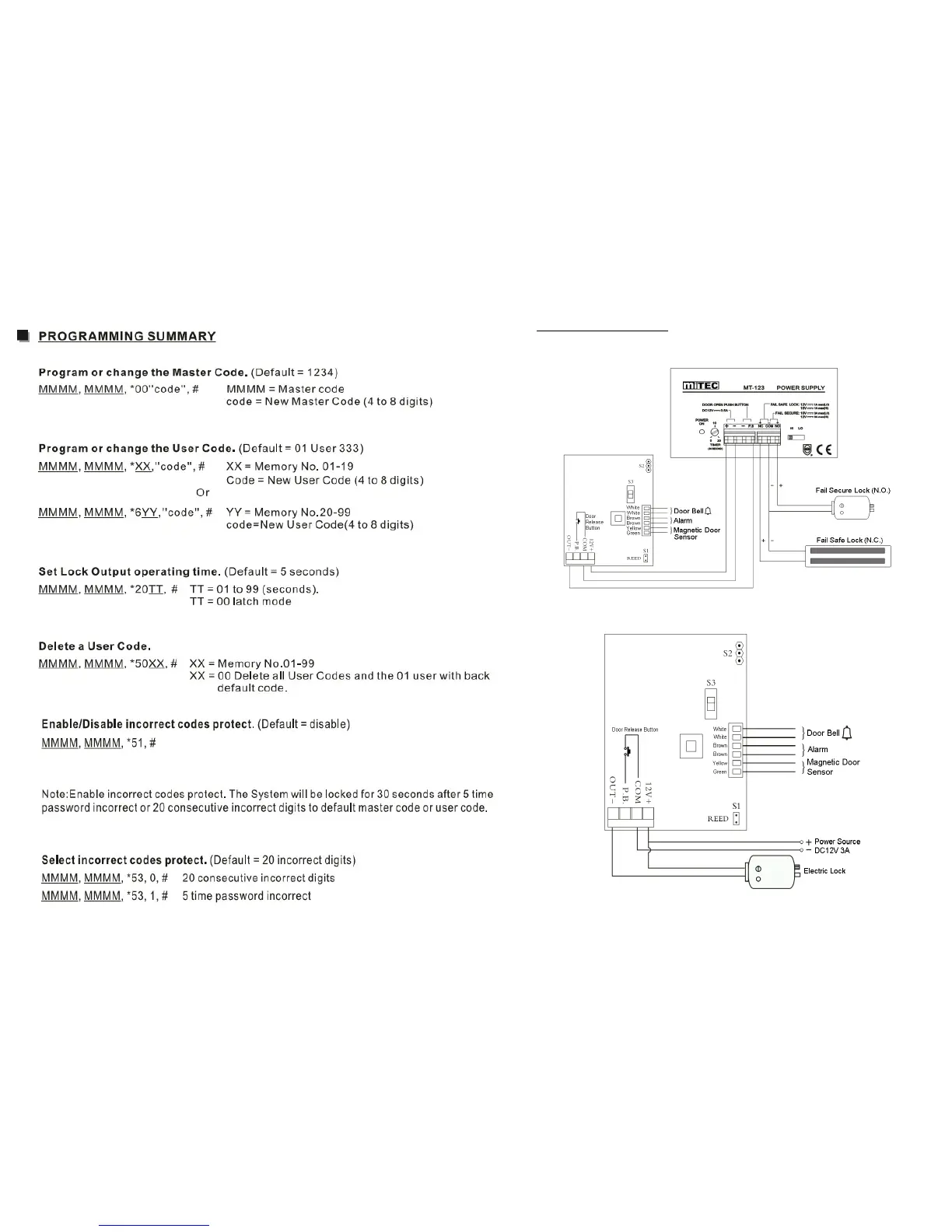

Wiring Diagram:
(1) Connection with a Electric-Lock Power Supply:
* For the above connection, the switch S3 should be put to the NO position
(2) Connection with a Electric Lock :
* For connecting with a fail-secure lock, the switch S3 should be put to the NO position
For connecting with a fail-safe lock, the switch S3 should be put to the NC position
