(h). Fuel mixture tank
(i). Close the choke
(j). Open the choke
(k). Adjustment of carburettor
“H” High speed adjustment, “L” Low speed adjustment
(l). Engine speed continuously variable

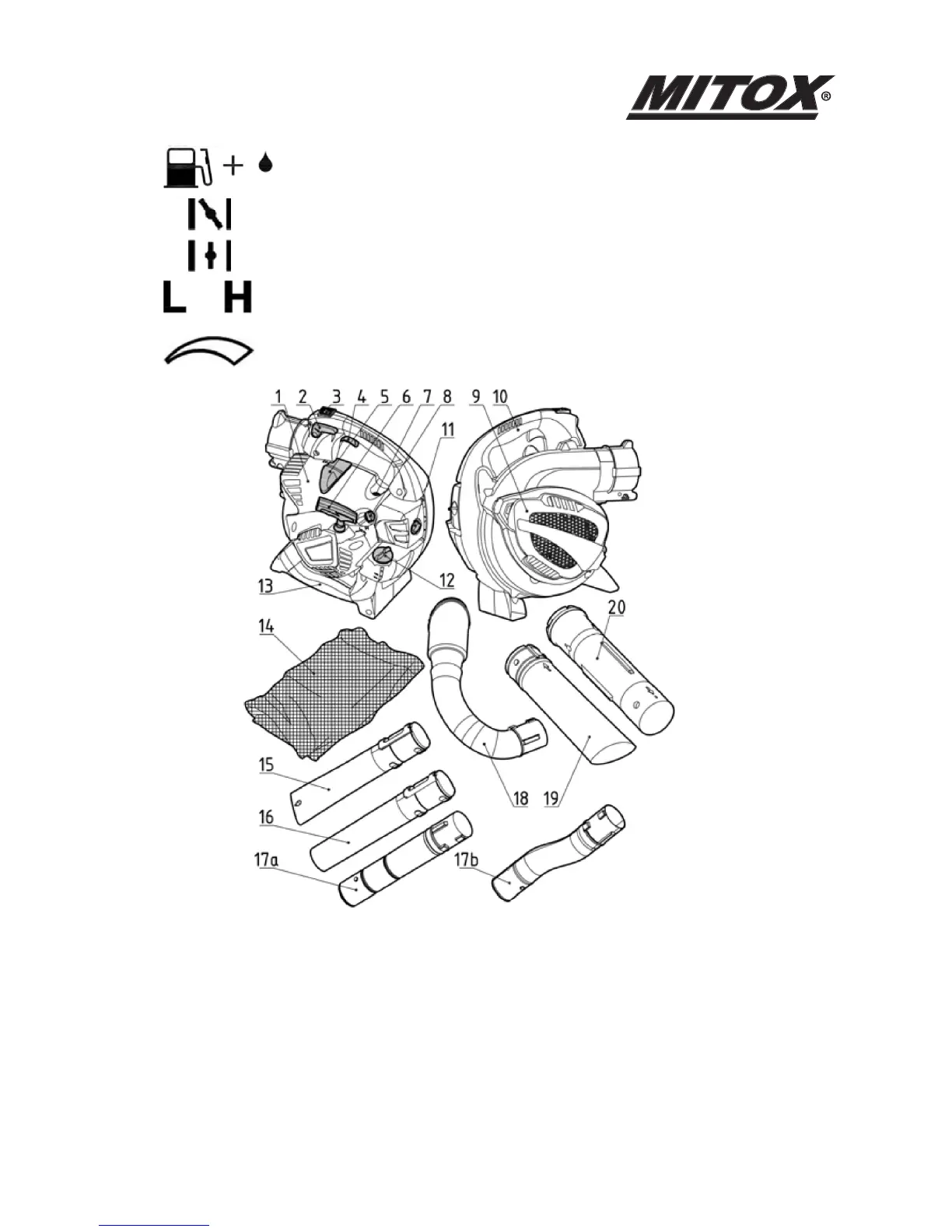

1 Engine
2 Throttle setting device
3 Engine switch
4 Throttle trigger
5 Spark plug
6 Starter handle
7 Primer blub
8 Choke knob
9 Intake grille
10 Upper handle
11 Air filter screw
12 Fuel tank cap
13 Lower handle
14 Bag
15 Second blow tube (flat end)
16 Second blow tube (round end)
17a First blow tube (straight)
17b First blow tube (curving)
18 Tube fittings bag
19 Second vacuum tube
20 First vacuum tube
