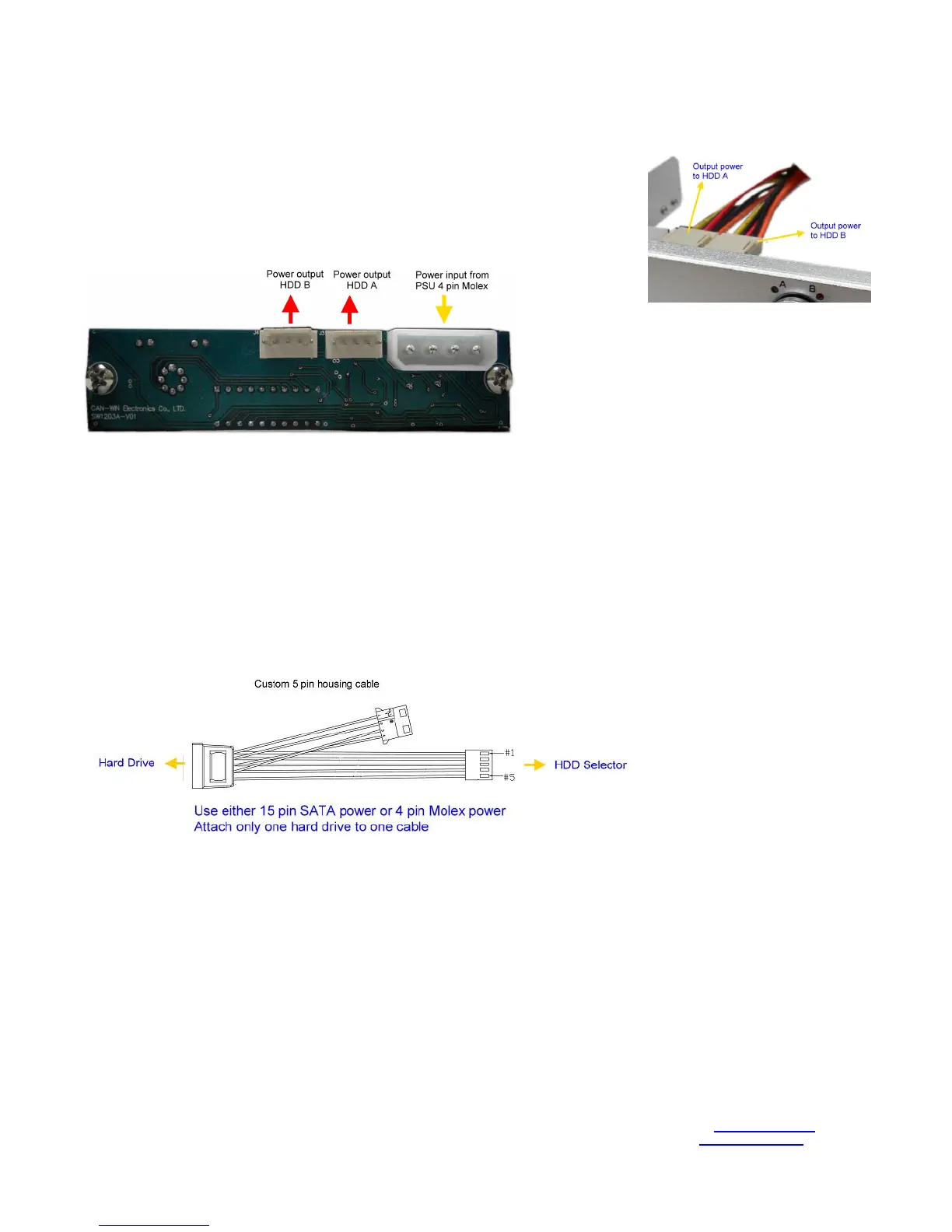

Installation Instruction
Step 1.
Connect the enclosed 5 pin housing cables to the HDD selector
Step 2.
Connect 4 pin Molex power from PSU to the HDD selector - the 4 pin Molex supplies
input power to the HDD selector.
Step 3.
Insert the HDD selector to 3.5 drive bay and fasten it with the mounting screws.
Connect the other end of the 5 pin housing cable that is connected to Power output
HDD A to a hard drive which you would call it as HDD A. Connect the other end of
the 5 pin housing cable that is connected to Power output HDD B to a hard drive
which you would call it as HDD B.
Even though the other end of a 5 pin housing cable comes with both 4 pin Molex and
15 pin SATA power connectors, please make sure that you connect only one hard
drive to either Molex 4 pin or SATA 15 pin power and leave another one
unused.
