148

17. Parameter editor

The parameter editor can be used to reference and rewrite the parameter information set in the robot controller.

17.1. Starting

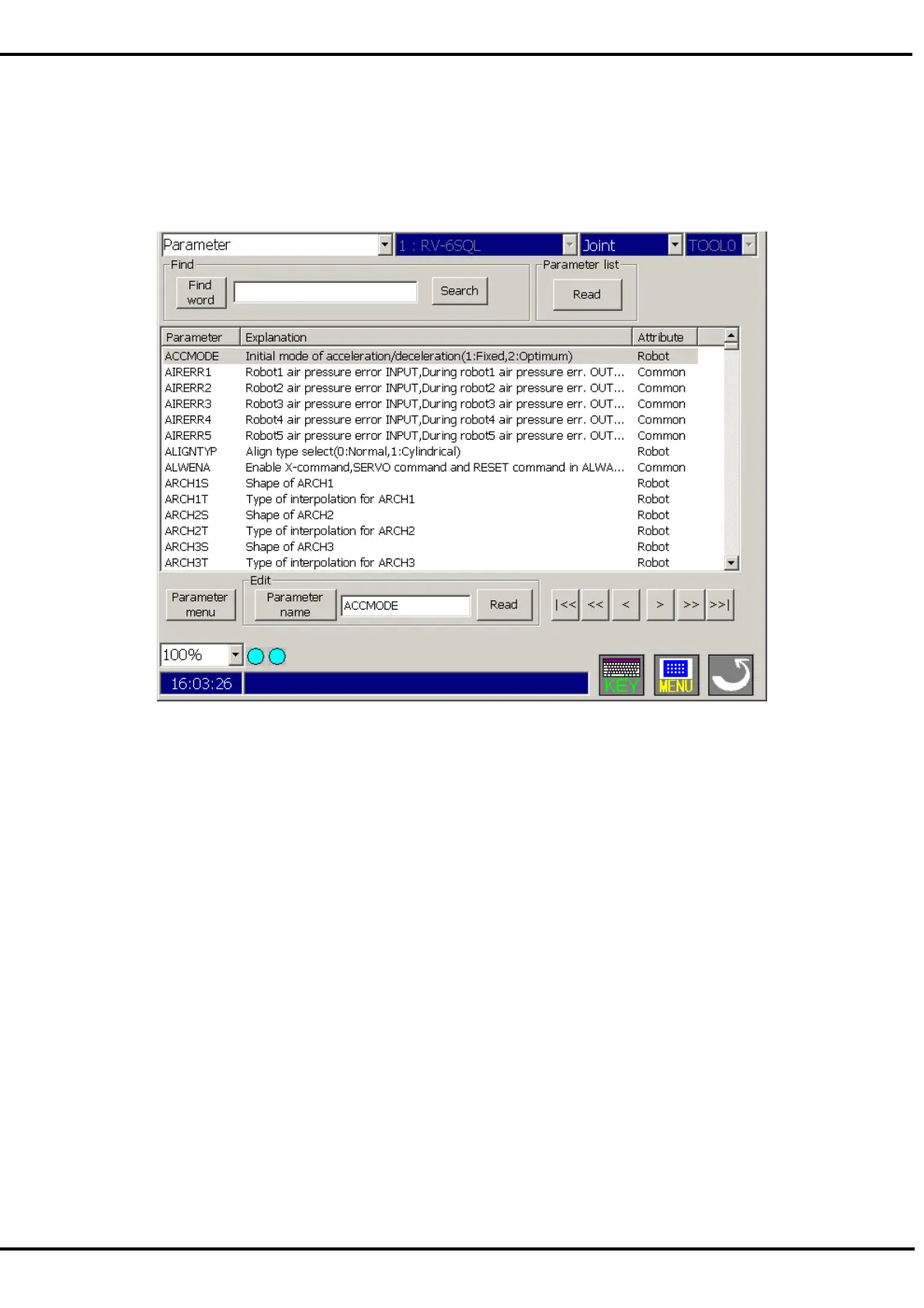

Select the “Parameter” from the menu, and parameter editor shown below appears.
