185

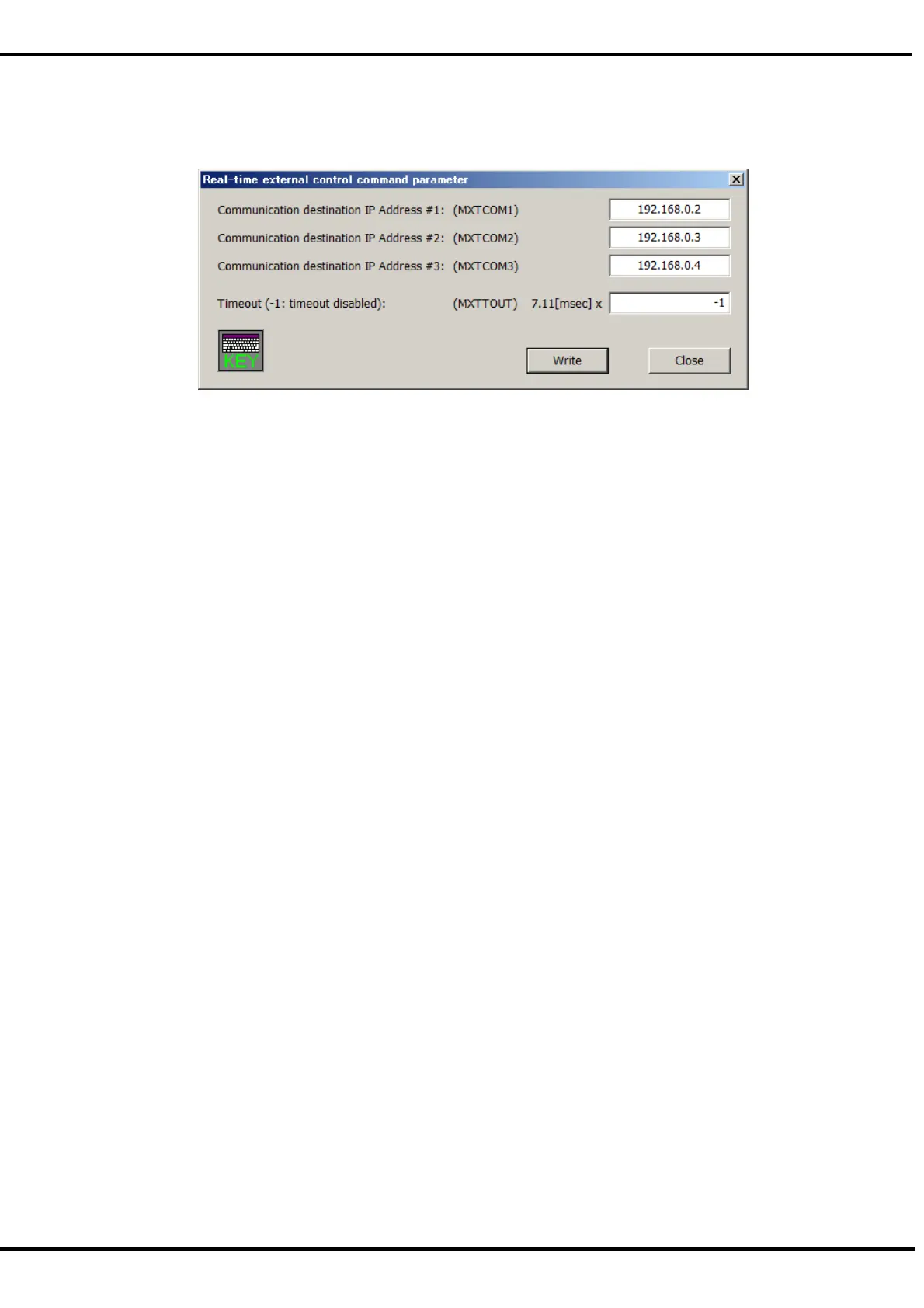

17.4.28. Real-time external control command

Set the information of the Real-time external control (MXT).

This function can be used with Version 3.2 or later of this software.
