18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)
18.1.19 FX3U-32DP

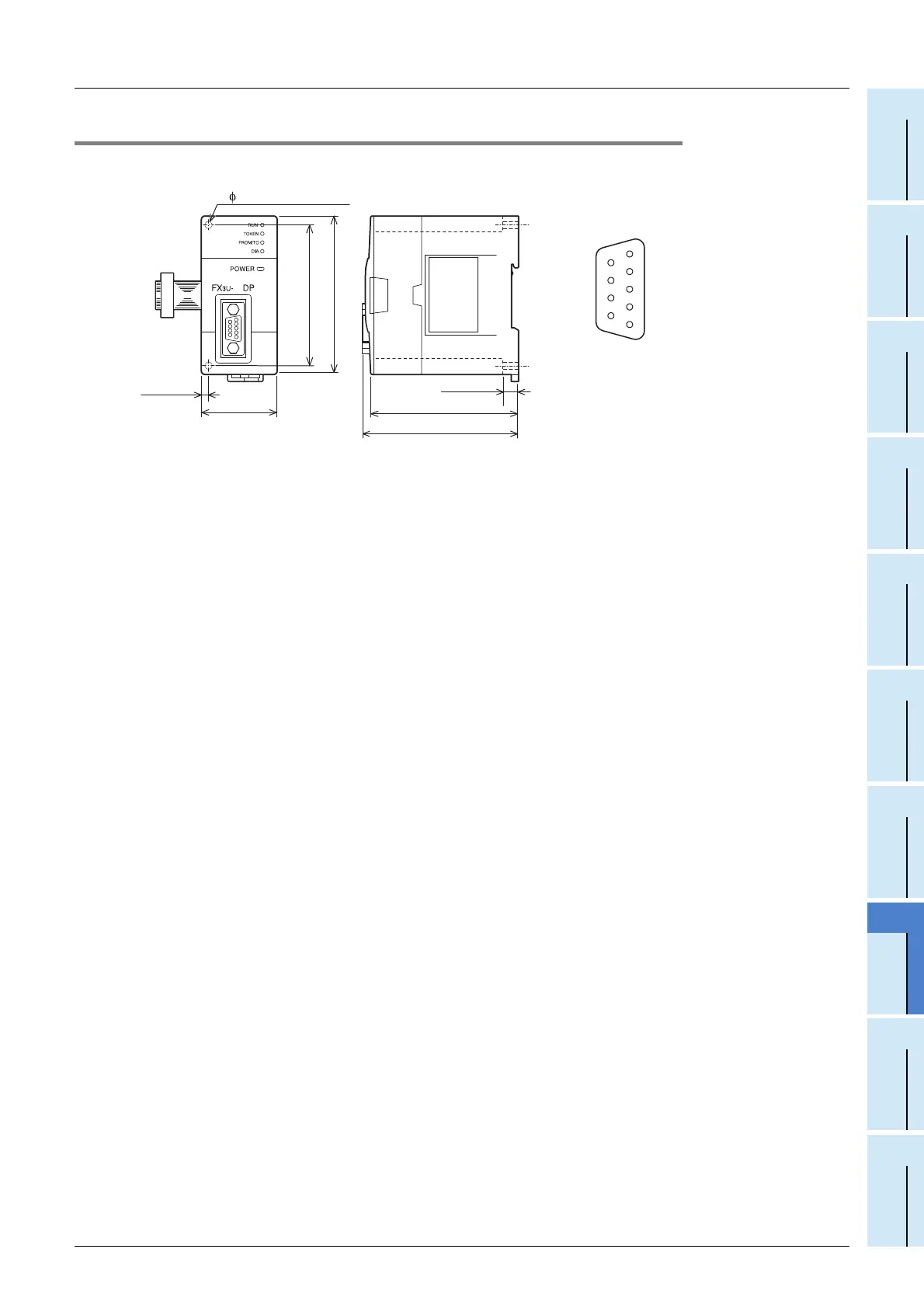

External Dimensions, Pin Configuration
• MASS (Weight): Approx. 0.2 kg (0.44lbs)
• Installation: DIN rail of 35 mm (1.38") in width or screws
• Accessories: GSD file (CD-ROM), Label for indication of special unit/block number, Dust proof
protection sheet, Manual supplied with product
• Connector: PROFIBUS-DP interface connector (D-SUB 9-pin, female)
• The extension cable is already connected to the extension block
32
9
8
7
6
5
4
3
2
1
1 NC (Not used)
2 NC (Not used)
3 RXD/TXD-P
4 RTS
5 DGND
6VP
7 NC (Not used)
8
9
RXD/TXD-N
NC (Not used)
89 (3.51")
87 (3.43")
43 (1.7")
4 (0.16")
2- 4.5 mounting holes
9 (0.36")
Unit: mm (inches)
90 (3.55")
80 (3.15")
(mounting hole pitch)
