Mitsubishi Electric MELSEC-F FX3G Series - Fx 3 U -232 Adp(-Mb); Fx 3 U -485 Adp(-Mb)

302
18.2 Special Adapters
FX3G Series Programmable Controllers
User's Manual - Hardware Edition
18 Other Extension Devices and Optional Units (External Dimensions and Terminal Arrangement)

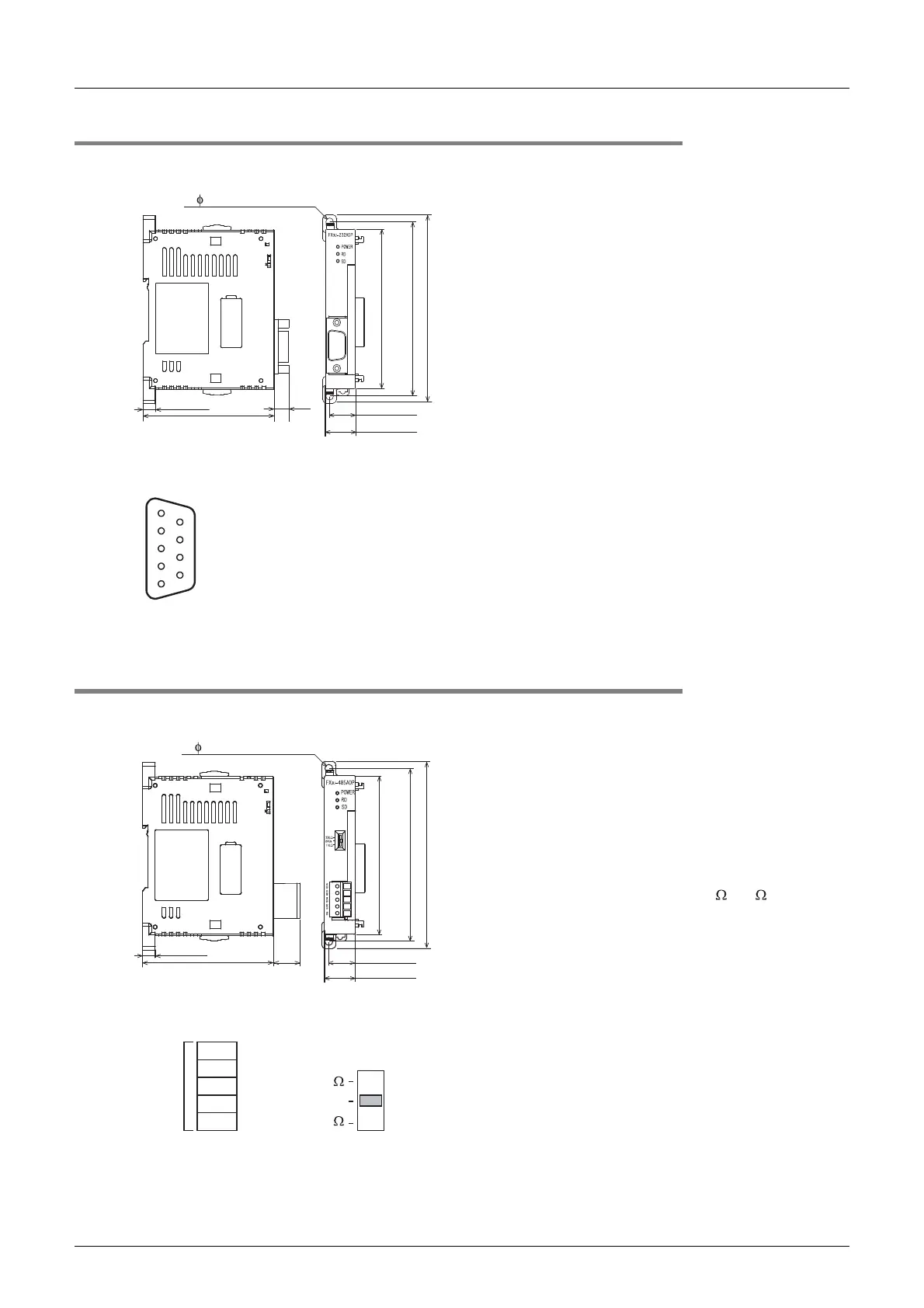

18.2.7 FX3U-232ADP(-MB)
External Dimensions
• MASS(Weight): Approx. 80g (0.18lbs)
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Manual supplied with product
• Connector: RS-232C
(D-SUB 9-pin, male)
Pin Configuration
18.2.8 FX3U-485ADP(-MB)
External Dimensions
• MASS(Weight): Approx. 80g (0.18lbs)
• Installation: DIN rail of 35 mm (1.38") in
width or screws
• Accessories: Label for indication of link
station number,
Manual supplied with product
• Terminal block: European type
• Terminal resistance: 330 /110 , built-in
Terminal Layout
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
7.5
(0.3")
2- 4.5 mounting holes
9
8
7
6
5
4
3
2
1
1 CD(DCD)
2 RD(RXD)
3 SD(TXD)
4 ER(DTR)
5 SG(GND)
6 DR(DSR)
7 Not used
8
9
Not used
Not used
7(0.28")
15.1(0.6")
17.6(0.7")
98(3.86")
(mounting hole pitch)
90(3.55")
106(4.18")
Unit:mm (inches)
74
(2.92")
15.5
(0.62")
2- 4.5 mounting holes
RDA
RDB
SDA
SDB
SG
5 poles
110
Terminal resistance
setting switch
330
OPEN
