7.5 "CC-Link IE TSN Configuration" Window
7.5 "CC-Link IE TSN Configuration" Window
Perform the parameter setting of device stations, the detection of connected/disconnected devices, or others.
[Navigation window]  [Parameter]  [Module Information]  Target module  [Module Parameter]  [Basic Settings]
 [Network Configuration Settings]
Parameter setting of a device station
Set parameters of device stations (the number of points and assignment of link devices) in the master station.

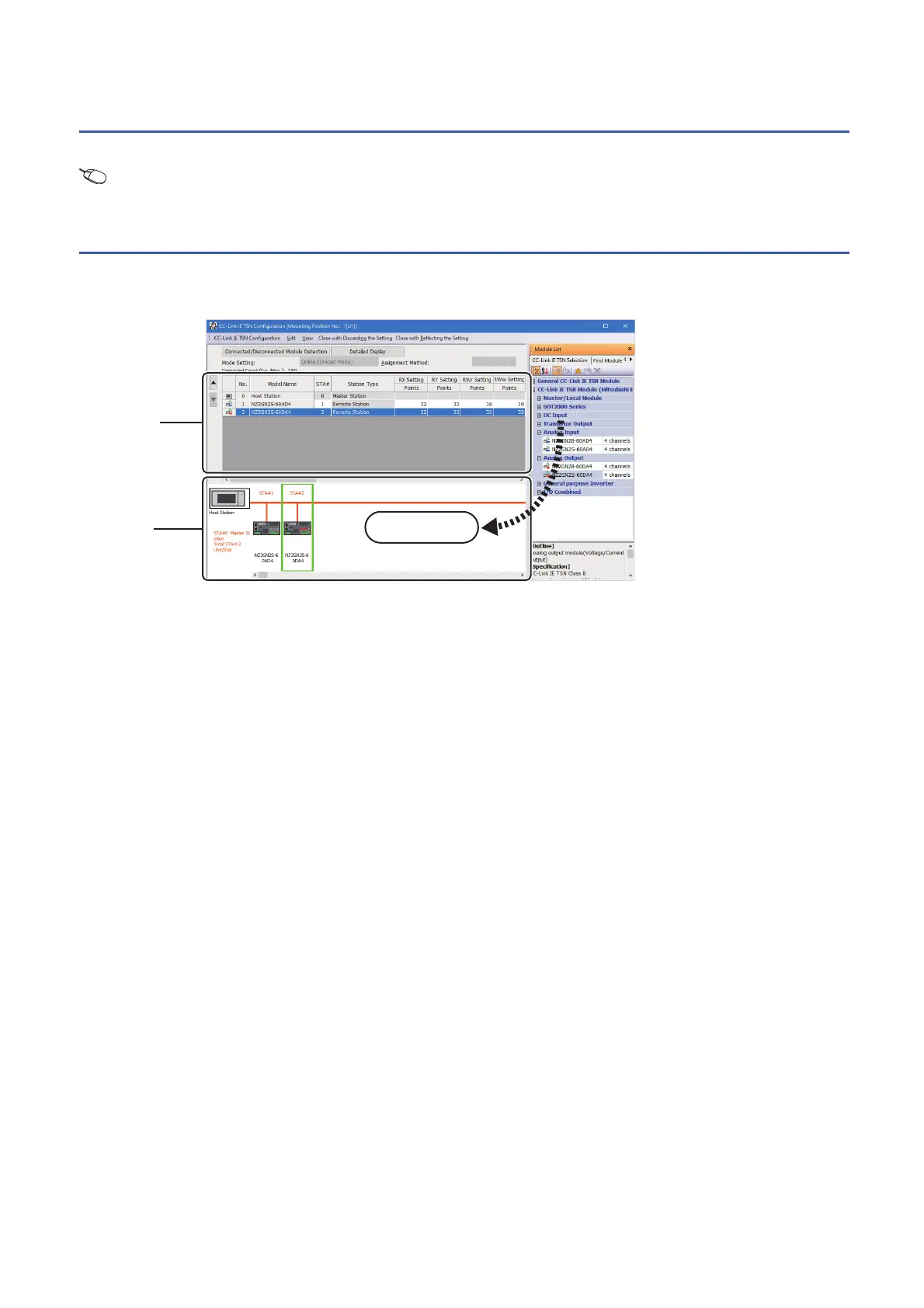

1. Select the module in "Module List" and drag it to the list of stations or the network map.
2. Set the required items.
3. Select [Close with Reflecting the Setting] and close the "CC-Link IE TSN Configuration" window.
List of stations
Network map
Drag and drop
