9 PROGRAMMING
9.2 Communication Example Between the Master Station and Local Station
159
9

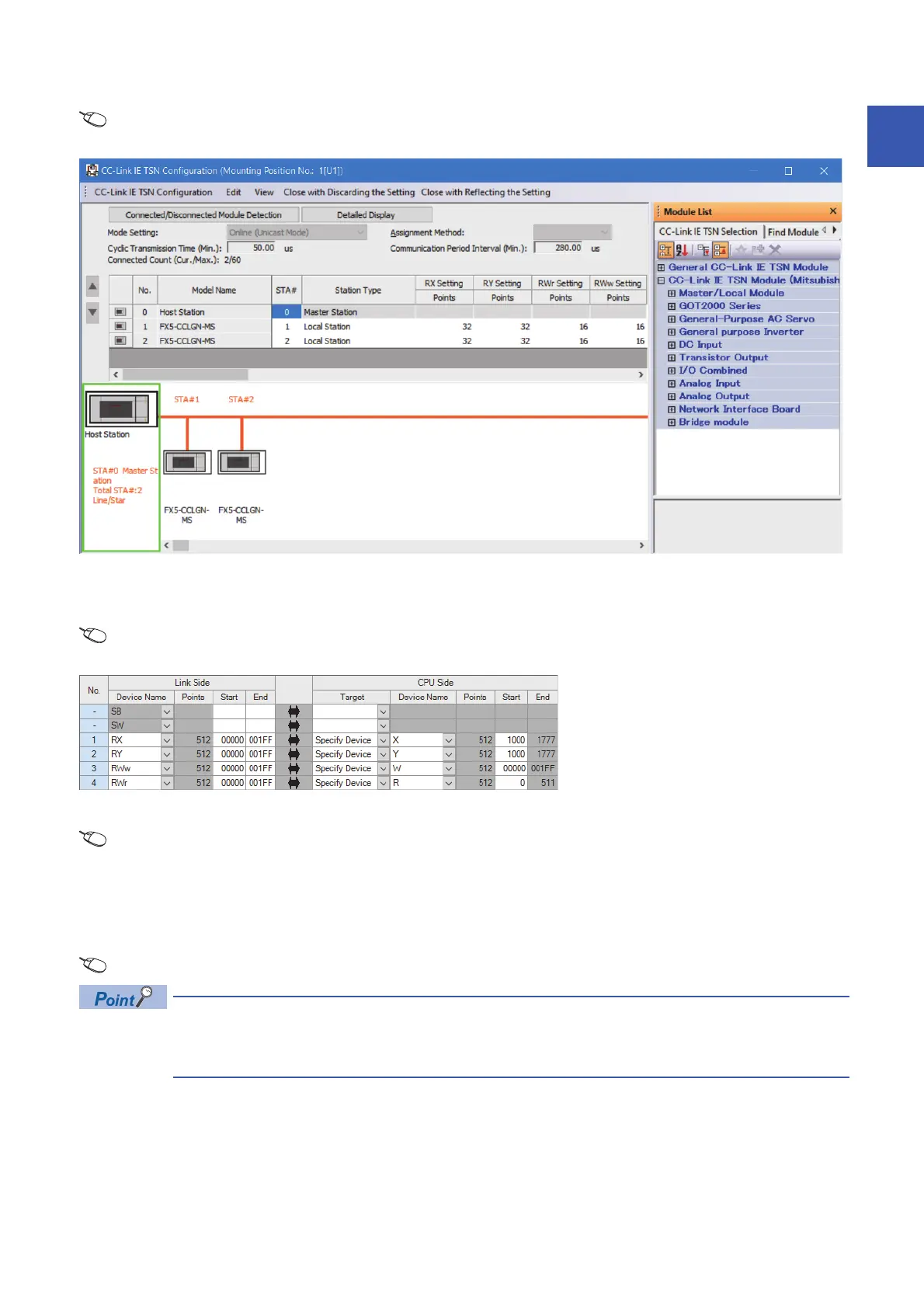

6. Set the network configuration as follows. (Set the IP address for each station.)
[Navigation window] [Parameter] [Module Information] [FX5-CCLGN-MS] [Basic Settings] [Network
Configuration Settings]
7. Click the [Close with Reflecting the Setting] button to close the "CC-Link IE TSN Configuration" window.
8. Set the refresh settings as follows.
[Navigation window] [Parameter] [Module Information] [FX5-CCLGN-MS] [Basic Settings] [Refresh
Settings]
9. In "Communication Mode" under "Application Settings", set "Unicast" or "Multicast".
[Navigation window] [Parameter] [Module Information] [FX5-CCLGN-MS] [Application Settings]
[Communication Mode]
10. Click the [Apply] button.
11. Write the set parameters to the FX5 CPU module on the master station. Then, reset the FX5 CPU module or power off
and on the system.
[Online] [Write to PLC]
In this example, default values are used for parameters that are not shown above. For the parameters, refer to
the following.
Page 129 PARAMETER SETTINGS
To Next Page
