9 PROGRAMMING
9.4 Communication Example Between the Master Station and Servo Amplifier

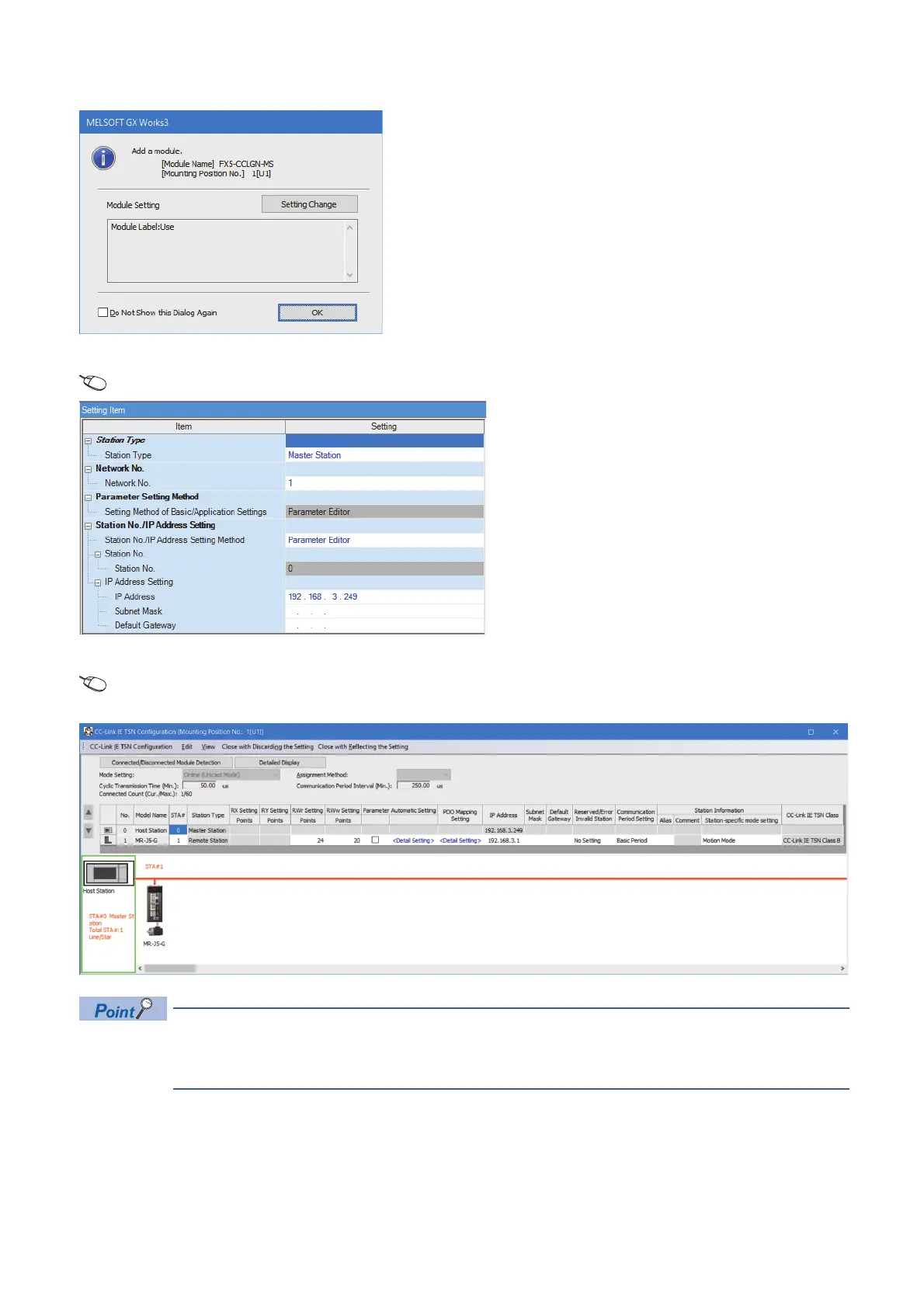

4. Click the [OK] button to add a module label of the FX5-CCLGN-MS.
5. Set the items in "Required Settings" as follows.
[Navigation window]  [Parameter]  [Module Information]  [FX5-CCLGN-MS]  [Required Settings]
6. Set the network configuration as follows.
[Navigation window]  [Parameter]  [Module Information]  [FX5-CCLGN-MS]  [Basic Settings]  [Network
Configuration Settings]
Check that the IP address of the servo amplifier is 192.168.3.1 (rotary switch is 01h (SW1 is 0h, SW2 is 1h)).
For details on how to set the IP address of the servo amplifier, refer to the following.
MR-J5-G/MR-J5W-G User's Manual (Communication Function)
