1.17 Redundant System Function

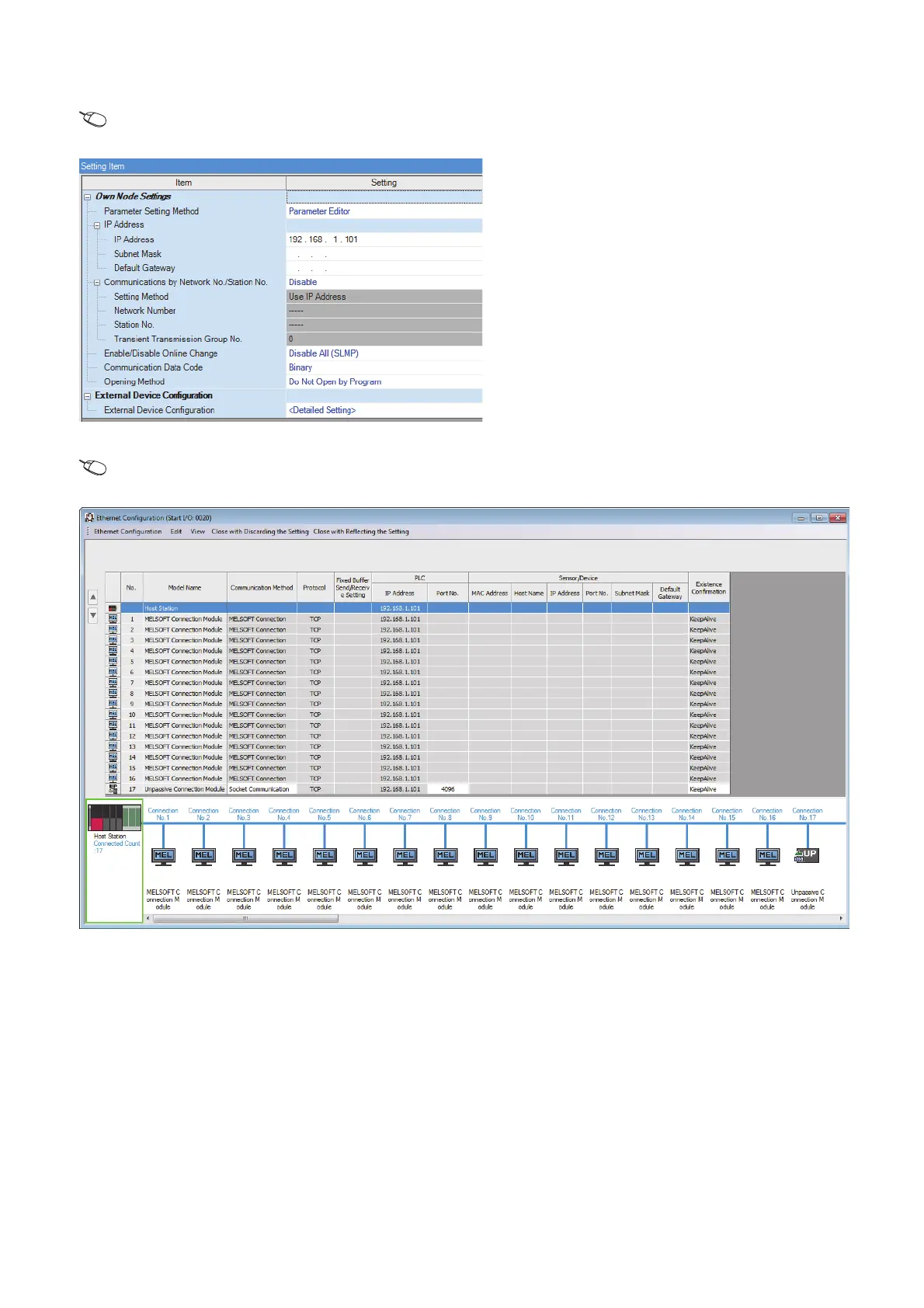

6. Set the items in "Basic Settings" as follows.

[Navigation window]  [Parameter]  [Module Information]  [RJ71EN71]  [Port 1 Module Parameter (Ethernet)] 

[Basic Settings]

7. Set the network configuration as follows.

[Navigation window]  [Parameter]  [Module Information]  [RJ71EN71]  [Port 1 Module Parameter (Ethernet)] 

[Basic Settings]  [External Device Configuration]
