1 FUNCTIONS
1.3 Communications Using the Predefined Protocol

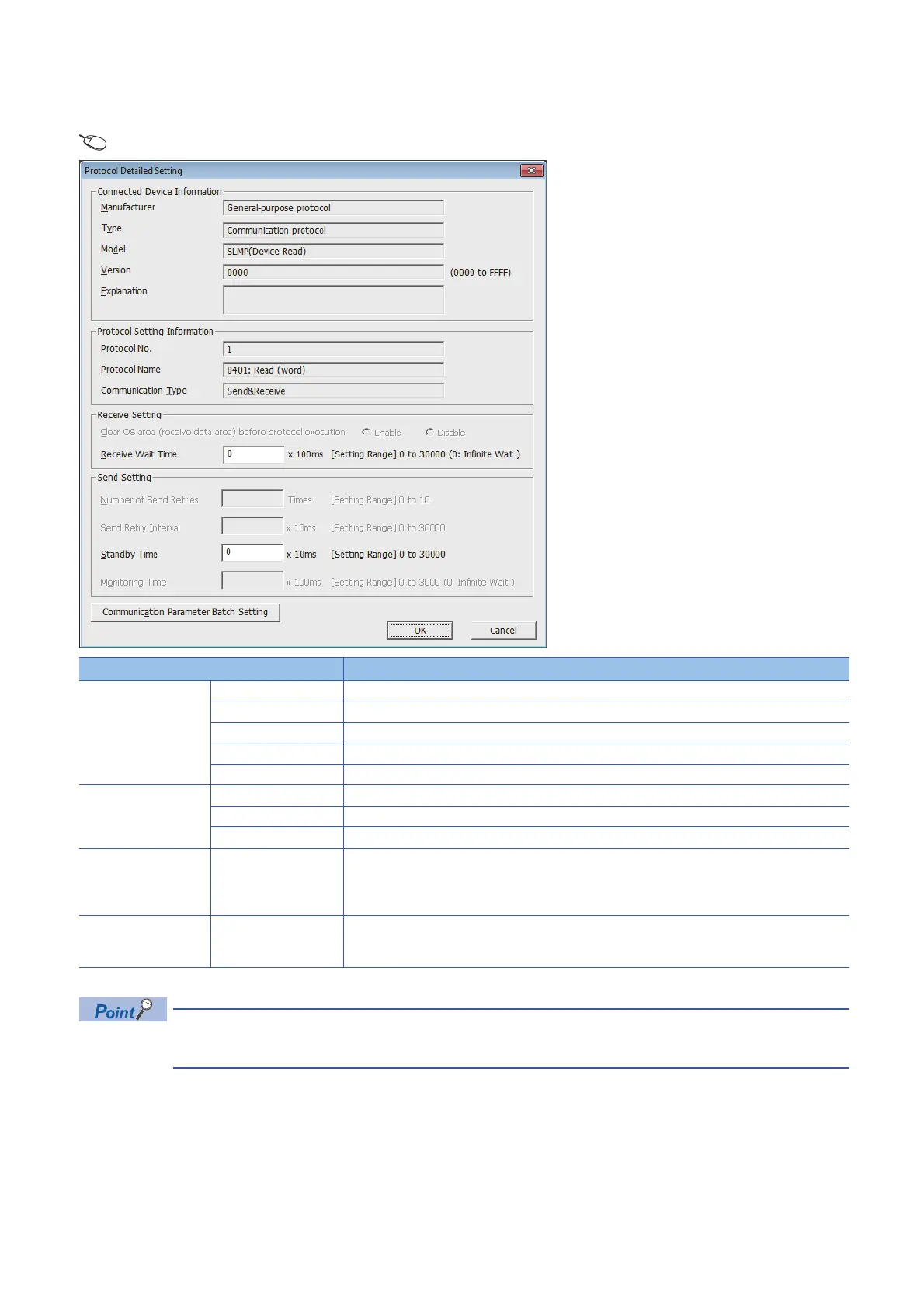

■Protocol Detailed Setting
Set the protocol send/receive parameters.
"Protocol Setting" window Select a protocol [Edit] [Protocol Detailed Setting]
*1 The setting cannot be changed if the protocol was selected from the predefined protocol library.
Send/receive parameters can be set for multiple protocols by clicking the [Communication Parameter Batch
Setting] button and setting the range of the set protocol numbers, receive settings, and send settings.
Item Description
Connected Device
Information
*1
Manufacturer Set the protocol maker name.
Type Set the protocol device type.
Model Set the protocol model.
Version Set the protocol device version.
Description Set a description of the protocol device.
Protocol Setting
Information
*1
Protocol No. The protocol number for the selected protocol is displayed.
Protocol Name Set the protocol name.
Communication Type Set the protocol communication type.
Receive Setting Receive Wait Time Set the time for wait after the module enters the receive data wait state.
If communication with the external device is disabled because of a disconnection and matching packet
data is not received within the specified time, the module judges that an error has occurred and cancels
the receive data wait state.
Send Setting Standby Time Set the time to wait from when the protocol set for the module enters the execution state to when the
data is actually sent. The time for the external device to enter the receive enable state can be adjusted
with this in respect to the module's send timing.
To Next Page
