3 EtherNet/IP Configuration Tool
3.1 Window Structure
51
3

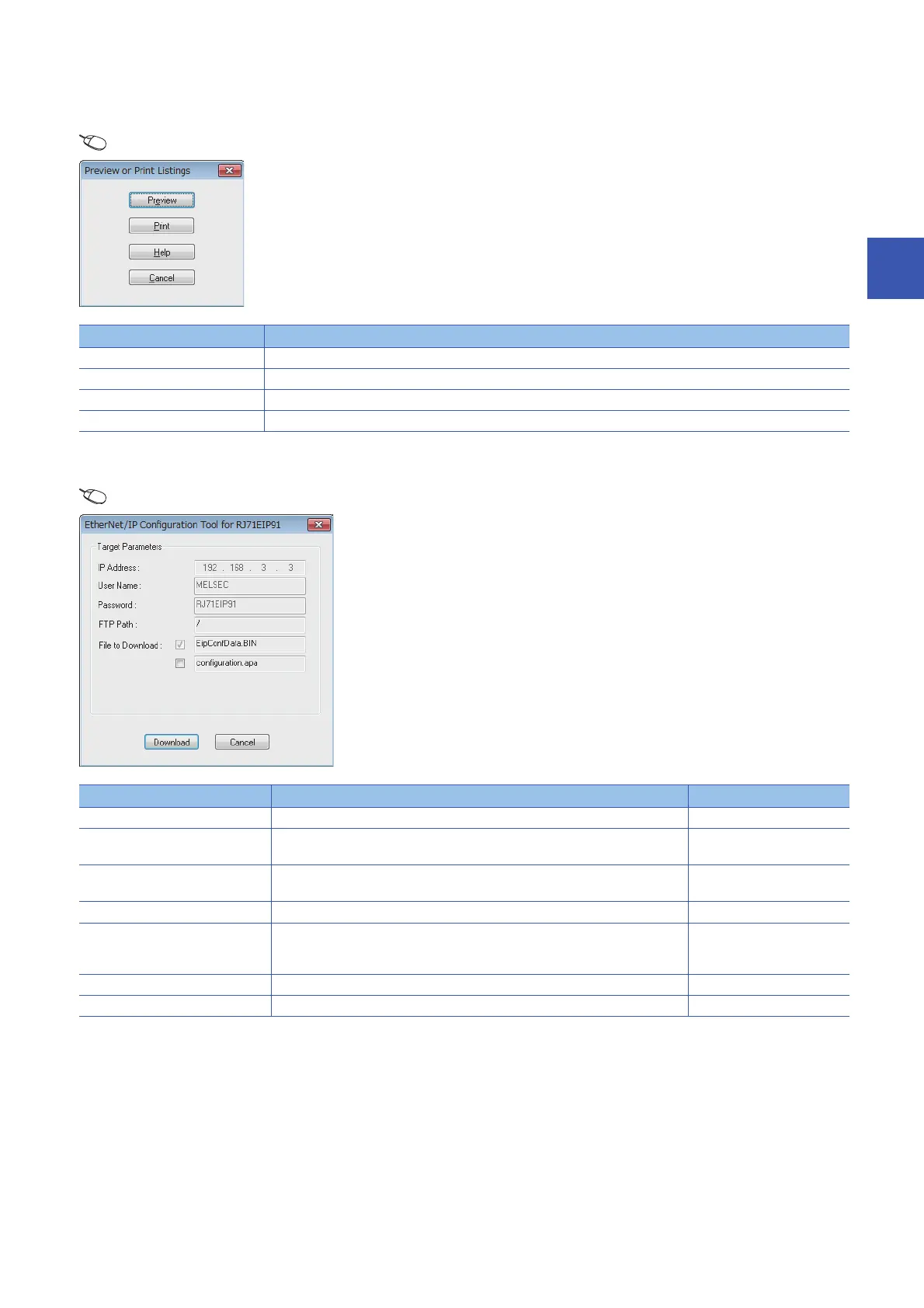

■"Preview or Print Listings" window
Print the information of the current network configuration settings.
[File] Ö [List and Print]
■Download window
The information of the current network configuration settings is written to the RJ71EIP91.
[File] Ö [Download]
*1 EipConfData.BIN is the data used to manage the information of the network configuration settings.
*2 configuration.apa is the data contains the IP address of the RJ71EIP91 set in the EtherNet/IP setting and the EtherNet/IP device
configuration and parameter settings set in the network configuration setting.
Item Description
[Preview] button Displays the information of the network configuration settings in a text file.
[Print] button Prints the selected information.
[Help] button Displays the help.
[Cancel] button Closes the "Preview or Print Listings" window.
Item Description Setting range
IP Address Displays the IP address of the RJ71EIP91.
User Name Displays the name.
(Fixed to MELSEC.)
Password Displays the password.
(Fixed to the RJ71EIP91.)
FTP Path Displays the FTP path.
File to Download When these check boxes are selected, EipConfData.BIN and configuration.apa will
be overwritten.
*1*2
(The check box for EipConfData.BIN cannot be cleared.)
•Selected
• Not selected
(Default: Not selected)
[Download] button Performs writing with the set details. The writing result is displayed in a dialog box.
[Cancel] button Closes the download window.
To Next Page
