10 APPENDIX

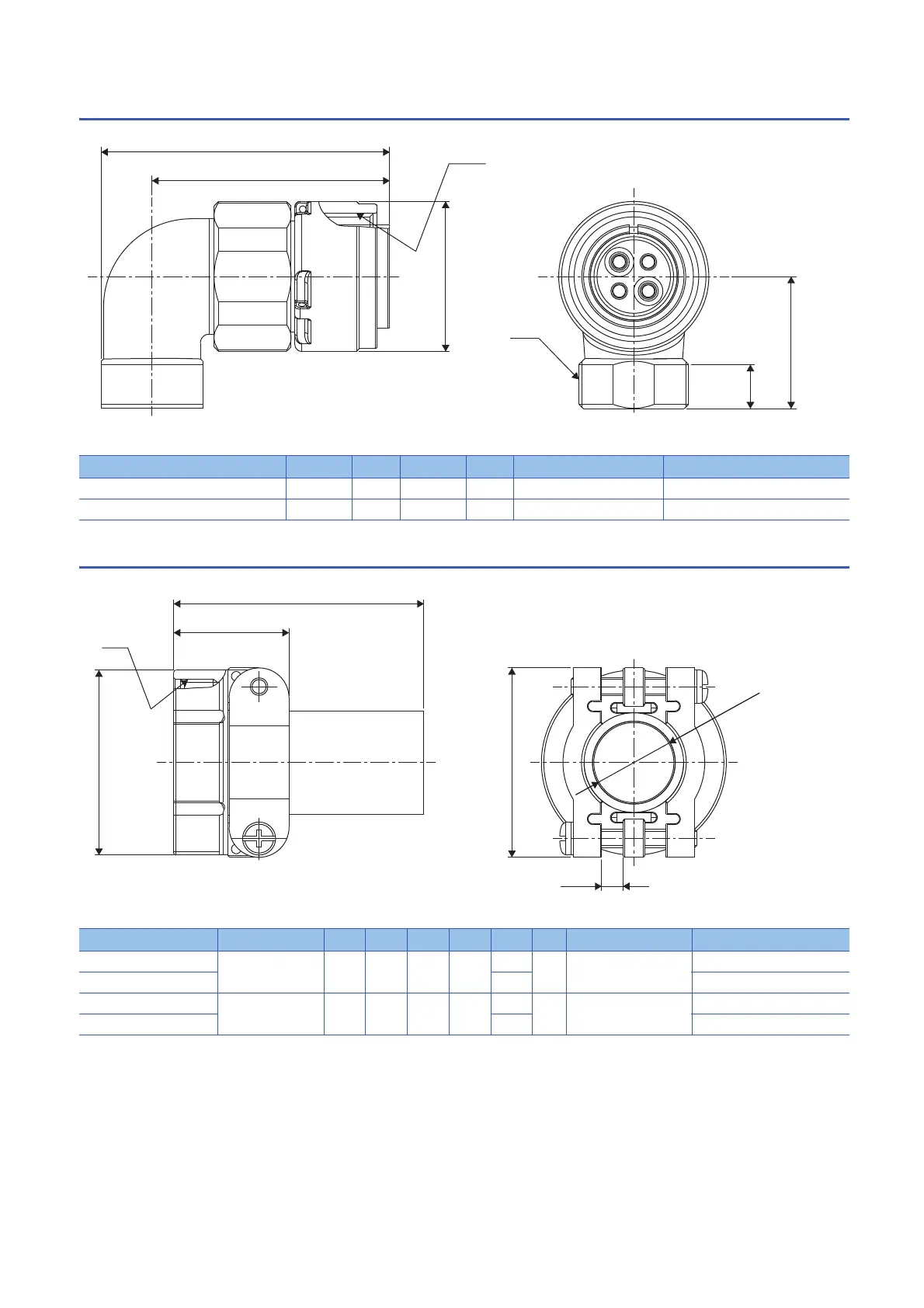

10.3 Connector dimensions
JL04V-8A_-_SE-EBH-R
[Unit: mm]
JL04-_CK(_)-_-R
[Unit: mm]
Model A B C D X Y
JL10-8A18-10SE-EB 65.5 54 34.1 30 1-20UNEF-2A 1 1/8-18UNEF-2B
JL10-8A22-22SE-EB 74.3 60.3 40.5 32 1 3/16-18UNEF-2A 1 3/8-18UNEF-2B
Model Shell size A B C D E F X Cable OD (reference)
JL04-18CK(10)-_-R 18 30.2 24.1 53.8 31.8 11 3.2 1-20UNEF-2B 8 to 11
JL04-18CK(13)-_-R 14.1 11 to 14.1
JL04-2022CK(12)-_-R 22 34.9 24.3 53.8 37.3 13 4 1 3/16-18UNEF-2B 9.5 to 13
JL04-2022CK(14)-_-R 16 12.9 to 16
B
Y
A
B
D
10
X
A
B
C
D
E
F
X
