5 WIRING OPTION
5.4 Wires for option cables
93
5

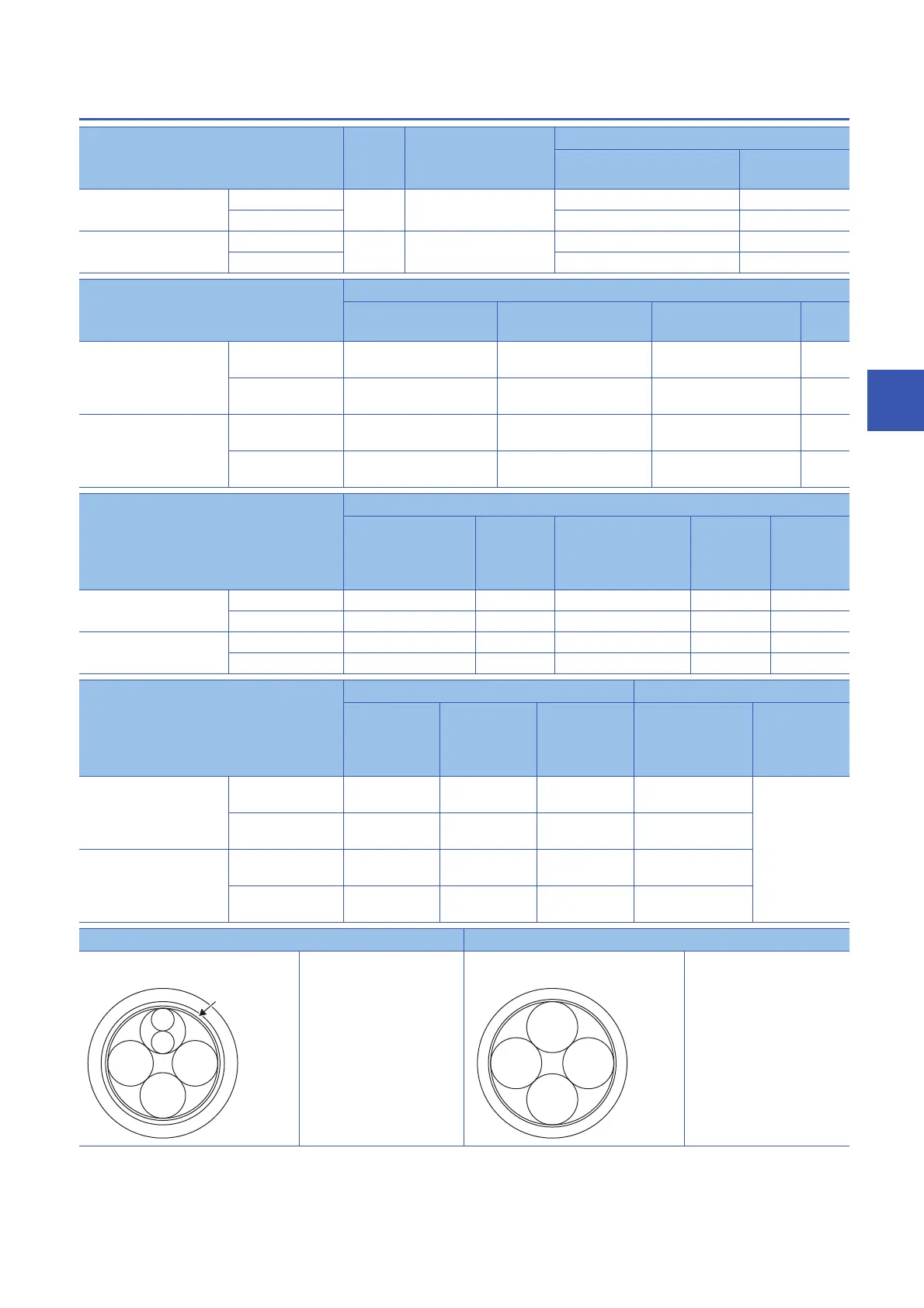

MR-AEP2J20CBL03M-_-L/MR-AEP2J10CBL03M-_-L
Item Cable
length
[m]
Flex type Applicable standard
For wiring between devices
UL 758 (AWM)
Flame retardant
UL 1581
MR-AEP2J20CBL03M-_-L For encoder 0.3 Standard (for fixed parts) UL style 20276 VW-1
For power supply UL style 2586 VW-1
MR-AEP2J10CBL03M-_-L For encoder 0.3 Standard (for fixed parts) UL style 20276 VW-1
For power supply UL style 2586 VW-1
Item Physical characteristics
Conductor construction Braided shielding
material
Sheath material Color
MR-AEP2J20CBL03M-_-L For encoder AWG 24 × 4 pairs Tinned annealed copper wire Flame-retardant and oil-
resistant PVC
Black
For power supply AWG 18 × 4 cores  Flame-retardant and oil-
resistant PVC
Black
MR-AEP2J10CBL03M-_-L For encoder AWG 24 × 4 pairs Tinned annealed copper wire Flame-retardant and oil-
resistant PVC
Black
For power supply AWG 18 × 4 cores  Flame-retardant and oil-
resistant PVC
Black
Item Wire specifications
Conductor OD [mm] Cable OD
*1
[mm]
Minimum bending
radius [mm]
(recommended
value)
Insulation
resistance
(at 20 °C)
[MΩ/km]
Withstand
voltage
[Vac/min]
MR-AEP2J20CBL03M-_-L For encoder 0.6 (AWG 24) 7.5 4 times the cable OD 10 or more 500
For power supply 1.21 (AWG 18) 7.5 4 times the cable OD 100 or more 2000
MR-AEP2J10CBL03M-_-L For encoder 0.6 (AWG 24) 7.5 4 times the cable OD 10 or more 500
For power supply 1.21 (AWG 18) 7.5 4 times the cable OD 100 or more 2000
Item Wire specifications Recommended product
Rated
temperature
[°C]
Conductor
resistance
(at 20 °C)
[Ω/km]
Rated voltage
[V]
Model Manufacturer
MR-AEP2J20CBL03M-_-L For encoder 80 92.2 or less 30 HRZVV-SB-C18467
(20276)
Dyden
For power supply 105 21.8 or less 600 HRZFEV-C18355
(2586)
MR-AEP2J10CBL03M-_-L For encoder 80 92.2 or less 30 HRZVV-SB-C18467
(20276)
For power supply 105 21.8 or less 600 HRZFEV-C18355
(2586)
HRZVV-SB-C18467(20276) HRZFEV-C18355(2586)
Reference diagram AWG 24
1: Red and white
2: Green and blue
3: Purple and orange
4: Gray and black
Reference diagram AWG 18
1: Black
2: White
3: Red
4: Green/yellow
1
2
3
4
Shield braid
1
2
3
4
