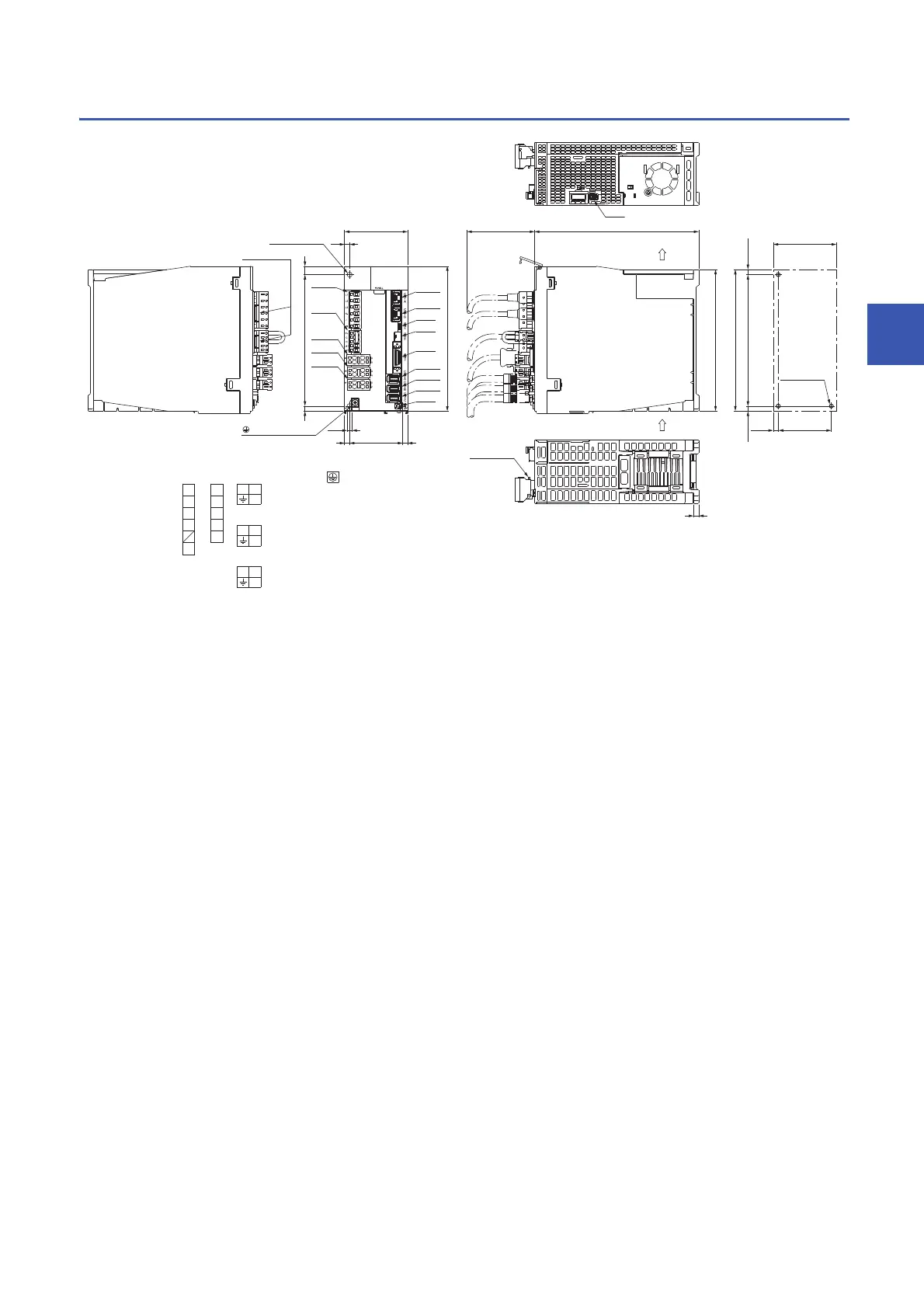

4 DIMENSIONS
4.3 MR-J5W_-_G_
109
4
MR-J5W3-222G_/MR-J5W3-444G_
6
10156
75
6
172
195
6
6 63 6
6
168
CNP1
CNP2
CNP3A
CNP3B
CNP3C
CN8
CN5
CN3
CN1A
CN1B
CN2B
CN2C
CN2A
CN4
CN6
156 ± 0.5
63 ± 0.5
PE
P4
L1
L3
L2
N-
CNP1 CNP2
P+
D
L21
C
L11
W
V
U
2
1
AB
CNP3A
CNP3B
W
V
U
2
1
AB
CNP3C
W
V
U
2
1
AB
6 mounting
hole
Grounding terminal
Locking tab
Locking tab
Approx. 80
Exhaust
Cooling
fan
Intake
Approx. 75
Approx.
6
Approx. 168
Approx. 6
Approx.
6
3-M5 screw
Mounting hole location diagram
Mounting screw
Screw size: M5
Tightening torque: 3.24 [N•m]
Screw size: M4
Tightening torque: 1.2 [N•m]
Terminal assignment
