WALL-MOUNTED Fixed Speed Heat PumpM series

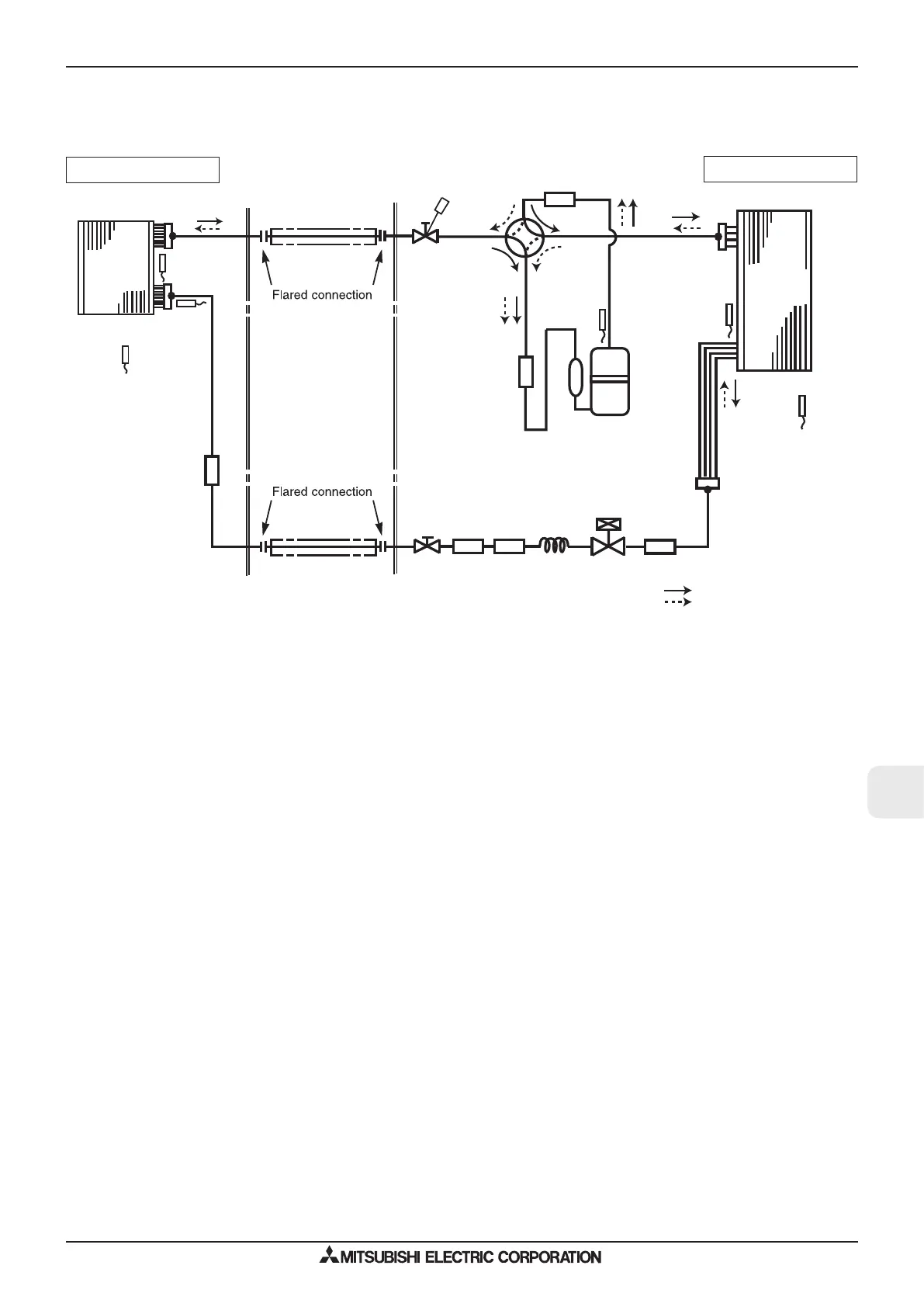

REFRIGERANT SYSTEM DIAGRAM
WALL- MOUNTED
C-55
Indoor
heat
exchanger
Room temperature
thermistor
RT11
Indoor coil
thermistor
RT13(sub)
Indoor coil
thermistor
RT12(main)
Strainer
#50
Outdoor
heat
exchanger
Defrost
thermistor
RT61
Discharge
temperature
thermistor
RT62
Stop valve
Stop valve
(with service port)
Capillary tube
:3.6:2.450
Refrigerant flow in cooling
Compressor
4-way valve
Refrigerant flow in heating
Refrigerant pipe :15.88
(with heat insulator)
Refrigerant pipe :9.52
(with heat insulator)
LEV
R.V. coil
heating ON
cooling OFF
Muffler
#100
Strainer
#100
Receiver
Muffler
Ambient
temperature
thermistor
RT63
Strainer
#100
INDOOR UNIT
MSH-GD80VB
OUTDOOR UNIT
MUH-GD80VB
Unit: mm
