42
MSZ-EF18VE2W MSZ-EF22VE2W MSZ-EF25VE2W MSZ-EF35VE2W MSZ-EF42VE2W MSZ-EF50VE2W
MSZ-EF18VE2B MSZ-EF22VE2B MSZ-EF25VE2B MSZ-EF35VE2B MSZ-EF42VE2B MSZ-EF50VE2B
MSZ-EF18VE2S MSZ-EF22VE2S MSZ-EF25VE2S MSZ-EF35VE2S MSZ-EF42VE2S MSZ-EF50VE2S

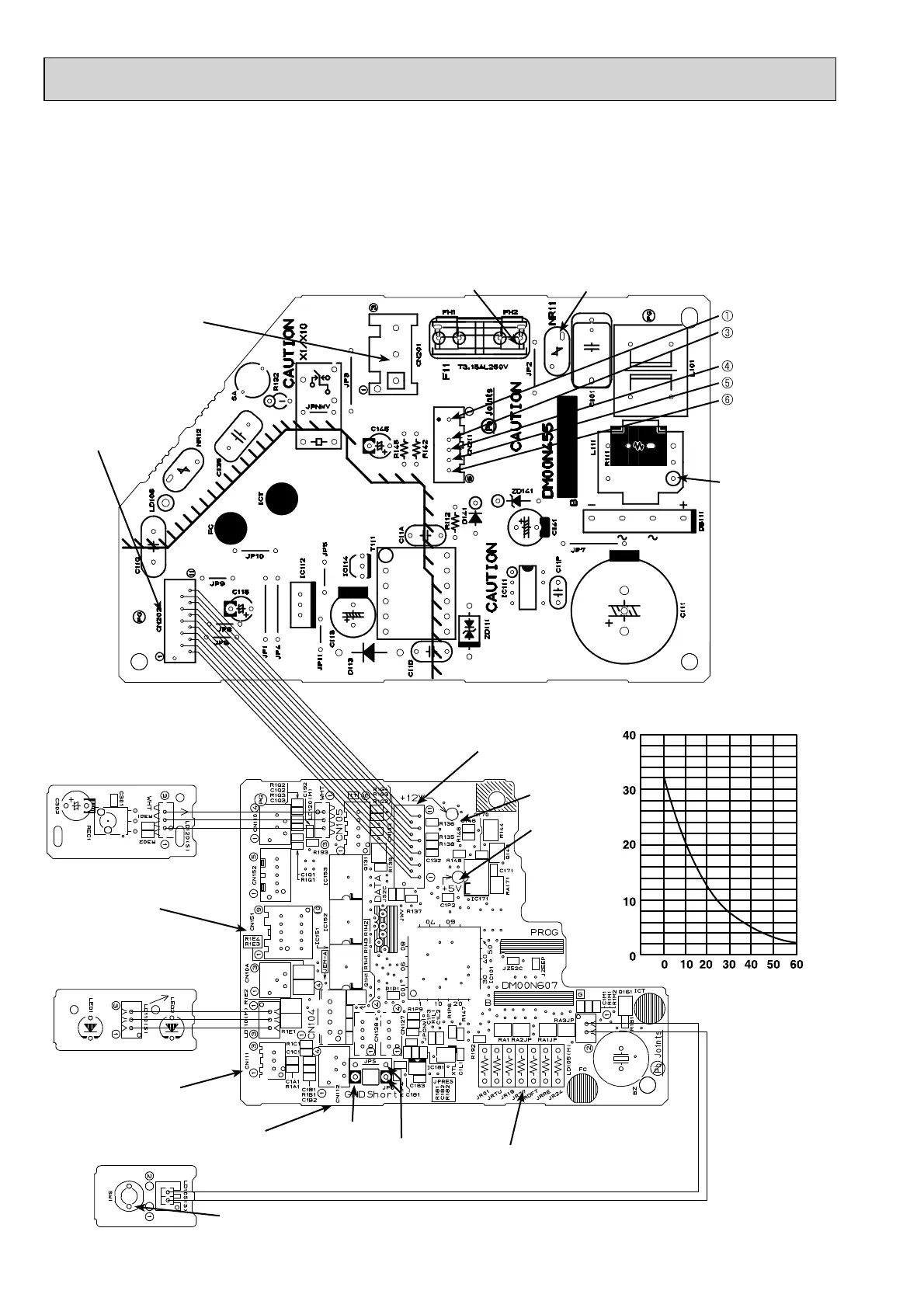

Room temperature thermistor (RT11)
Indoor coil thermistor (RT12, RT13)
Temperature (°C)
Resistance (kΩ)
Indoor electronic
control P.C. board
Indoor power P.C. board
Fuse (F11) Varistor (NR11) Indoor fan motor
(CN211)
325 V DC
(–) GND (high-
voltage DC)
15 V DC
(+)3-6 V DC
(+)0 or 15 V DC
Connector to terminal
block (CN201)
Connector to indoor
electronic control P.C.
board (CN202)
Receiver board
Display board
Switch board
Reactor (L111)
5 V DC
12 V DC
GND
Timer short mode
point JPG JPS (Refer
to 8-1.)
To disable "Auto restart function",
cut the Jumper wire to JR77.
(Refer to 8-4.)
Emergency operation
switch (E.O.SW) (SW1)
Connector to power
P.C. board (CN102)
Room temperature ther-
mistor RT11 (CN111)
Vane motor
(CN151)
Indoor coil ther-
mistor RT12,
RT13 (CN112)
MSZ-EF18VE3W MSZ-EF22VE3W MSZ-EF25VE3W MSZ-EF35VE3W MSZ-EF42VE3W MSZ-EF50VE3W
MSZ-EF18VE3B MSZ-EF22VE3B MSZ-EF25VE3B MSZ-EF35VE3B MSZ-EF42VE3B MSZ-EF50VE3B
MSZ-EF18VE3S MSZ-EF22VE3S MSZ-EF25VE3S MSZ-EF35VE3S MSZ-EF42VE3S MSZ-EF50VE3S
