APPENDIX 4.2 Forced stop input cable
Fabricate the forced stop input cable on the customer side.
Make the forced stop input cable within 30m(98.43ft.).

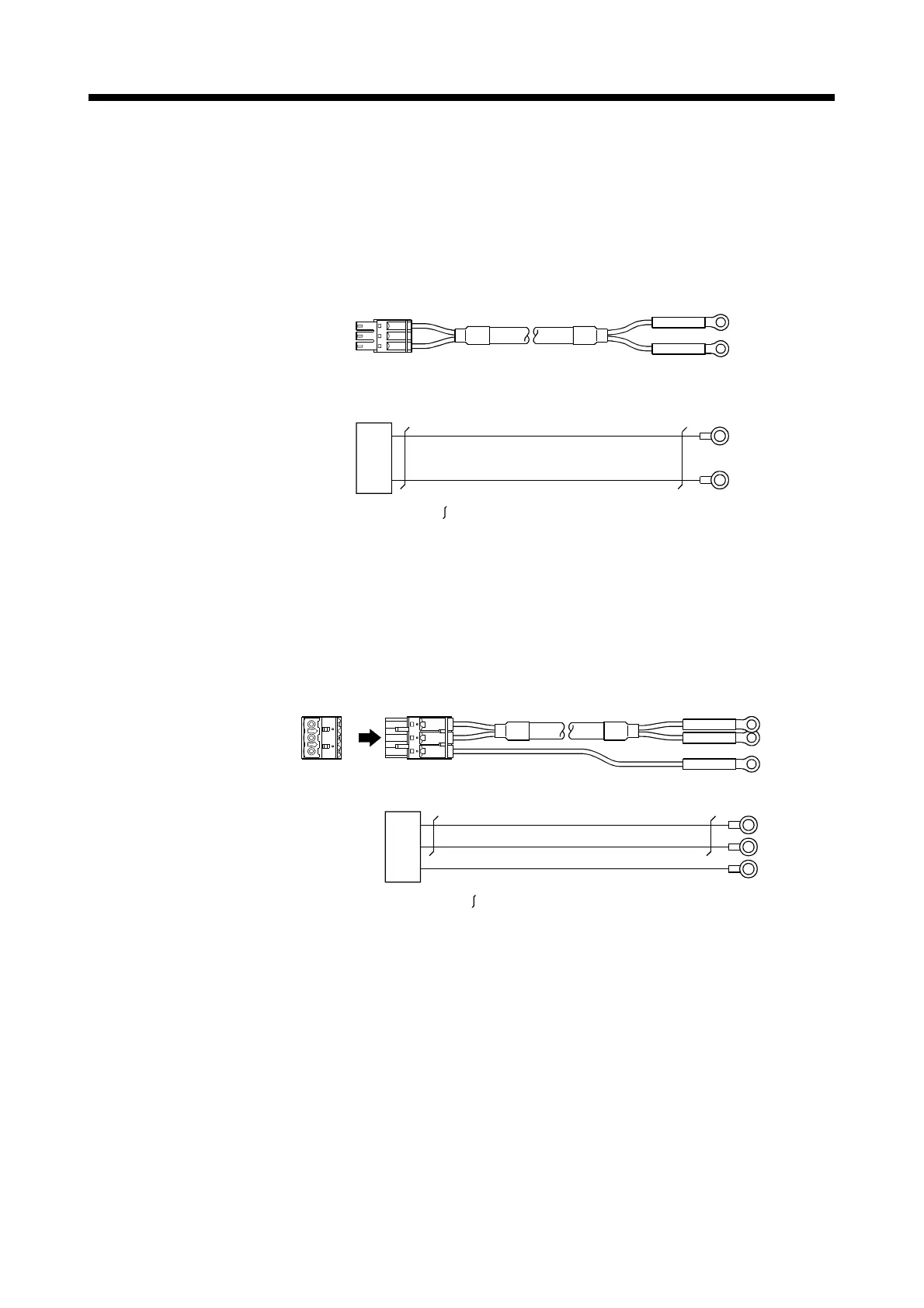

(1) Connection diagram
FK-MCP1.5/3-ST-3.81 (Connector)
EMI.COM
EMI
2
3
1
EMI.COM
EMI
2
3
1
Solderless terminal size: R1.25-35
(Note) : Use a cable of wire size AWG16 to AWG22.
: Twisted pair cable
Solderless terminal sideQ170MSCPU side
APPENDIX 4.3 24VDC power supply cable
Fabricate the forced stop input cable on the customer side.
(1) Connection diagram
24V(+)
FG
2
1
3
24G
A
(Note) : Use a cable of wire size AWG12 to AWG22.
: Twisted pair cable
Solderless terminal sideQ170MSCPU side
Solderless terminal size: R1.25-35FKC2.5/3-ST-5.08 (Connector)
2
1
3
View A
24V(+)
FG
24G
