4:3 MODE

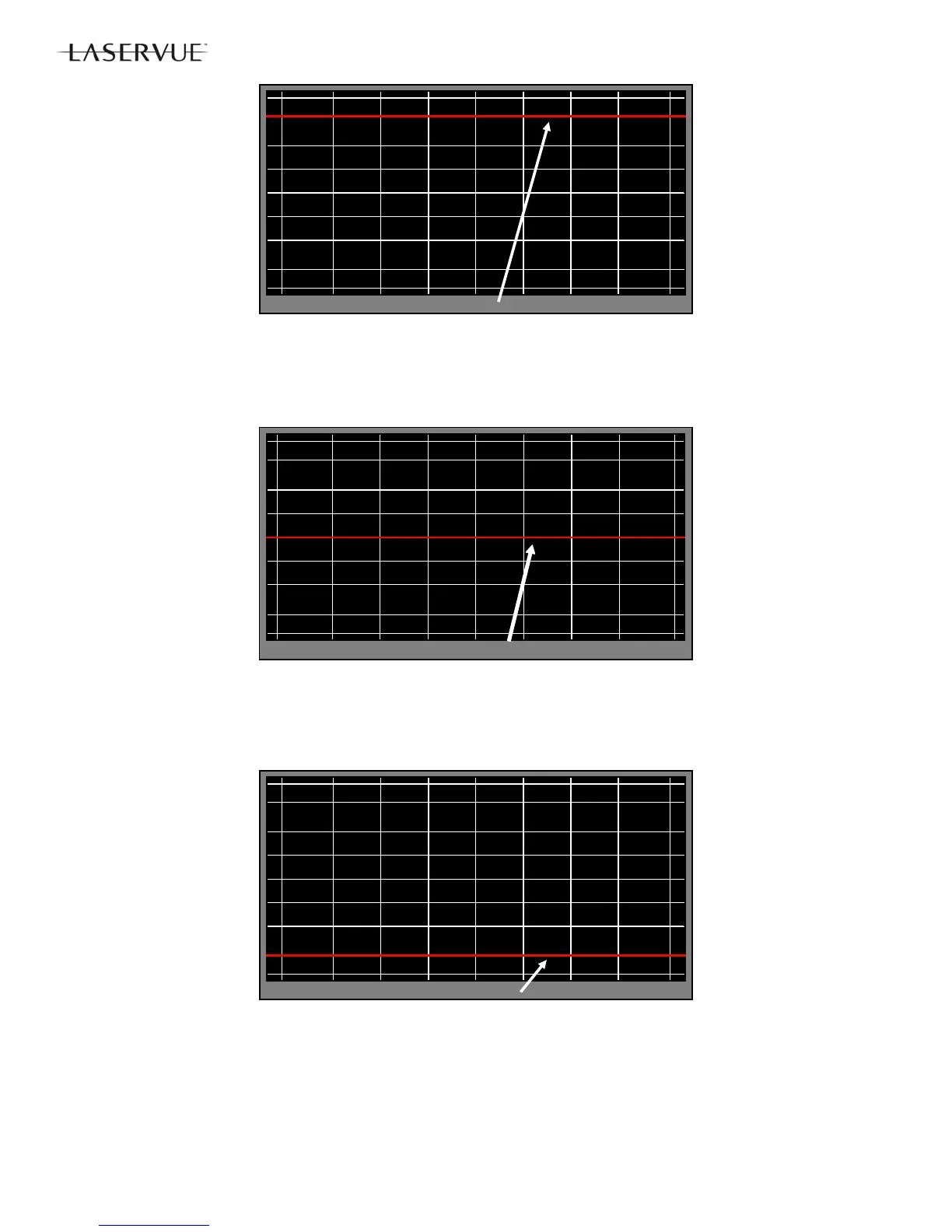

Select Straightest Red Line (Top)

4. In the Top 16:9 Alignment Mode, pressing <> or <> will cause the geometry pattern to be displayed

with 30 different preset amounts of correction to the Top Red Line. Toggle through them until you find the one

with the straightest Red Line. Again, count the patterns as you cycle through them. When you find the pat-

tern with the straightest line, press <VIDEO>. The Center Red Line will be displayed in the pattern.

6. In the Bottom 16:9 Alignment Mode, pressing <

> or <> will cause the geometry pattern to be dis-

played with 30 different preset amounts of correction to the Bottom Red Line. Toggle through them until you

find the one with the straightest Red Line. When you find the pattern with the straightest line, press

<VIDEO>. Press <ENTER> then <EXIT> to exit and save the 4:3 and 16:9 data.

7. Select the Geometry Test Pattern (See HVPOS). If Geometry is acceptable, press <EXIT> to quit.

5. In the Center 16:9 Alignment Mode, pressing <

> or <> will cause the geometry pattern to be displayed

with 30 different preset amounts of correction to the Center Red Line. Toggle through them until you find the

one with the straightest Red Line. Again, count the patterns as you cycle through them. When you find the

pattern with the straightest line, press <VIDEO>. The Bottom Red Line will be displayed in the pattern.

Select Straightest Red Line (Center)

4:3 MODE

Select Straightest Red Line (Bottom)
