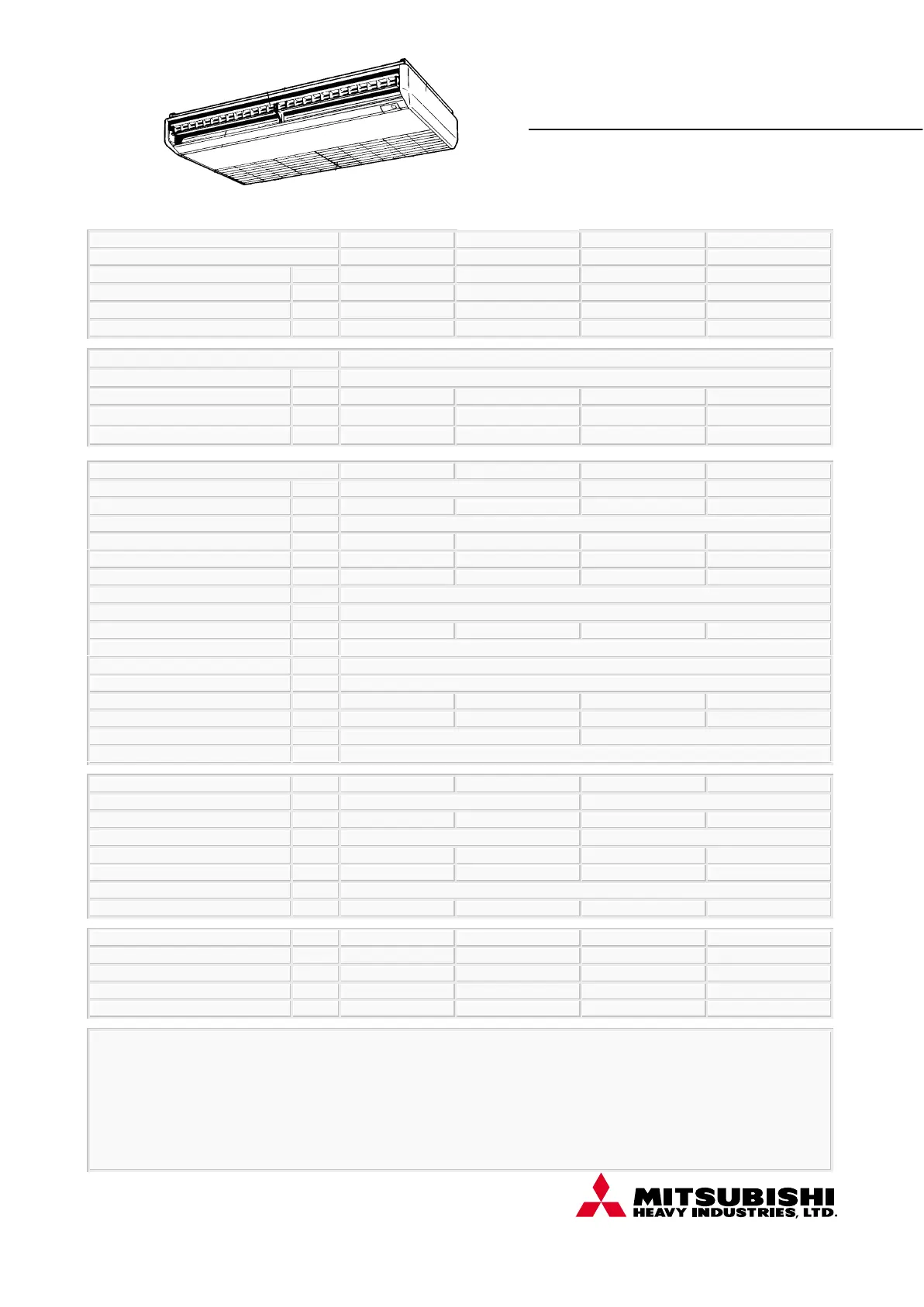

Mitsubishi Heavy Industries FDT408-A Instruction Manual

13
FDEN - 8 Series (ceiling)
FDC - 6 Series (outdoor)
SYSTEM REFERENCE 3086
3086 (3ph)
4086 5086
PERFORMANCE
Note
Cooling performance nom. (1) KW 7.10 7.10 10.20 12.50
Cooling UK Conditions (2) KW 6.82 6.82 9.79 12.00
Sensible Cooling UK (3) KW 5.05 5.05 7.05 8.28
Heating Performance (HP only) KW 7.30 7.30 10.50 12.80
ELECTRICAL DATA
System Power connection Mains to outdoor unit first. Interconnecting wiring - 3 wires + Earth, for cooling, 5 wires + Earth, for Heat Pump
Run current - cooling A 15.6 5.3/ph 7.3 9.8
Start current max. L R A A 89 43/ph 45/ph 68/ph
Recommended Fuse Rating (Local) (5) A 30 15/ph 15/ph 20/ph
INDOOR UNIT ref: FDT 8 Series FDEN308 FDEN308 FDEN408 FDEN508
Dimension - Unit H x W x D mm 184 x 1260 x 650 239 x 1260 x 650 239 x 1470 x 650
Net Weight kg 27 27 34 40
Fan Specification Multi-blade centrifugal fan x 4
Motor Rating W 35 x 2 35 x 2 33 + 55 55 x 2
Airflow (6) High / low speed m
3
/s 0.28 / 0.19 0.28 / 0.19 0.43 / 0.31 0.46 / 0.33
Sound level at 1 metre below - high / low dBA 43 / 38 43 / 38 49 / 43 50 / 44
Safety Control Internal thermostat for fan motor. Frost protection thermostat.
Condensate Lift Pump – Max lift mm N / A
Condensate Connection Size o.d. mm 20 20 20 20
Fresh Air Inlet facility Aperture required in rear section of unit – max 10% of unit air volume
Exhaust Air Duct facility N / A
Refrigerant Control Capillary tube.
Pipe Termination Sizes o.d. ins 5/8 5/8 3/4 3/4
o.d. ins 3/8 3/8 3/8 3/8
Filter Polypropylene net x 2 (Washable) Polypropylene net x 3 (Washable)
Remote Control (wireless infra red) Multi function hand held controller, supplied with wall bracket
OUTDOOR UNIT ref: FDC
6
FDC306 FDC306
(
3
p
h
)
FDC406
(
3
p
h
)
FDC506
(
3
p
h
)
Dimension - Unit H x W x D mm 844
X
950
X
340 1250
X
950
X
340
Net Weight kg 69 69 86 91
Fan Specification
Propeller Fan x 1 Propeller Fan x 2
Motor Rating W 60
X
1 60
X
1 60
X
2 60
X
2
Sound level at 1 metre in front dBA 56 56 57 59
Refrigerant R22
ONLY
Refrigerant factory charge kg 1.3 1.3 1.6 2.3
REFRIGERANT PIPING
Pipe Termination Sizes o.d. ins 5/8 5/8 3/4 3/4
o.d. ins 3/8 3/8 3/8 3/8
Maximum pipe run m 30 30 30 30
Max height diff. Outdoor unit above / below m 15 15 15 15
NOTES 1
Nominal cooling rated at ISO-A, JIS B8616 Outdoor: 35
o
C DB / 24
o
C WB Indoor: 27
o
C DB / 19
o
C WB
2
UK Cooling Outdoor: 30
o
C DB / 20
o
C WB Indoor: 23
o
C DB / 17
o
C WB
3 Sensible Cooling calculated at UK conditions, at standard air volume.
4
Heating Performance rated at: Outdoor 7
o
C DB / 6
o
C WB Indoor: 20
o
C DB
5 Power supply to outdoor unit. Use motor rated fuse or MCB. Requirement may vary depending on site conditions.
6
CEN & HEN = 1ph CES & HES = 3ph.
8 Cooling and heat pump systems available in R22 models 2088 & 2588.
Technical data for R22 and R407C Systems
