5. FUEL AND EMISSION CONTROL SYSTEM

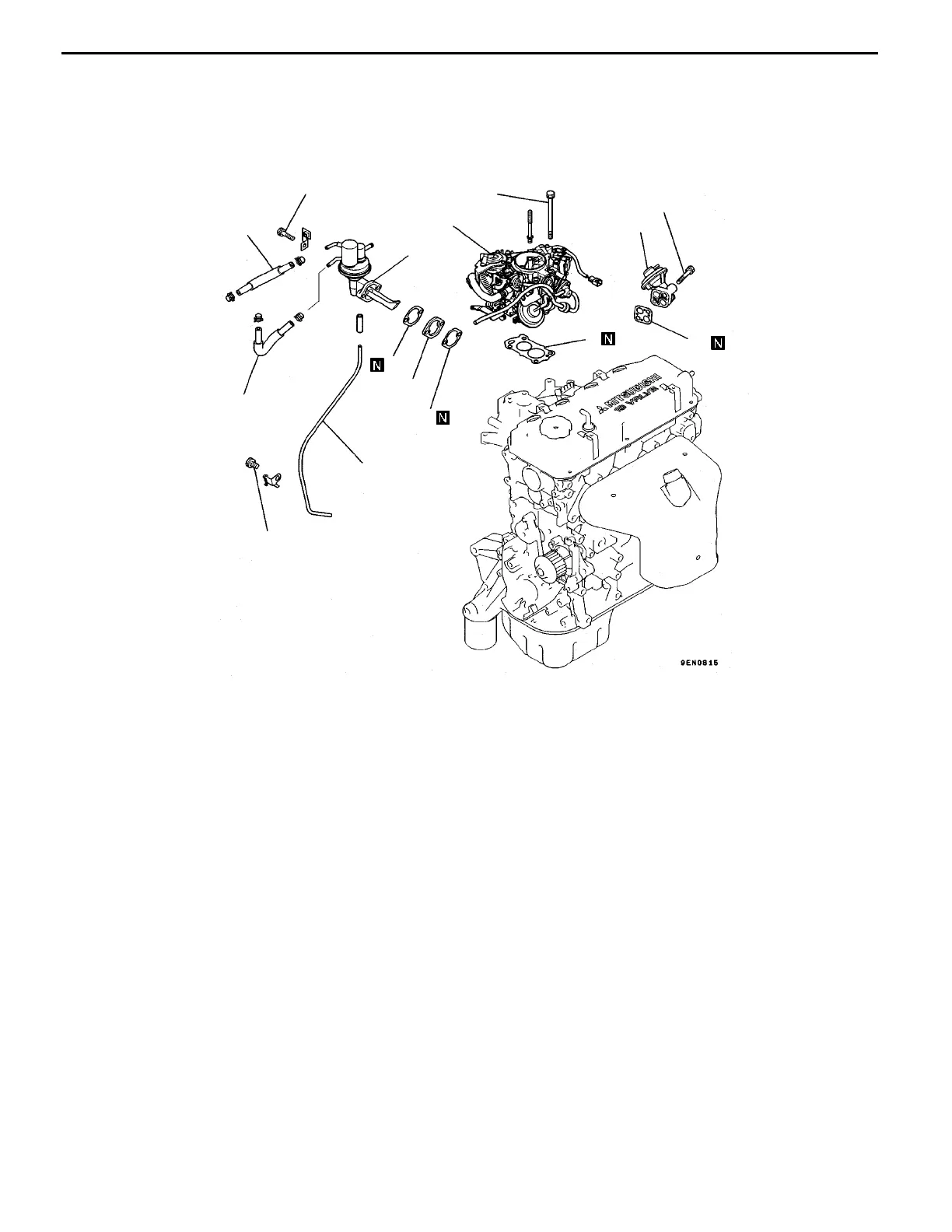

REMOVAL AND INSTALLATION <SOHC-CARBURETOR>
17 Nm
21 Nm
18 Nm
8
11
10
1
9
5
6
7
3
2
21 Nm
4
Removal steps
1. Breather tube
2. Fuel hose
3. Fuel hose
4. Fuel pump
5. Gasket
6. Insulator
7. Gasket
8. Carburetor
9. Gasket
10. EGR valve
11. Gasket
