13A-10

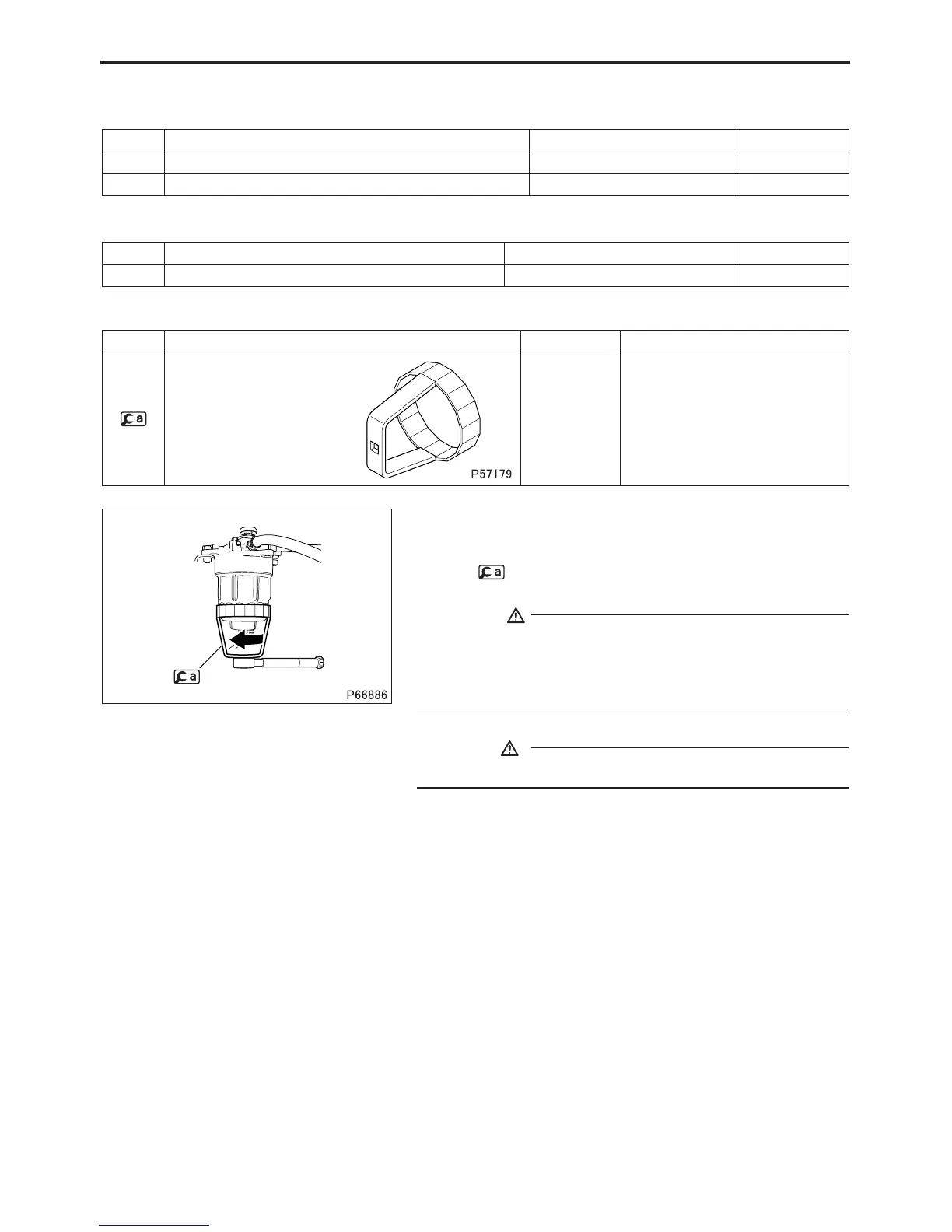

2. Fuel Filter Replacement
Tightening torque (Unit: N·m {kgf·m})
Lubricant and/or sealant
Special tools
[Removal]
• Drain fuel from the case by loosening the water separator sen-
sor.
• Using , remove the case.
WARNING
• Fuel is highly flammable. Keep it away from flames and
sources of heat.
• Thoroughly wipe up any spilled fuel. Otherwise, it may
catch fire.
CAUTION
• Be careful not to damage the case.
Mark Parts to be tightened Tightening torque Remarks
– Water separator sensor 5
± 1 {0.5 ± 0.1} –
– Case 30
± 2 {3.1 ± 0.2} –
Location Points of application Specified lubricant and/or sealant Quantity
– O-ring Engine oil As required
Mark Tool name and shape Part No. Application
Filter wrench MH063203 Removal and installation of case
GENERAL INSPECTION AND ADJUSTMENT
