(2) Selecting the input units
Click [Select Input Units] to display one of the following screens, depending on the selected Input Category.
Note: Operation of the units under the control of different expansion controllers can be selected only when the settings
are made for AE-200.

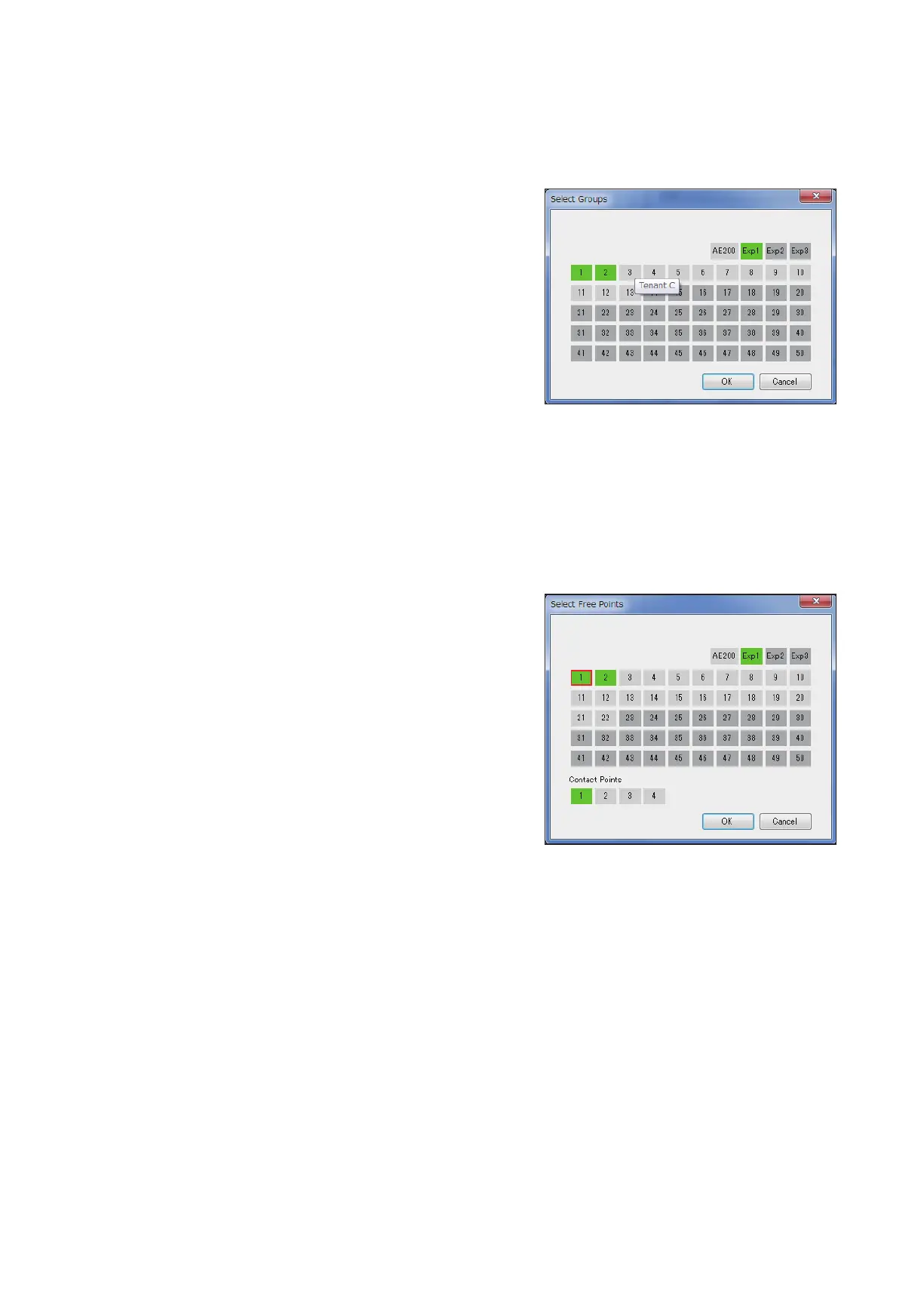

(A) When [Group (On/Off)], [Group (Mode)], or [Group (Error/Normal)] is selected as the Input Category
The [Select Input Groups] screen will appear.
Select the group numbers of the input unit groups. The
selected group numbers will appear with a yellow-green
background.
Click again to deselect. The deselected group numbers will
appear with a light-gray background.
To deselect all selected groups, click [Reset selections].
To select a block of groups, click [Select a Block]. Select a
block name and press [OK]. The groups that are registered
to the block will appear with a yellow-green background.
Note: If the Input Category is set to [Group (On/Off)] or [Group (Error/Normal)], air conditioning unit groups, LOSSNAY
unit groups, Air To Water (PWFY) unit groups, HWHP (CAHV, CRHV) unit groups, chiller unit groups, and general
equipment (connected via DIDO controller PAC-YG66DCA) groups can be selected.
If the input category is set to [Group (Mode)], air conditioning unit groups and LOSSNAY unit groups can be
selected.
Note: Different types of groups (air conditioning unit groups, LOSSNAY unit groups, or general equipment (connected
via DIDO controller PAC-YG66DCA) groups) cannot be simultaneously selected.
(B) When [Free Input Points (On/Off)] is selected as the Input Category
The [Select Addresses of Input Units] screen will appear.
Select the addresses of the indoor units to which the
general equipment is connected, and select contact points
for each indoor unit.
The selected unit address will appear with a red frame. The
unit addresses whose contact points have been set will
appear with a yellow-green background.
