3-2
ELECTRICAL SYSTEM

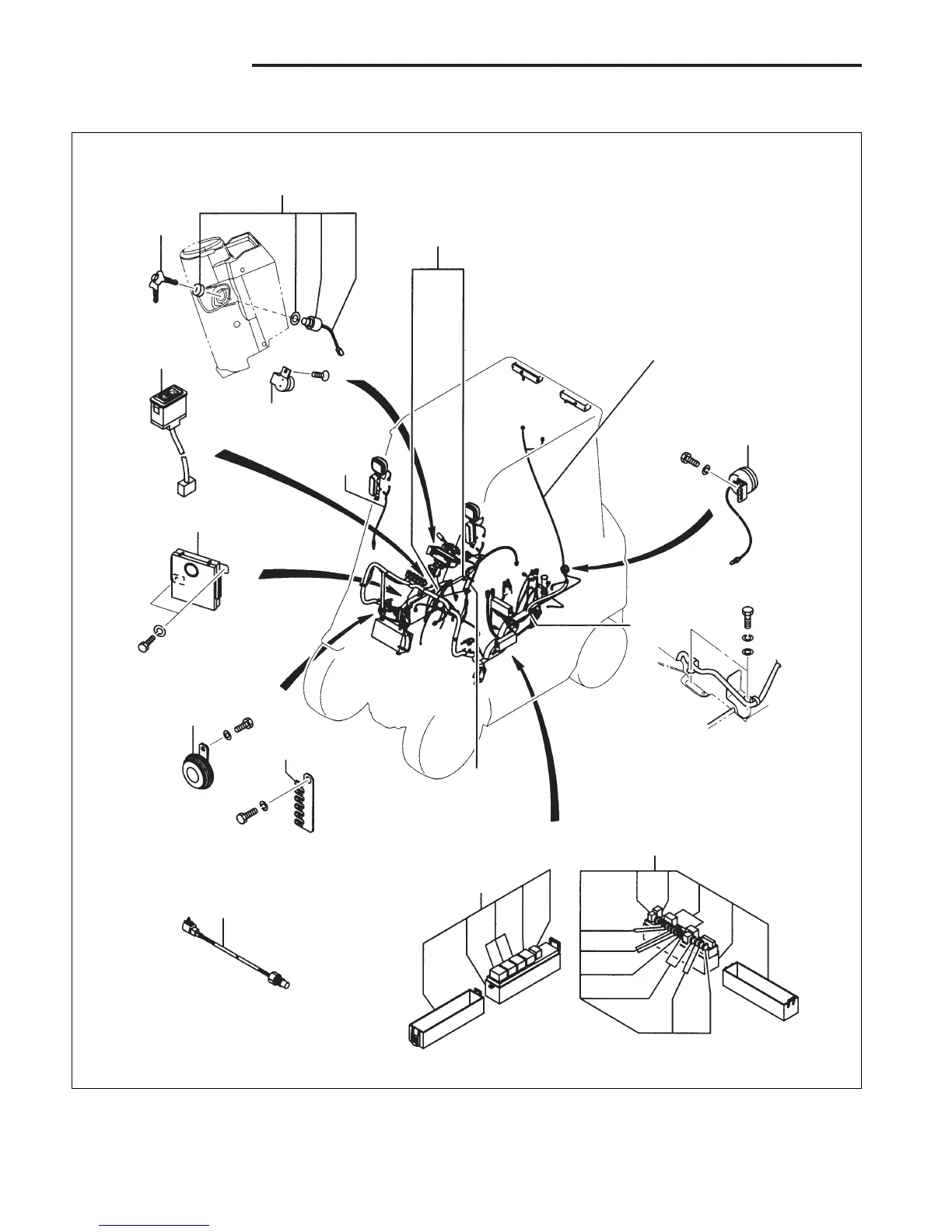

Chassis Electrical Devices Wiring Outline (No. 2)
Starter switch
Key
Select switch
Warning buzzer
Harness, Front
combination
Controller
Horn
Connector
bracket
Vehicle speed sensor
(Pulse generator)
Transmission
Relay box,
Relay
Harness, Front
combination
Fuse box,
Fuse
Battery seat
Clip
Back buzzer
Harness,
Rear combination
Main harness
209621
