106

LED1

JSW11 JSW10

JSW11

Match to the PCB conditions

that existed before replacement.

JSW10

Match to the PCB conditions

that existed before replacement.

( )

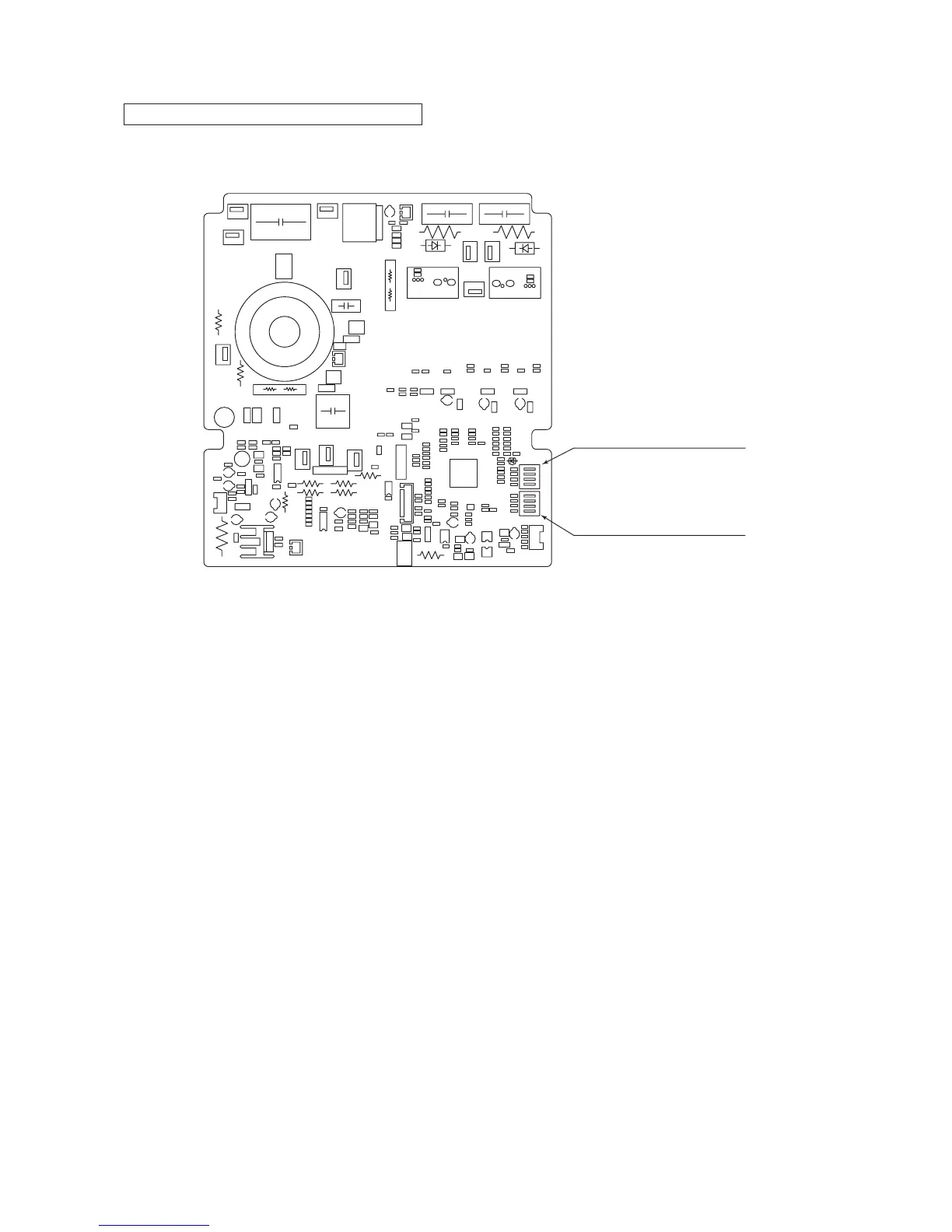

Parts layout on the outdoor unit inverter PCB

Apply the silicone grease supplied with the component uniformly to the surface of the power transistor on the new PCB, then mount it on the PCB. If the grease

is not applied, the power transistor may be damaged. Use all the silicone grease.

Tighten the power transistor mounting screws of the inverter PCB, and connect the terminal block, faston terminals and connectors. After connection, make sure

tightening was not forgotten and parts were not partially inserted only. In particular, make sure the power transistor is not loose by tightening the mounting

screws securely. If they are not tightened, the power transistor may be damaged.

Notes(1)

(2)
