(c) Installation preparation
1) Remove the air return grille.
Slide the stoppers (4 places).
Filter
Pin
Take out the pins (4 or 6 places).
2) Remove the side panels.
Take out the screws, then slide the side panels in the arrow direction to remove them.
6) This unit uses a microcomputer as a control device. Therefore avoid installing the unit near the equipment that generates
strong electromagnetic waves and noise.

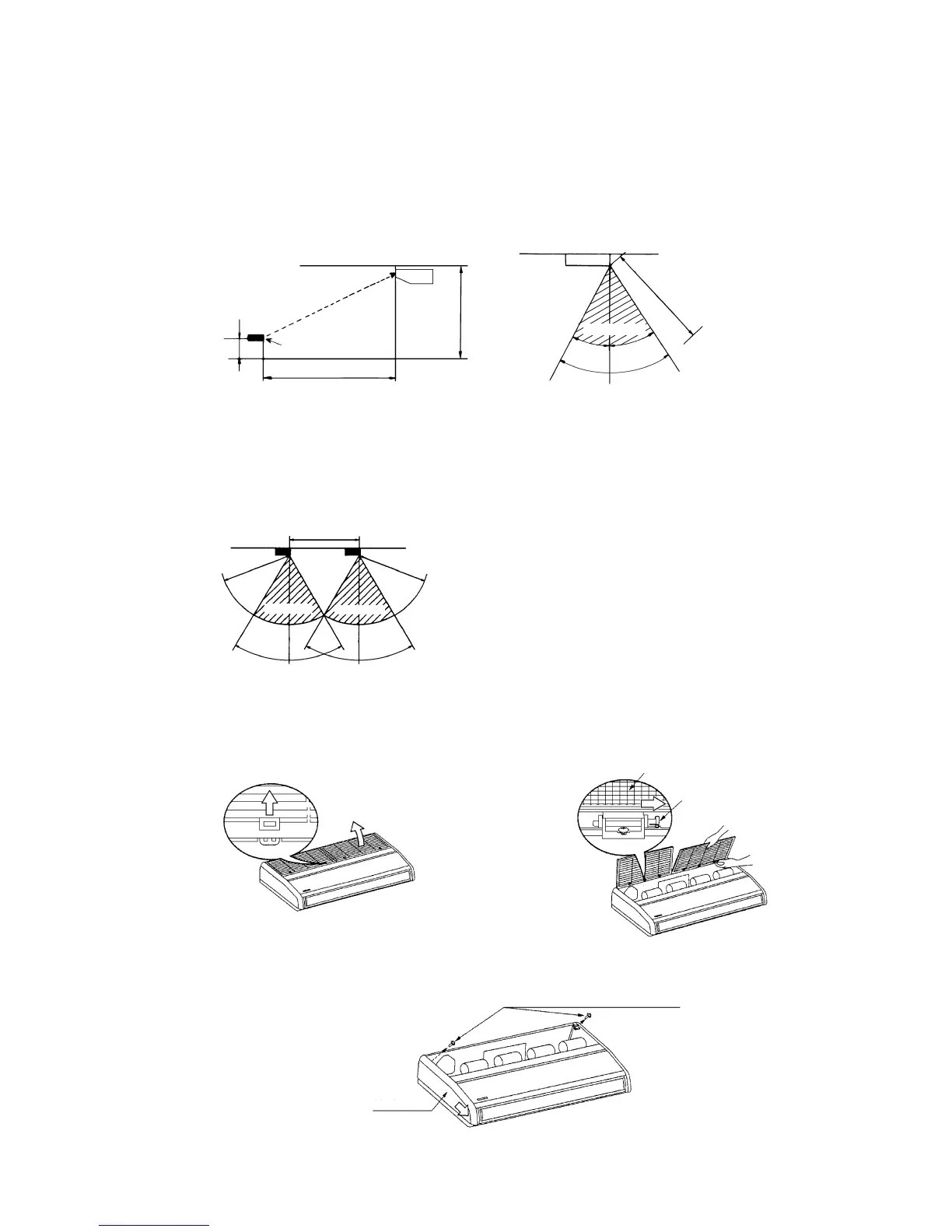

(b) Wireless remote control unit operation distance.
1) Standard signal receiving range.
[Condition] Illuminance at the recelver area: 360 lux.
(When no llghting fixture is located with in 1 m of indoor unit in an ordinary office)
2) Points for attention in connecting a plural number of indoor units.
[Condition] Illuminance at the recelver area: 360 lux.
(When no lighting fixture is located within 1 m of indoor unit in an ordinary office)
When the remote control unit is used with the aforementioned interference-prevention setting, a minimum
distance guaranteening the prevention of unintended unit responses is 5 m
a) Please operate remote control unit switches with the unit faced
correctiy toward the indoor unit's receiver section.
b) Effective operation distance can vary with the luminance around
the receiver and the reflection from walls of the room.
c) When the receiver is exposed to intensive light such as from the
direct sun or a strong light, it may become operable only from a
short distance or unable to receive signals at all.
Floor sarface
1 m
2.4 m
Within 5 m
Wireless remote
control unit
Ceiling sur face
(Top view)
5 m
60°
Receivalle range
(Top view)
5 m
5 m
60°
60°
Receivable range
Receivable range
5m
