Service
-
191
-
'10
•
HM-T-149
FDCW100VNX

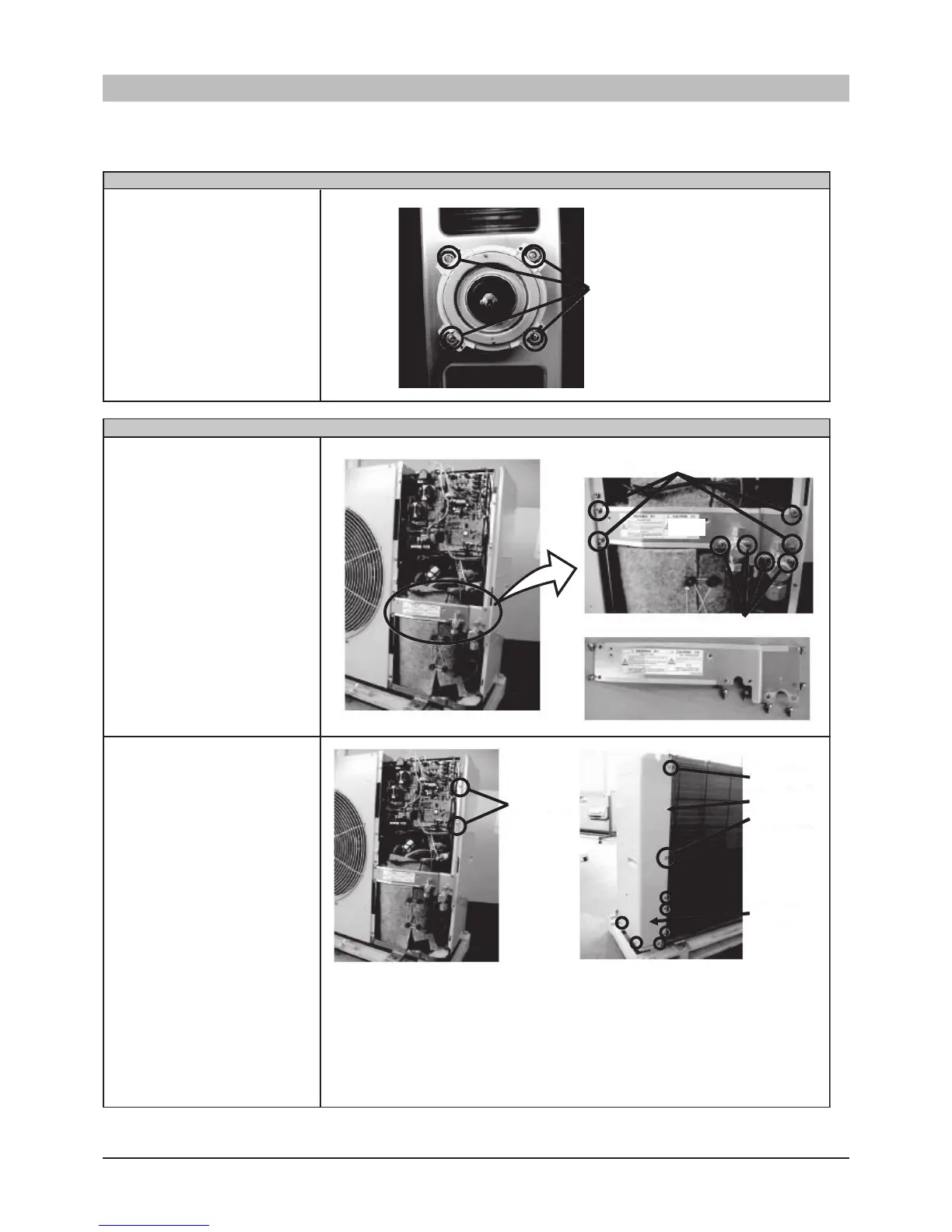

Fan and fan motor (FMo1)
5.
Loose 4 screws
6.
Remove the fan motor
Compressor (CM)
1.
Loosen screws and remove
the service panel and top
panel.
2.
Loosen 4 short screws and
4 long screws and then
remove the bar for easy
access to the compressor
.
3.
Loosen screws and remove
the side panel
4 screws
Bar
2 screws (short)
7 screws (short)
1 screw (long)
Rear panel
Side panel
4 screws (short)
4 screws (long)
Component replacement
191
