HM-T-149A
T
echnical data
2

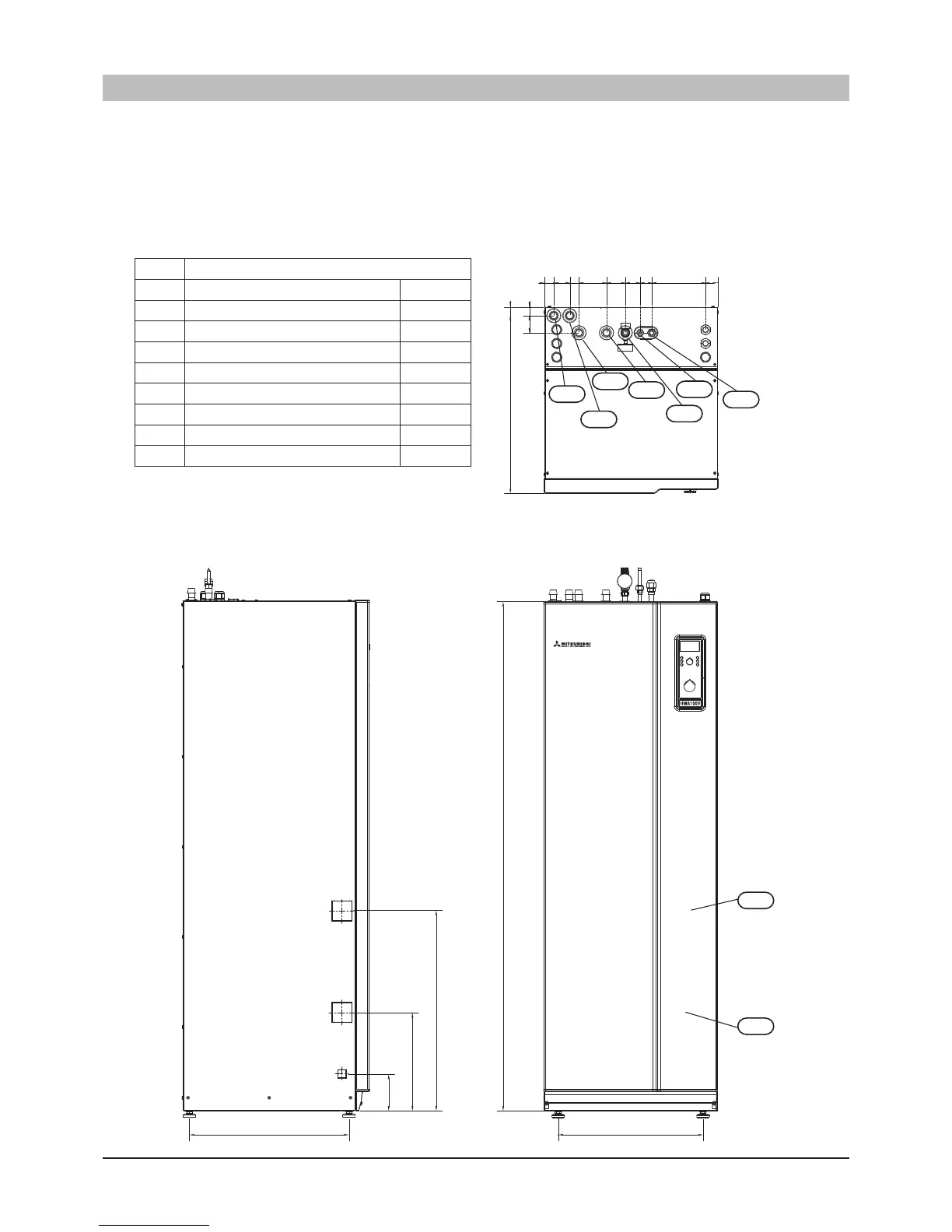

Dimensions
Indoor unit
HMA100V
HMA100VM
350
337
127
550
1760
500
32
32
55
95
65
52
185
40
(42)
645
30
60
XL4
XL2
XL3
XL1
XL13
XL15
XL14
XL8
XL9
Dimensions
Symbol
contents
XL1
Climate system supply
22 mm
XL2
Climate system return
22 mm
XL3
Cold water
22 mm
XL4
Hot water
22 mm
XL8
External heat source in
G1 int
XL9
External heat source out
G1 int
XL13
Liquid line refrigerant
3 / 8˝
XL14
Gas line refrigerant
5 / 8˝
XL15
Connection safety valve, manometer
Back
Front
-
14
-
229
231
