AERIAL
@ 75 ohm coaxial cable
ENGLISH
75 ohm coaxial
S-video cable
Stereo audio cable

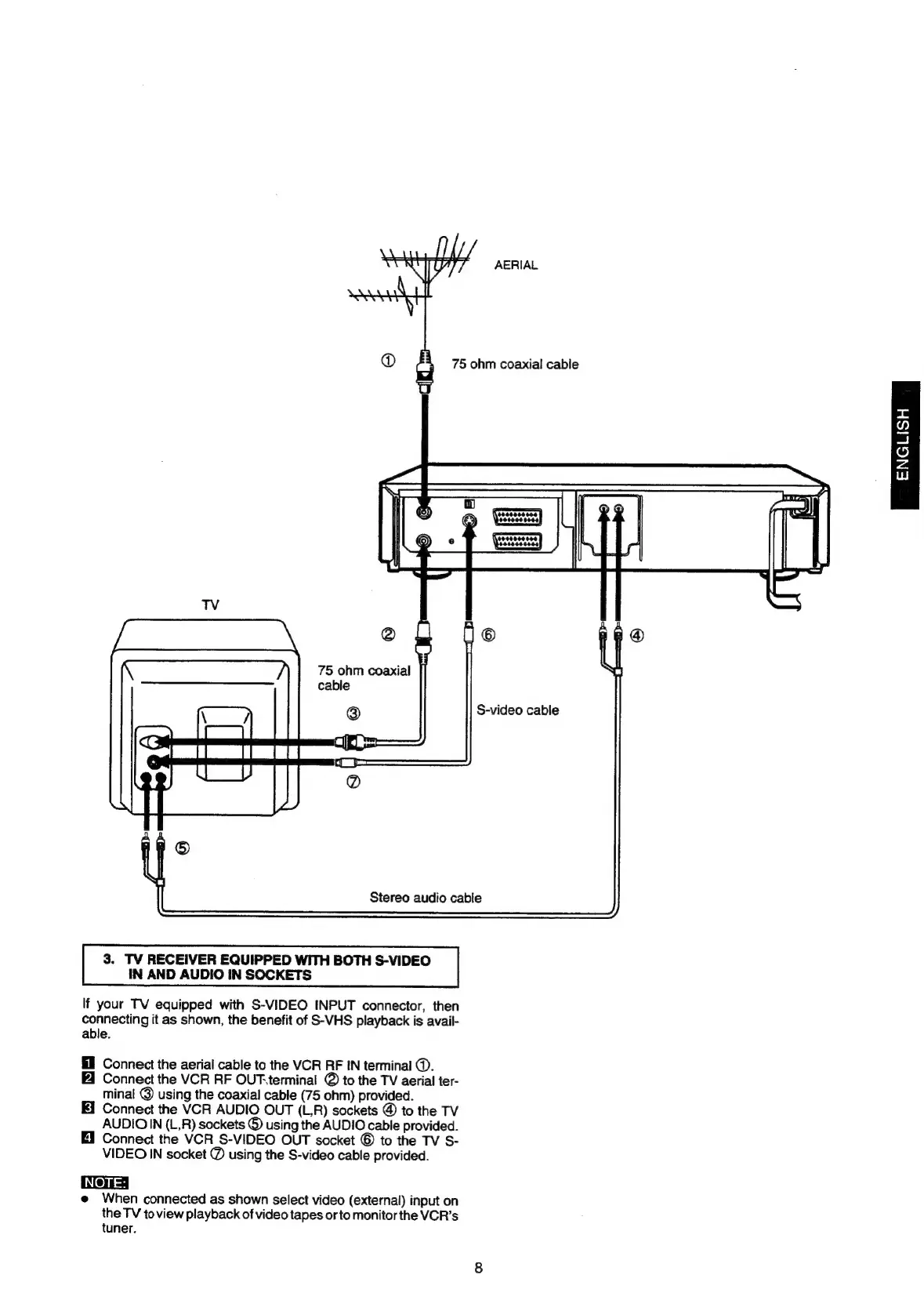

3. TV RECEIVER EQUIPPED WITH BOTH S-VIDEO
IN AND AUDIO IN SOCKETS
If your TV equipped with S-VIDEO INPUT connector, then
connecting it as shown, the benefit of S-VHS playback is avail-
able.
Connect the aerial cable to the VCR RF IN terminal @.
Connect the VCR RF OUT terminal @ to the TV aerial ter-
minal @ using the coaxial cable (75 ohm) provided.
Connect the VCR AUDIO OUT (LR) sockets @ to the TV
AUDIOIN (L,R) sockets © using the AUDIO cable provided.
EI Connect the VCR_S-VIDEO OUT socket © to the TV S-
VIDEO IN socket @ using the S-video cable provided.
NOTE:
@
When
connected
as
shown
select
video
(external)
input
on
the TV toview playback of video tapes or to monitor the VCR’s
tuner.
