Mitsubishi Mirage 2015

TIRE PRESSURE MONITORING SYSTEM (TPMS)
TSB Revision
WHEEL AND TIRE
31-49
REMOVAL SERVICE POINT
.
<<A>> TPMS TRANSMITTER REMOVAL
CAUTION
Be careful not to damage the TPMS transmitter.

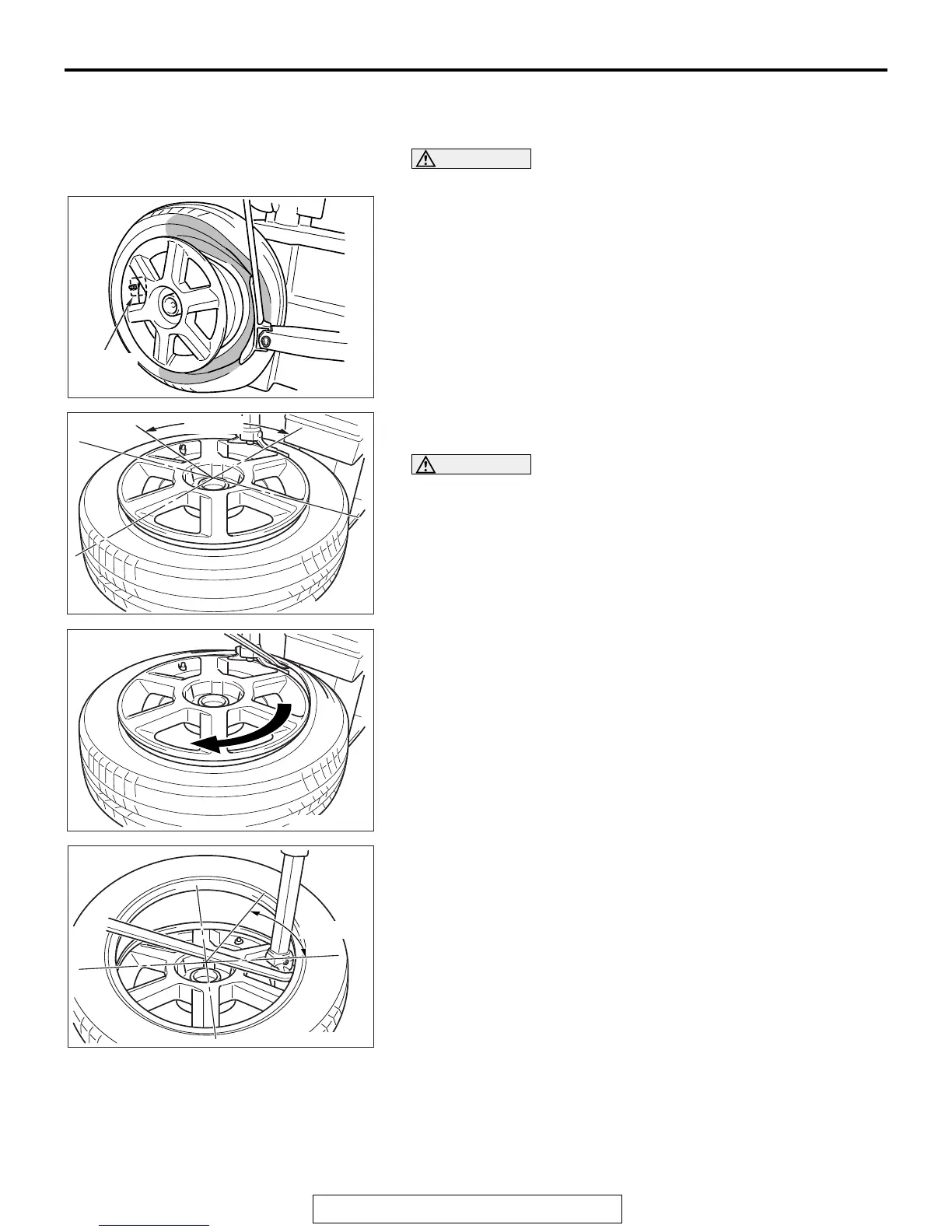

1. Fix the tire on a tire changing machine. Then apply a bead
breaking shoe to the shown range to disengage the tire
bead from the wheel rim.
NOTE: For the opposite side, repeat the same procedure.
2. Fix the tire on a tire changing machine so that the TPMS
transmitter is positioned as shown.
CAUTION
Do not allow any impact or shock to the TPMS transmitter
with a tire lever or tire bead.
3. Use a tire lever to disengage the upper bead.
4. Rotate the tire in the direction of arrow to disengage the tire
bead from the wheel.
5. Fix the tire on a tire changing machine so that the TPMS
transmitter is positioned as shown.
ACC02921
AB
TPMS
transmitter
ACC02922
AB
0 to 30º
ACC02923
AC
ACC02926
AC
0 to 30º
