Installation
-
59
-
'10 • HM-T-149
Indoor unit installation
General information
Transport and storage
Indoor unit can be transported vertically and must be stored
vertically and in dry conditions.
HMS140V can be transported and stored vertically or holizontally.

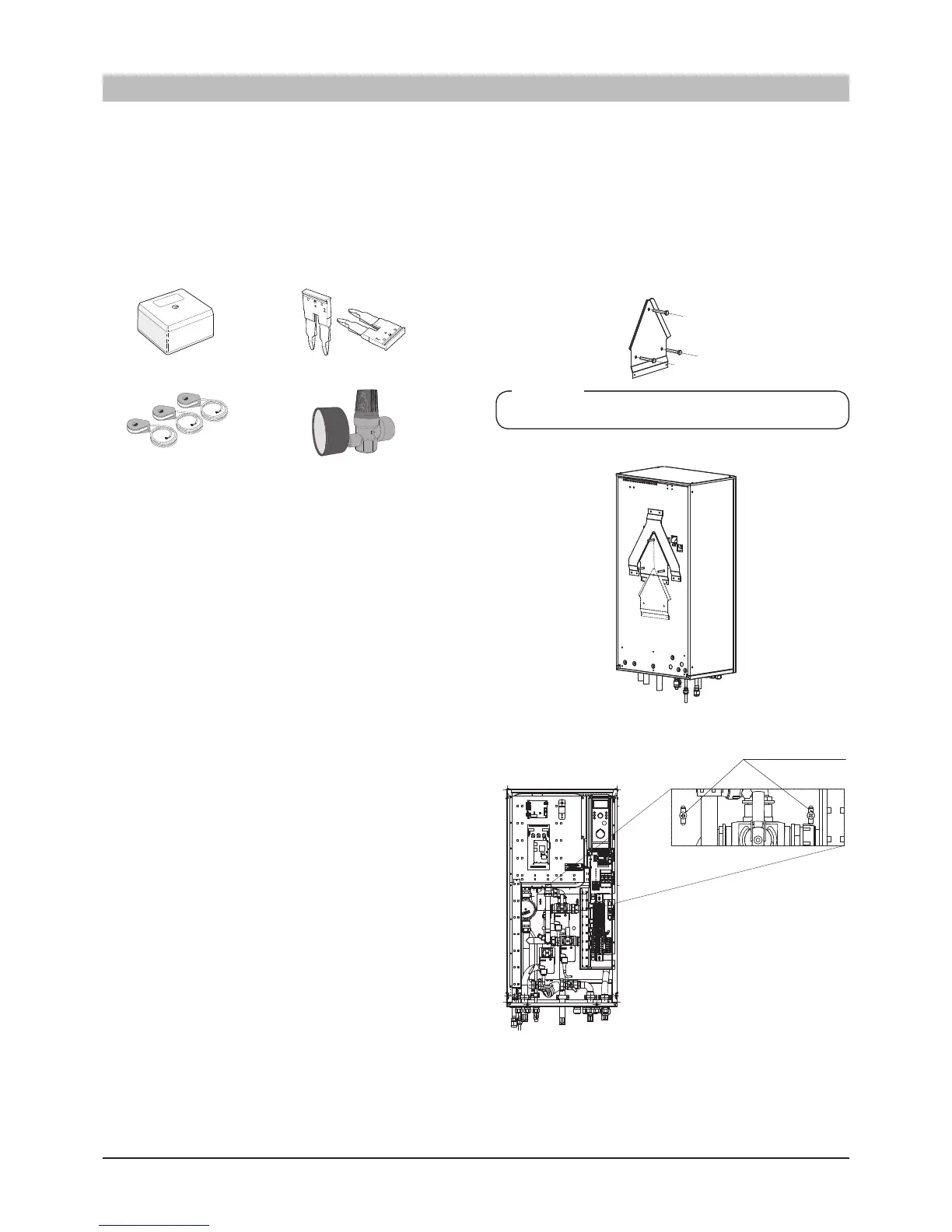

Supplied components
LEK
LEK
LEK
NIBE AB
Utetemperatur givare
Outdoor temperature sensor
Aussentemperatur fü
hler
Artikel 018764
Straps for 1 phase connectionOutdoor sensor
LEK
LEK
LEK
Safety valve with manometer
(HMA100V(M) only)
Current sensor, 3 phase
The enclosed kit is located behind the front service cover in indoor unit.
Assembly
■ Itisrecommendedthat indoor unitis installedin aroom
withexistingoordrainage,mostsuitablyinautilityroom
or boiler room.
■ The surface mustbefirm, preferablyaconcreteflooror
foundation.Forwallmountunit,thesurfacemustbef irm,
f latandvertical,preferablyaconcretewall.
■ Installindoorunitwithitsbacktoanoutsidewall,ideally
in a room where noise does not matter. If this is not
possible,avoidplacingitagainstawallbehindabedroom
or other room where noise may be a problem.
■ Floor standing indoor unit can be aligned using the
adjustable feet.
■ Route pipessothey arenotfixedto aninternalwall that
backs on to a bedroom or living room.
■ For
HMA100V and HMA100VM, ensure that there is
approx. 500 mm free space in front of and 220 mm above
the product for any future service.
■ For
HMS140V ensure that there is approx. 1000 mm free
space in front and 500 mm above and below the product for
any future service.
■ For
HMS140V be sure to connect a tank on HW port even if
HW application is not used.
■ For
HMS140V install tank unit and its pipings to indoor
unit indoors in order to avoid icing.
■ ForHT30,MT300andMT500,ensurethatthereisapprox.
600 mm free space to pull out immersion heater for
replacement.
Hanging indoor unit on a wall (HMS140V)
1. Ensure the final product position keeps the required
clearance for installation and servicing.
2. Place the bracket attached onto the wall so that the hydrobox
is not tilted and fix it with 3 deck screws on the wall.
Choose appropriate size and material of screw according to
the material of the wall so that the indoor unit would not
fall down.
3. Hang indoor unit on bracket.
4. fix indoor unit on bracket with screws attached.
Indoor unit installation
NOTE
Indoor unit weighs 60kg excluding water inside.
FASTEN THE SCREWS
