[12]-50

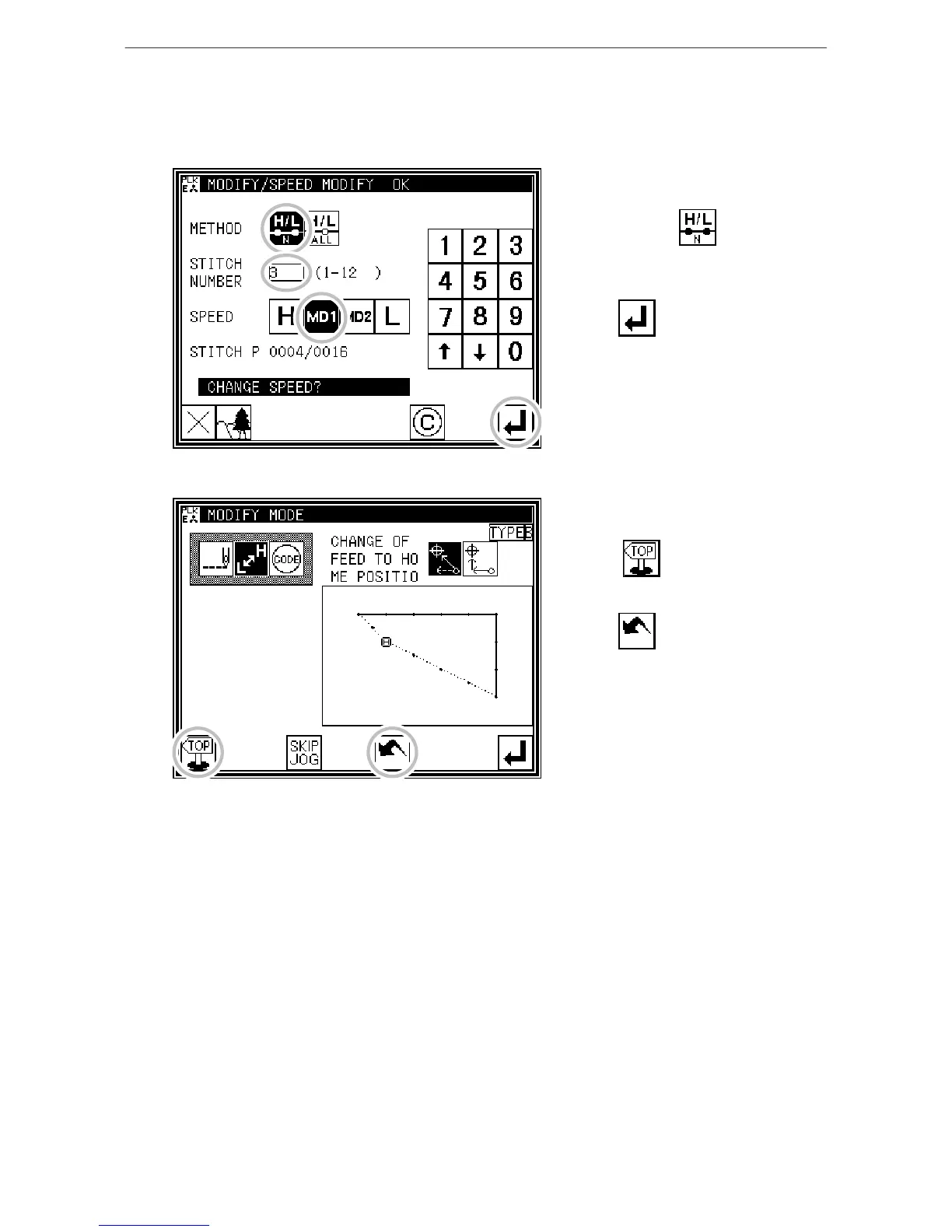

3. Setting the modification method and speed



* Press N Stitches Change After

Modified Stitch . Set the number

of stitches to be changed (3) and the

new speed (MD1).



* Press .



(The stitching speed will be modified.)



4. Confirming the modifications



* Quit the modification mode.



Press to return to the Standard

screen.



(When is pressed,

the modifications executed last will be

undone.)


