[12]-10

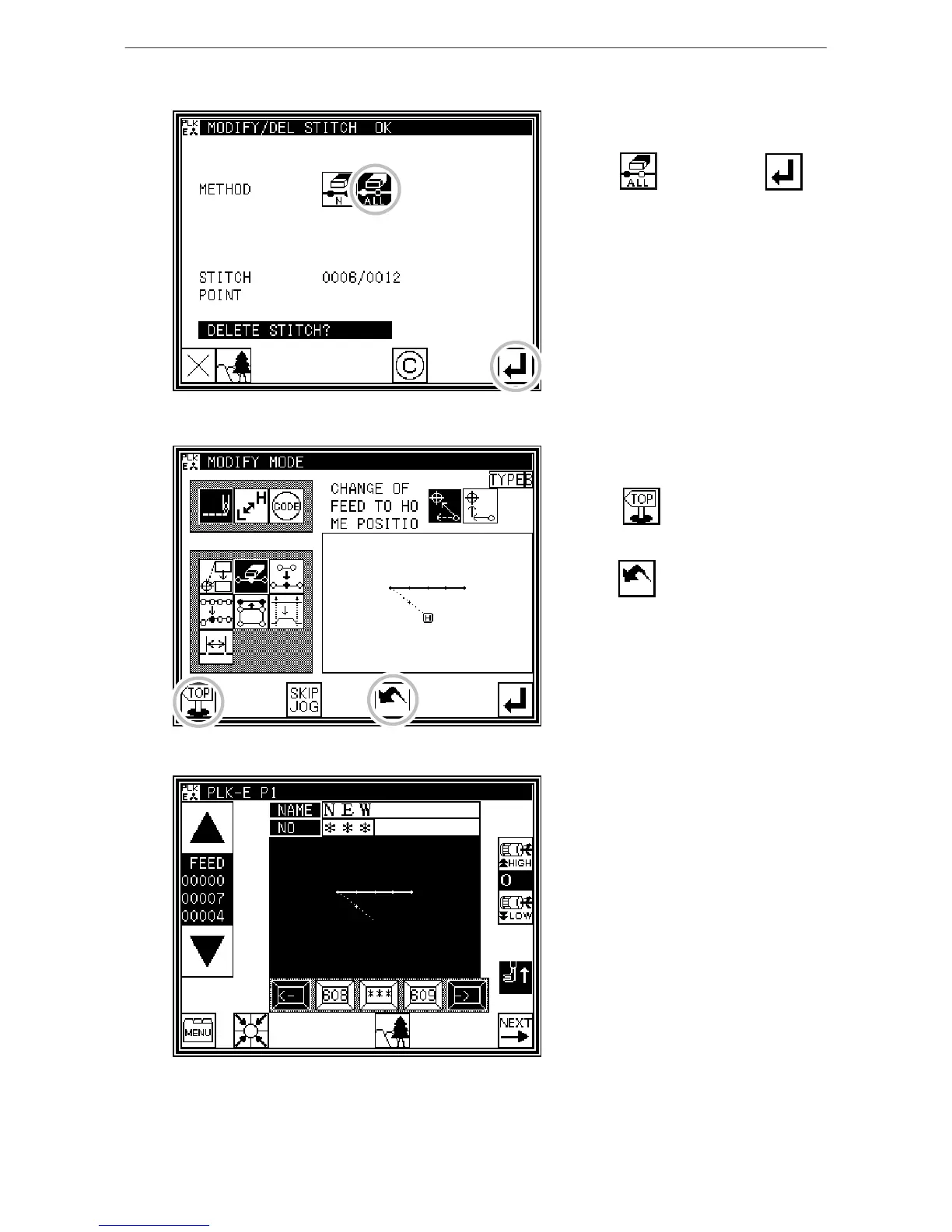

3. Setting the deletion method



* Press All After Designated

Stitch , and then press .



(All the data below the specified position

will be deleted.)



4. Confirming after stitch deletion



* Quit the modification mode.



Press to return to the Standard

screen.



(When is pressed,

the modifications executed last will be

undone.)



5. Confirming with the Standard screen



* The stitches have been deleted.


