Mitsubishi SCM80ZA User Manual

67

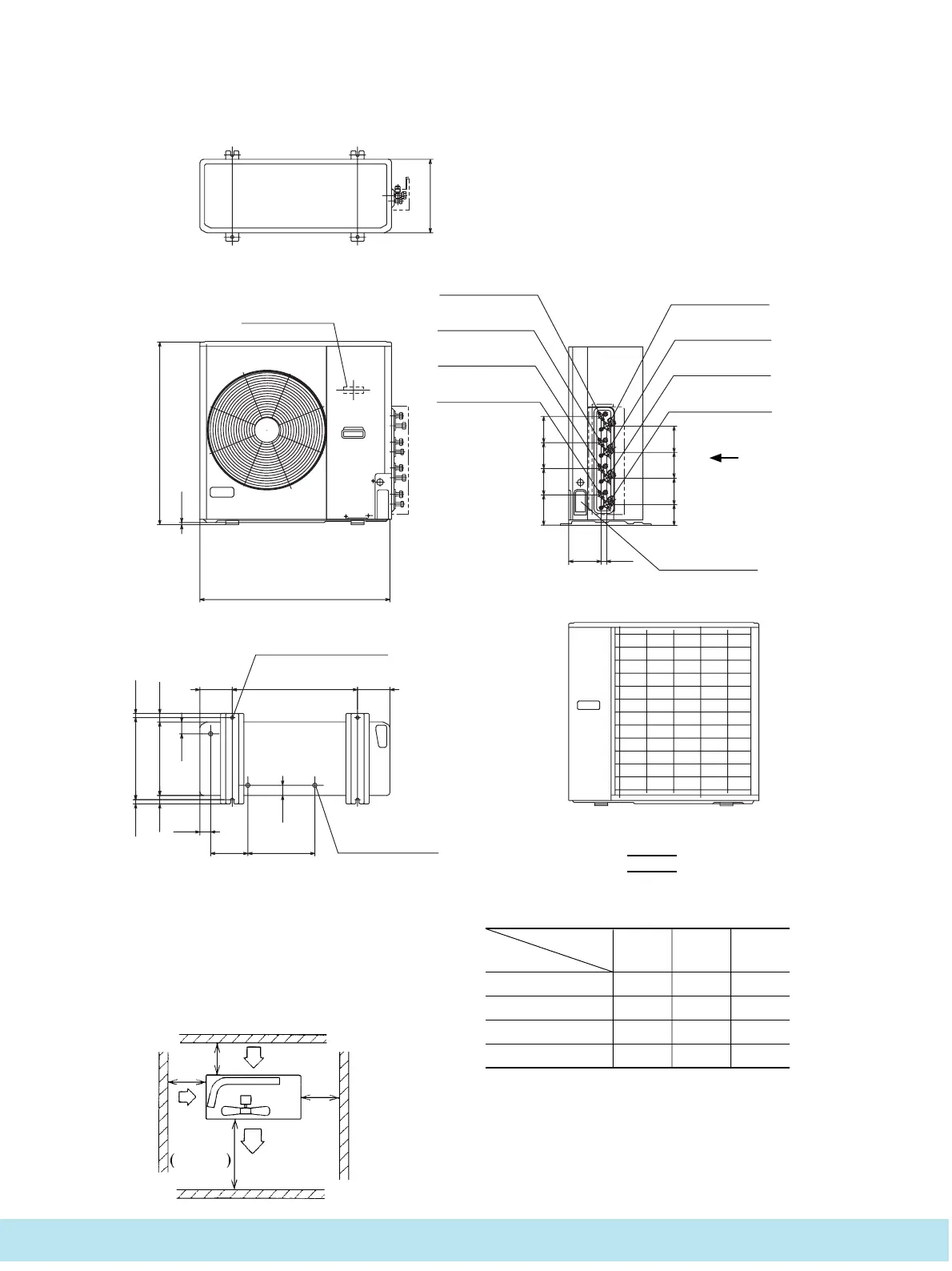

(2) Outdoor unit
Model SCM80ZA
L 2
L 3
L 4
L 1
Air
inlet
Air inlet
Air outlet
Maintenance
space
Required space for maintenance and air flow Minimum allowable space to the obstacles
Unit:mm
Mark
123
L1 Open Open 500
L2 300 50 Open
L3 100 150 100
L4 200 200 200
Installation type
Notes
(1) Avoid the location where four sides are entirely
surrounded by walls.
(2) Fix the unit by anchor bolts without fail. Restrict the
protrusion length of anchor bolt to 15 mm and under.
(3) When strong wind blows against the unit, direct the
discharge port at a right angle to the wind direction.
(4) Secure the space of 1 m and over at the top of unit.
(5) Make the height of obstruction wall in front of discharge
port lower than the height of unit.
Terminal block
Holes for drain
(Ø9.52 x 3pcs.)
Holes for anchor bolt
(M10 x 4pcs.)
Opening for
electric wiring
Service valve
(Gas Ø9.52)
Service valve
(Gas Ø12.7)
Service valve
(Gas Ø9.52)
Service valve
(Gas Ø12.7)
Service valve
(Liquid Ø6.35)
Service valve
(Liquid Ø6.35)
Service valve
(Liquid Ø6.35)
Service valve
(Liquid Ø6.35)
150 580 150
47
310222
40
40
20 380
340
55
40
20
145.2 26
138.9 120.1120.1 120.1
120.1120.1120.193.9
880
10
845
340
VIEW A
A
Unit: mm
