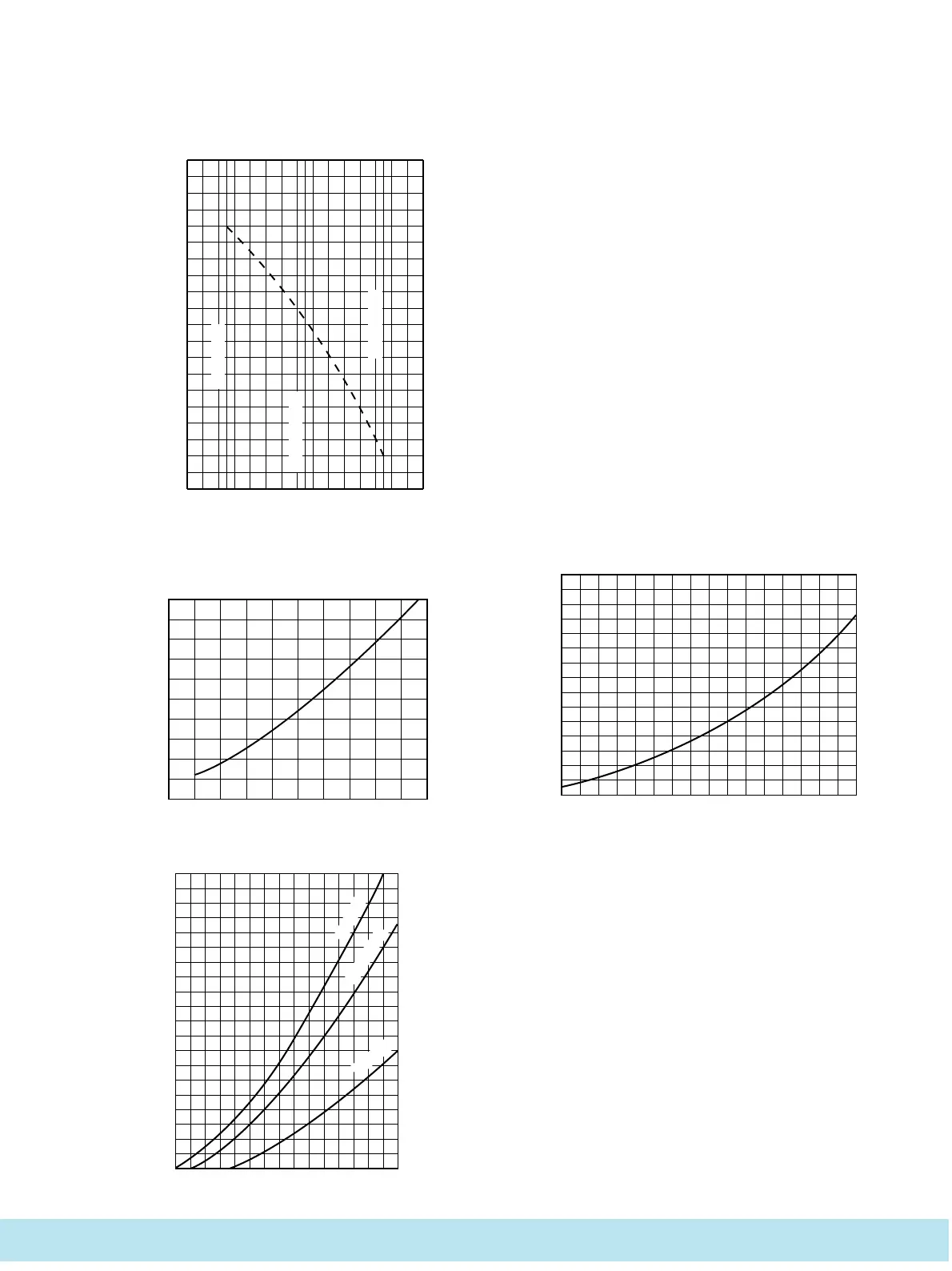

◆ Air flow and external static pressure characteristics (Heating: Hi)
SRRM40ZA
◆
Air outlet unit air flow and friction loss characteristics
● Air outlet unit (Part number: RTB12)
(Air outlet chamber + Air outlet panel)
◆
Air inlet grille air flow and friction loss characteristics
(Part number: RTS12)
◆ Flexible duct (ø 150) friction loss characteristics
123
Air flow (m
3
/min)
456
Pressure loss Pa (mm Aq)
50(5)
40(4)
20(2)
10(1)
30(3)
Air flow (m
3
/min)
Pressure loss Pa (mm Aq)
2345678910
30(3)
20(2)
10(1)
0
11(1.1)
10(1.0)
9(0.9)
8(0.8)
7(0.7)
6(0.6)
5(0.5)
4(0.4)
3(0.3)
2(0.2)
1(0.1)
Air flow (m
3
/min)
Pressure loss Pa (mm Aq)
345678910
Straight line
90
°
bend
45
°
bend
Pressure loss for:
Straight line: per 1 meter
90° bend:
per 1 bend
45° bend:
Air flow (m
3
/min)
Static pressure Pa (mmAq)
8 9 10 11
Standard High
Standard Low
Standard Medium
60(6)
50(5)
40(4)
30(3)
20(2)
