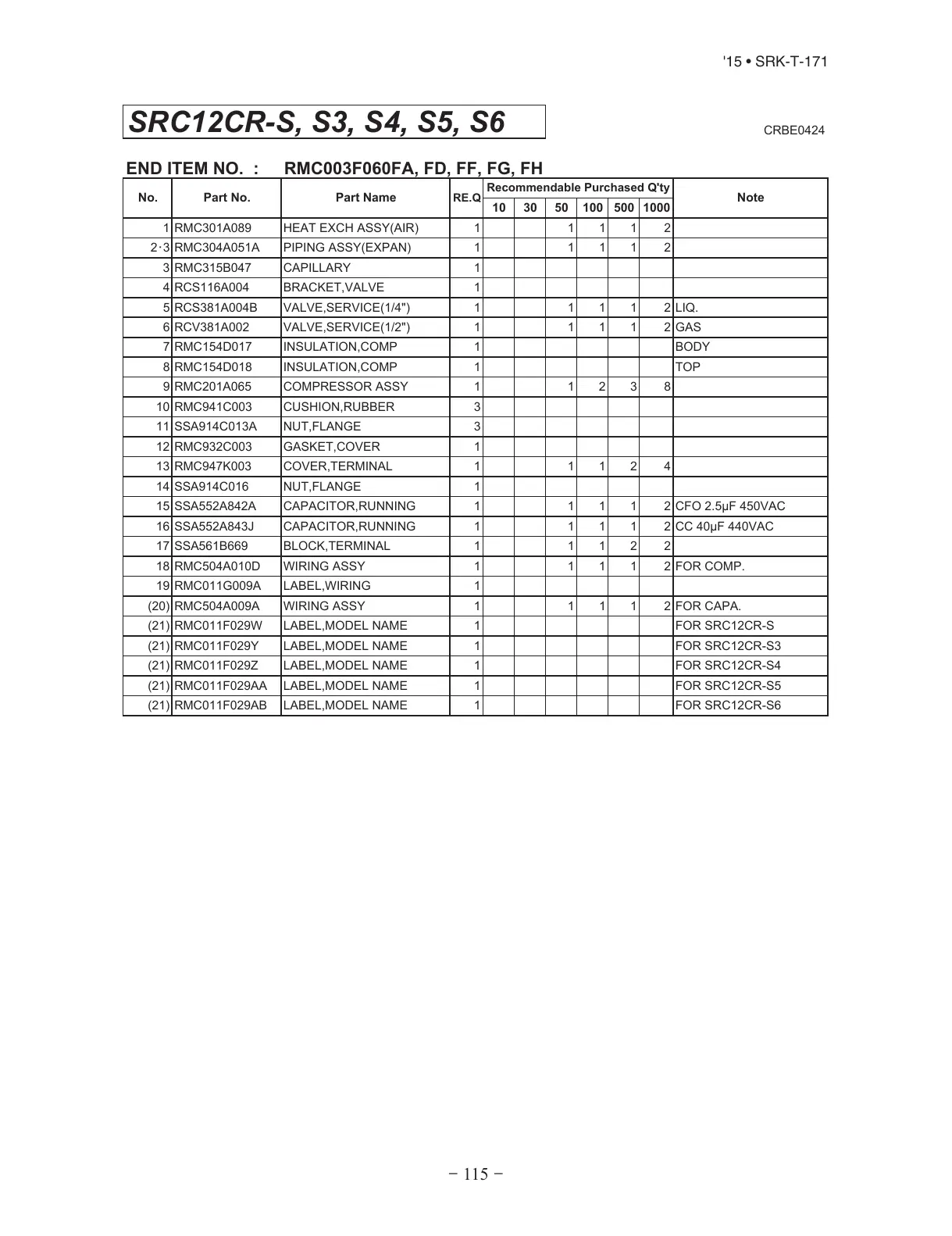

CRBE0424
END ITEM NO. : RMC003F060FA, FD, FF, FG, FH
10 30 50 100 500 1000
1 RMC301A089 HEAT EXCH ASSY(AIR) 1 1 1 1 2
2䡡3 RMC304A051A PIPING ASSY(EXPAN) 1 1 1 1 2
3 RMC315B047 CAPILLARY 1
4 RCS116A004 BRACKET,VALVE 1
5 RCS381A004B VALVE,SERVICE(1/4") 1 1 1 1 2 LIQ.
6 RCV381A002 VALVE,SERVICE(1/2") 1 1 1 1 2 GAS
7 RMC154D017 INSULATION,COMP 1 BODY
8 RMC154D018 INSULATION,COMP 1 TOP
9 RMC201A065 COMPRESSOR ASSY 1 1 2 3 8
10 RMC941C003 CUSHION,RUBBER 3
11 SSA914C013A NUT,FLANGE 3
12 RMC932C003 GASKET,COVER 1
13 RMC947K003 COVER,TERMINAL 1 1 1 2 4
14 SSA914C016 NUT,FLANGE 1
15 SSA552A842A CAPACITOR,RUNNING 1 1 1 1 2 CFO 2.5ȝF 450VAC
16 SSA552A843J CAPACITOR,RUNNING 1 1 1 1 2 CC 40ȝF 440VAC
17 SSA561B669 BLOCK,TERMINAL 1 1 1 2 2
18 RMC504A010D WIRING ASSY 1 1 1 1 2 FOR COMP.
19 RMC011G009A LABEL,WIRING 1
(20) RMC504A009A WIRING ASSY 1 1 1 1 2 FOR CAPA.
(21) RMC011F029W LABEL,MODEL NAME 1 FOR SRC12CR-S
(21) RMC011F029Y LABEL,MODEL NAME 1 FOR SRC12CR-S3
(21) RMC011F029Z LABEL,MODEL NAME 1 FOR SRC12CR-S4
(21) RMC011F029AA LABEL,MODEL NAME 1 FOR SRC12CR-S5
(21) RMC011F029AB LABEL,MODEL NAME 1 FOR SRC12CR-S6
NoteNo. Part No. Part Name
RE.Q
Recommendable Purchased Q'ty
