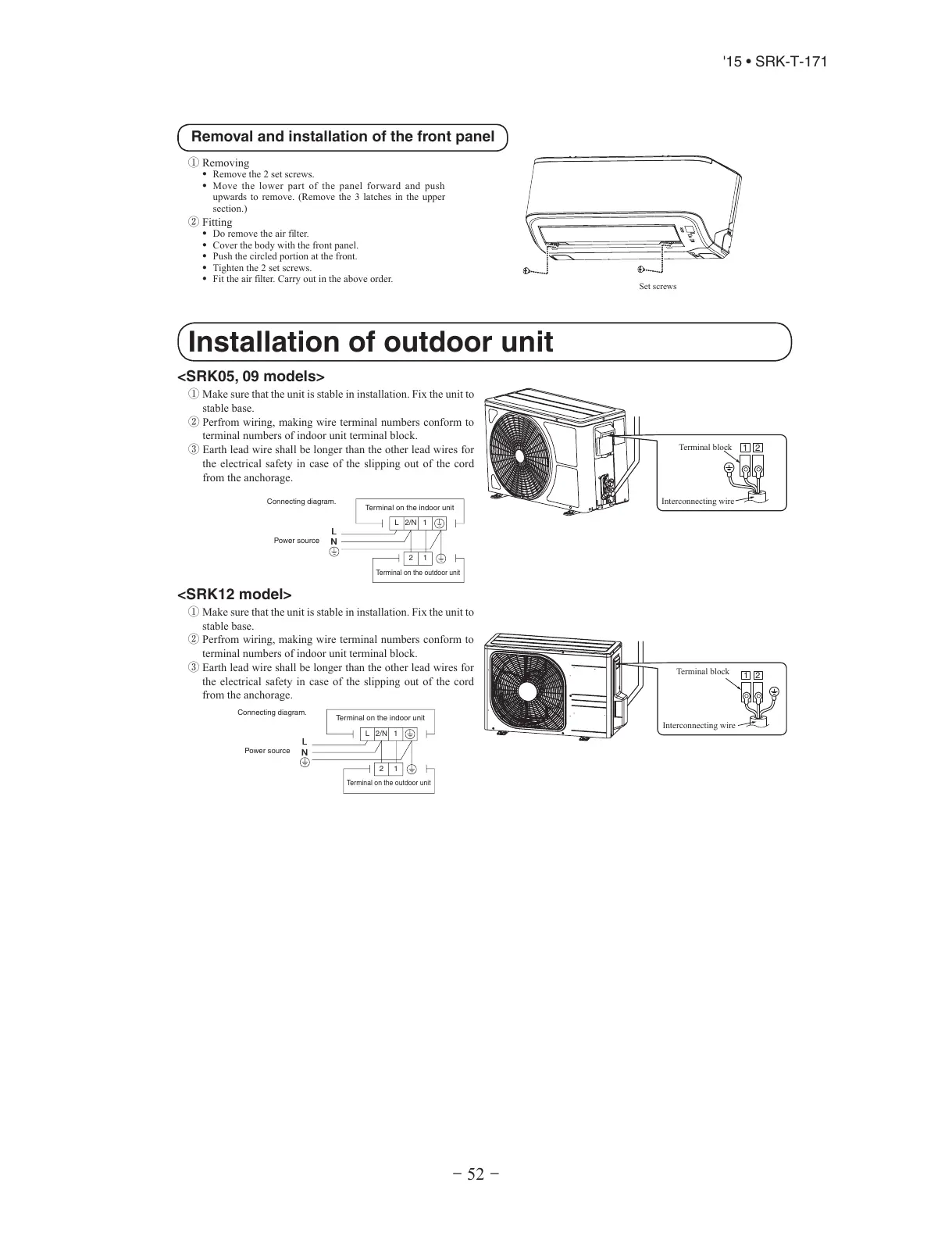

Removal and installation of the front panel
Set screws
① Removing
• Remove the 2 set screws.
• Move the lower part of the panel forward and push
upwards to remove. (Remove the 3 latches in the upper
section.)
② Fitting
• Do remove the air filter.
• Cover the body with the front panel.
• Push the circled portion at the front.
• Tighten the 2 set screws.
• Fit the air filter. Carry out in the above order.
Installation of outdoor unit
① Make sure that the unit is stable in installation. Fix the unit to
stable base.
② Perfrom wiring, making wire terminal numbers conform to
terminal numbers of indoor unit terminal block.
③ Earth lead wire shall be longer than the other lead wires for
the electrical safety in case of the slipping out of the cord
from the anchorage.
Terminal block
Interconnecting wire
<SRK12 model>
① Make sure that the unit is stable in installation. Fix the unit to
stable base.
② Perfrom wiring, making wire terminal numbers conform to
terminal numbers of indoor unit terminal block.
③ Earth lead wire shall be longer than the other lead wires for
the electrical safety in case of the slipping out of the cord
from the anchorage.
1 2
Terminal block
Interconnecting wire
L
N
Connecting diagram.
Power source
Terminal on the indoor unit
L 2/N
2
N
L
1
1
Terminal on the outdoor unit
L
N
Connecting diagram.
Power source
Terminal on the indoor unit
L 2/N
2
N
L
1
1
Terminal on the outdoor unit
<SRK05, 09 models>
